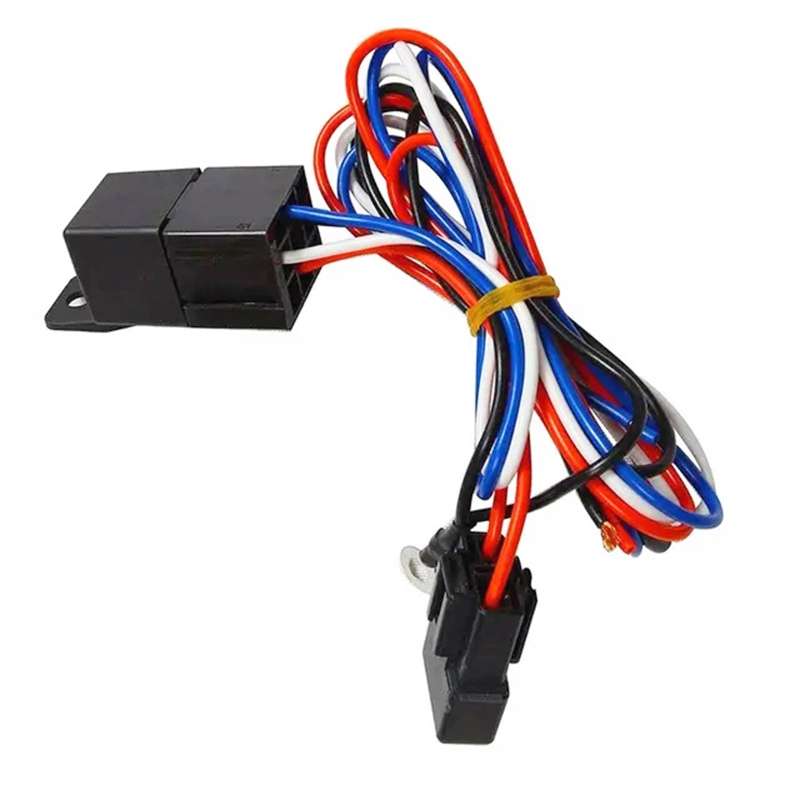

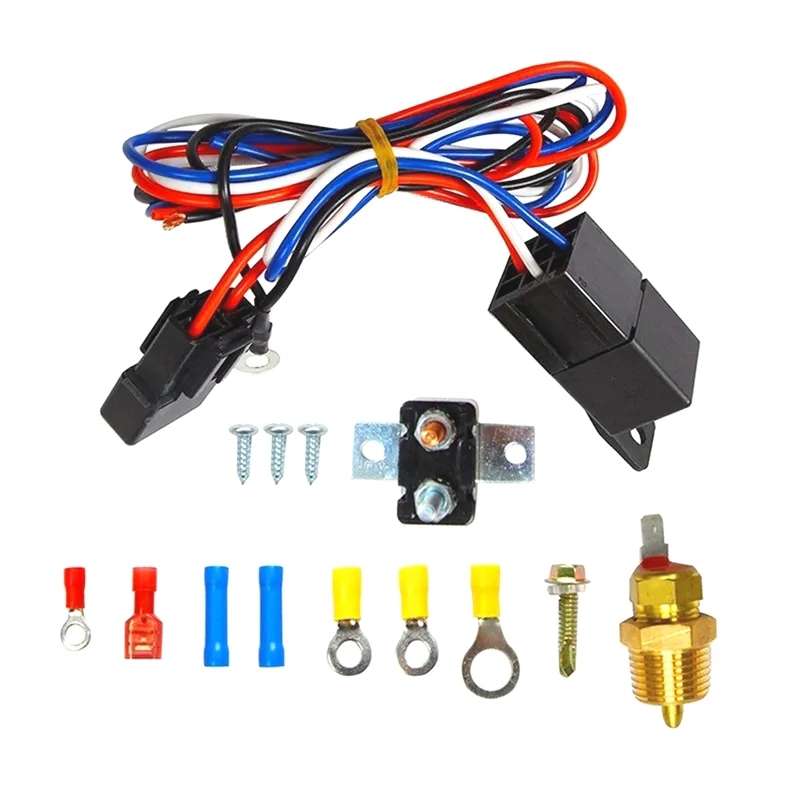

Car 12V 40A 175-185 Degree Electric Cooling Fan Thermostat Temperature Sensor Switch Set

1. Voltage: 12V
2. Material: plastic and metal
3. Cable length: about 0.9 meters
4. Fit for 265 283 305 307 327 350 383 400 396 402 427 454 472 502 260 289 302 351W 347 352 360 390 Engine / 406 427 428 429 460 351C 351M 400M 273 318 340 360 361 383 400 413 426W 440 455 330 326 Engine
5. Current: 40A
6. Note:

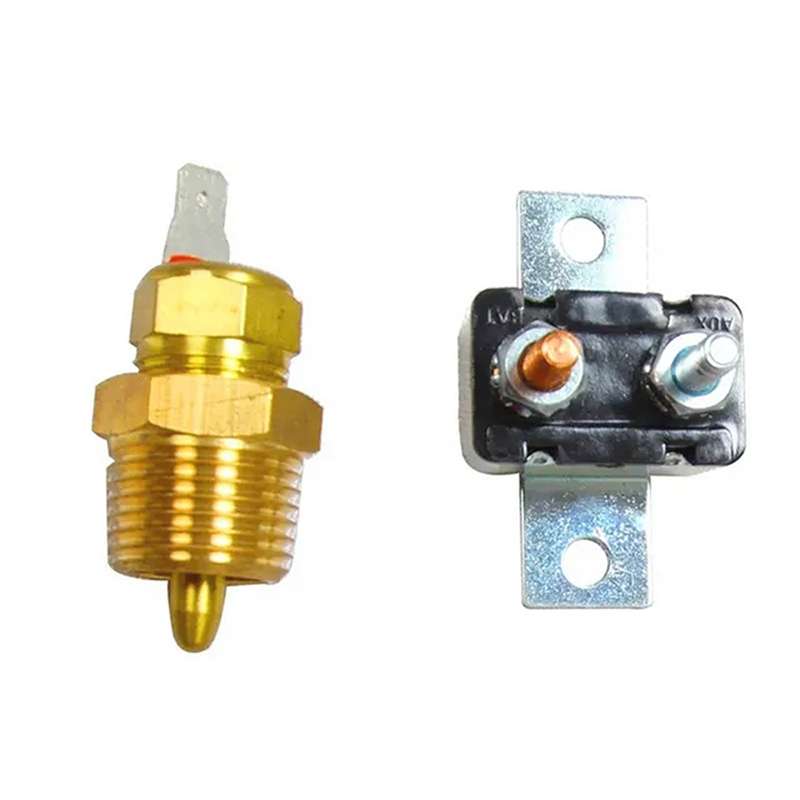

- Do not use teflon tape or strings on thermostats or adapters. In order to operate correctly, the thermostat must grind the threads to the engine, and the engine must be grounded to ground.
- Install the thermostat into the header or into the intake manifold. Connect the black wire to the thermostat, cut to length. Crimp the red terminal over the black wire and connect to the thermostat.
- Connect the red wire to the fan + terminal or the power wire from the print to the of fan motor.
- Install the circuit breaker in a convenient location as close as possible to the power source (battery or large terminal on the starter electric) for the fan relay.

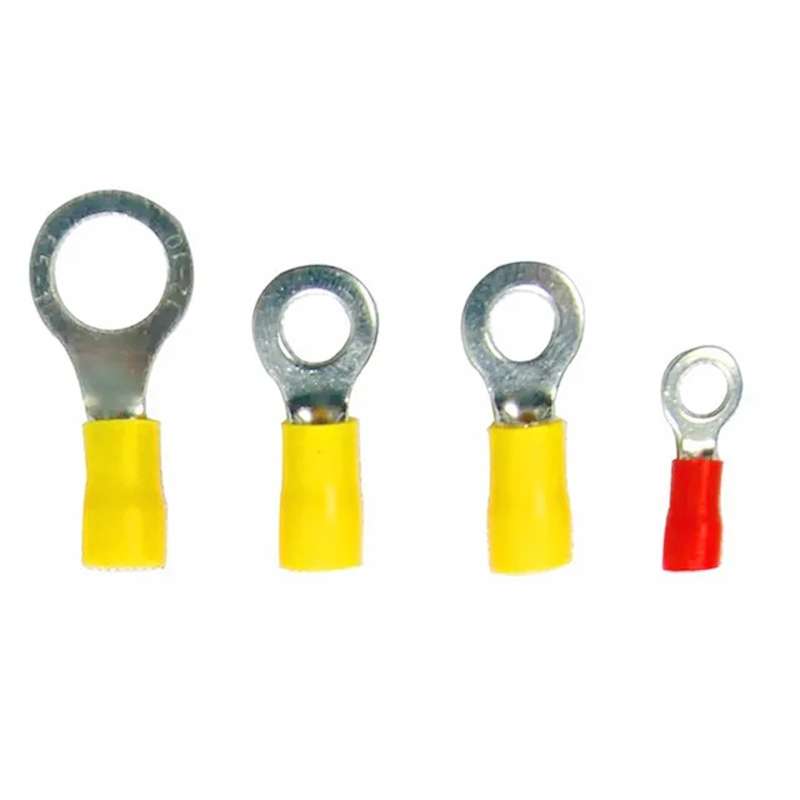

- Use the small yellow loop end to cut to length and install. Using the other small yellow ring terminal, you can take the remaining red wire and connect the unused post on the circuit breaker to the battery source.
- Connect the brown wire to the ignition switch or the fan switch, whichever is more convenient.


CAR2232
