Car DVD VCD CD USB SD MMC WMA MP3 Player with Bluetooth - 8306 - 2Gen

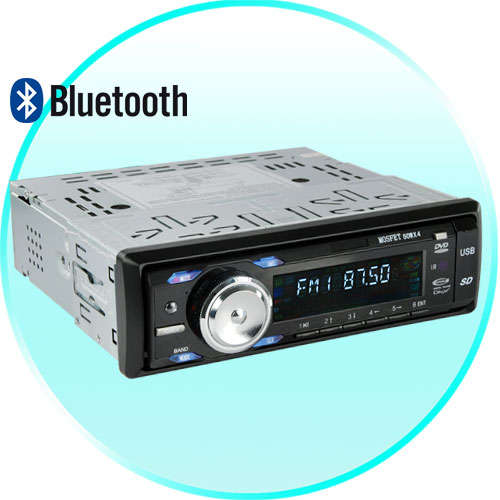

Car DVD VCD CD USB SD MMC WMA MP3 Player with Bluetooth

Car DVD VCD CD USB SD MMC WMA MP3 Player with Bluetooth. This one device has everything you need to keep you and your passengers entertained for short drives across town or cross-country trips.

Supporting a wide range of discs and file formats, this 1-DIN multimedia center is great for enjoying all your favorite music and videos while you drive. Pop in your burned CD-RW/DVD-RW discs or USB/SD/MMC memory cards to play your favorite songs. If you ever run out of your own media files, you can always use the high quality CD player and AM/FM radio tuner.

Pair your Bluetooth-capable cell phone with this multimedia center to enjoy the added convenience of handsfree calling. Your phone's audio is routed to your car's speakers, while you speak through the media center's built-in microphone.

With no pre-installed screen, the DVD player function gives you the freedom to choose a monitor that is the right size for you and install it anywhere you want in your car. Go ahead and buy a big screen monitor, install it behind the driver's area, and give everyone a safer, more enjoyable ride.

At a Glance...

• Car DVD VCD CD USB SD MMC WMA MP3 Player with Bluetooth
• Supports a wide range of multimedia discs and file types
• AV TV-Out to connect easily to monitor
• Absence of a built-in monitor lets you install the monitor you want, where you want it
• Bluetooth handsfree calling for your safety and convenience

Manufacturer Specifications:

• Primary Function: Car DVD VCD CD USB SD MMC WMA MP3 Player with Bluetooth
• Discs: DVD, CD, VCD, CD-RW, DVD-RW
• Formats Played:
  - Video Formats: AVI, MPEG
  - Audio Formats: MP3, WMA
  -Picture Format: JPG
• Operation: On board buttons or remote control
• Display Information
  - Aspect Ratio: 16:9, 4:3
  - TV Systems: PAL, NTSC, AUTO
  - Video: S-Video, Interlace-YUV, TV-RGB, P-Scan YPBPR, PC-VGA
• Languages
  - OSD Languages: English, Spanish, German, French, German, Portuguese, Simplified Chinese
  - Audio Language and Subtitle Language: Subject to DVD or other media file
  - Menu Languages: English, Spanish, French, German, Portuguese, Japanese, Simplified Chinese
• Audio Out: SPDIF/OFF, SPDIF/RAW, SPDIF/PCM
• Display Settings: Brightness, Contrast, Hue, Saturation, Sharpness
• Digital Setup: OP Mode, Dynamic Range, Dual Mono
• Audio Information:
  - Max Audio Output: 50W x 4
  - User adjustable EQ, Bass, Treble, Fade and Balance
• Front Panel Controls:
  - Power ON/OFF
  - Mode Change Select
  - Open/Close Panel
  - Eject Button (Head Unit)
  - DVD/CD Eject

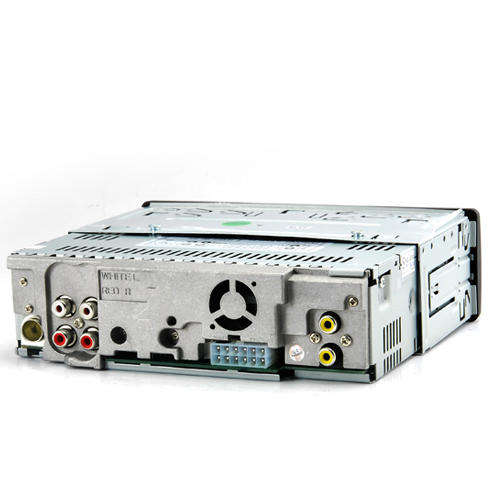

• Media Inputs / Outputs:
  - DVD/CD disc slot

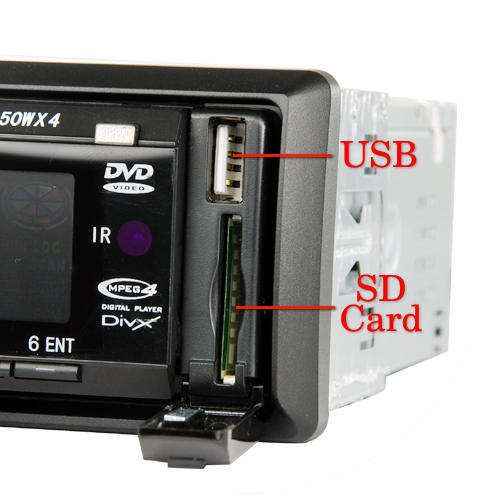

  - USB slot (front)
  - SD card slot (front)
  - AV Out (rear)
• Bluetooth Functionality: Yes
• AM/FM Tuner:
  - AM Frequency Range: 530~1710KHz (worldwide)
  - FM Tuning Range: 87.50~108.0MHz (worldwide)
• Cables/Wires:
  - TV Out
  - Power Lead
  - Front Right Speaker Out
  - Front Left Speaker Out
  - Rear Right Speaker Out
  - Rear Left Speaker Out
  - Antenna

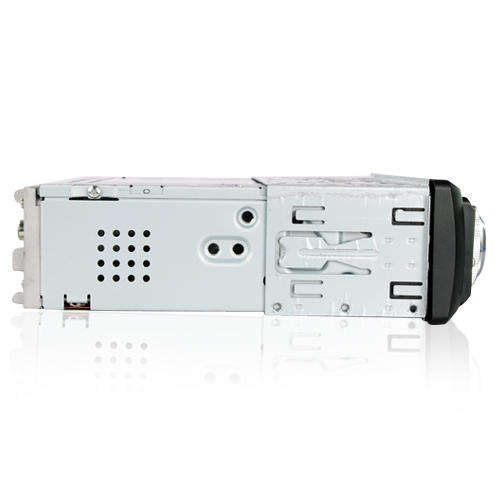

• Dimensions: L:165 x W:190 x H:50 (mm): Length with front panel = 185mm

Product Notes:

• When using SD/MMC cards or USB keys, for best results, put all your media files in the root folder of the memory card. This lets the multimedia center begin playing your files as soon as you plug them in
• This multimedia center does not come with a screen. It connects to any screen or monitor with standard AV-In connection (red, white, yellow).
• Installs quickly and easily into any standard 1-DIN space
• The USB port is a great way to hook up your flash drive with your car entertainment center to play your MP3 files through your car's stereo speakers
• The installation of this Car Audio Entertainment System should only be performed or supervised by a professional.

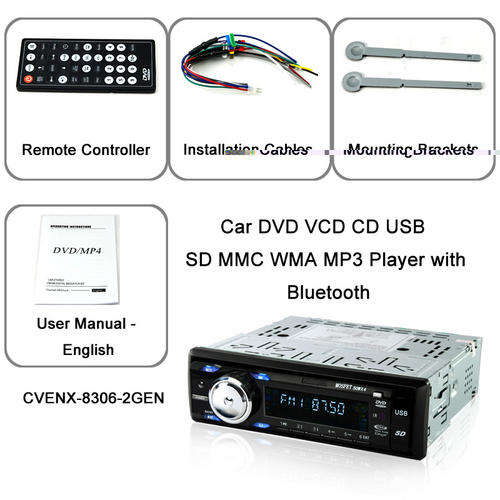

Package Contents:

• Car Multimedia Player
• Detachable headset with case
• Mounting brackets
• Remote controller
• Installation cables/leads
• User Manual - English

Frequently Asked Question:

• How do I play my own music and video files with this car DVD player?
  Just load your files on to a USB stick or an SD memory card and plug it into the appropriate slot on the front of the device. The unit will detect and play your files automatically. You can use the remote control to skip through files.
• Is the face plate removable?
  No. The face plate flips down to load discs more easily, but it can not be removed.
• What kind of screen does this DVD player come with?
  Please note carefully, this DVD player does not come with a screen. It is only a DVD and multimedia player. It can connect to a monitor, which must be purchased separately. This means you can buy a big screen for your car and install in anywhere you want.
