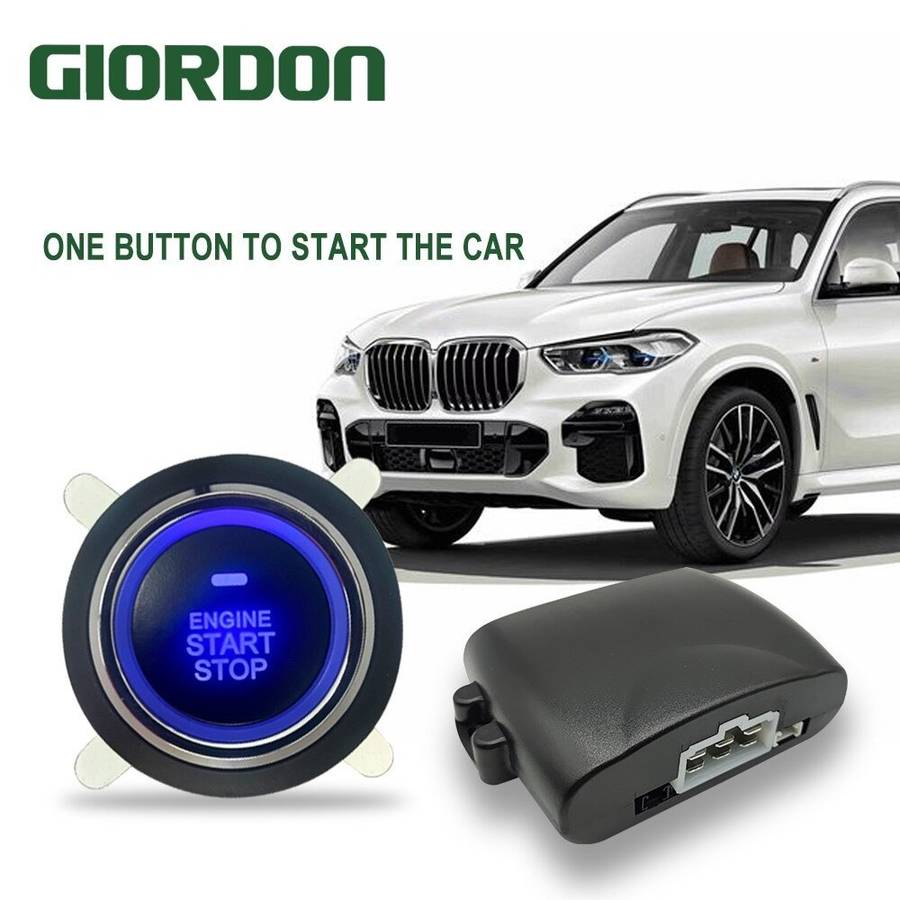

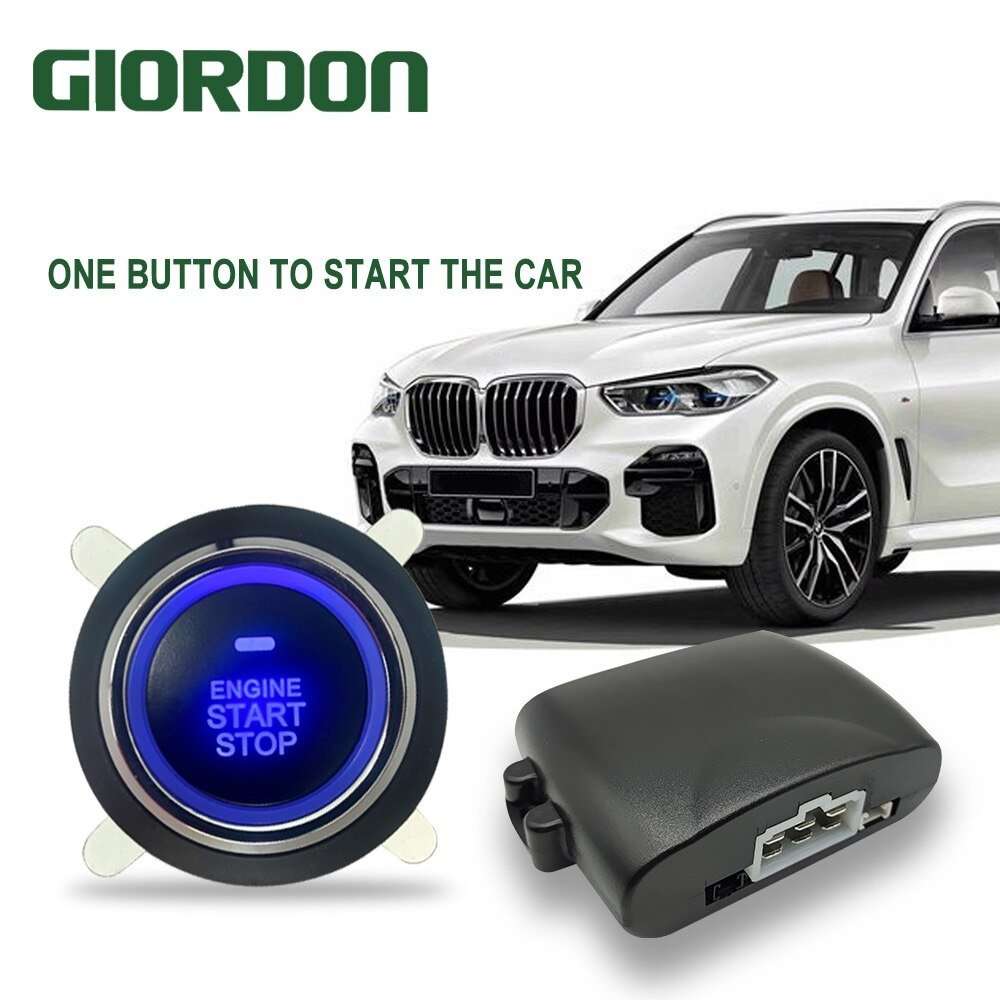

Car Engine Start Button - Keyless Entry System

One button which is simple and convenient for operating
10 minutes countdown stop the car
Universal for most of 12V cars on the market, easy to install
Thick 6-pin start plug can assure the stability of current output

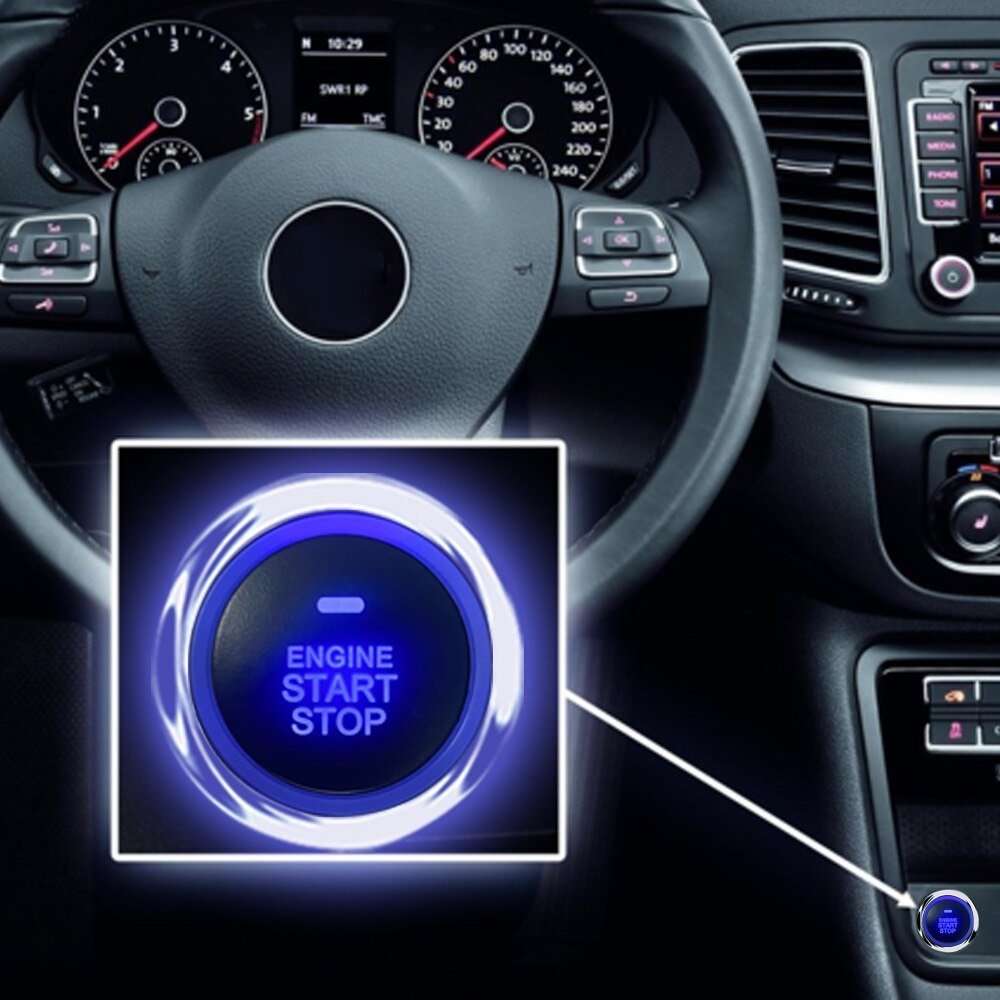

One push button to start / stop the engine
With hand brake testing interface
Can start or stop car much easier and keep safe at the same time

Material: Fire protection ABS

Color: black

Type: Remote central locking

Type of Remote Control:Without LCD Remote Control

Voltage: 12V

Current: 3A

Operating temperature: -10-70

Model Number: KQS-Q3A

Application: Suitable for 12 V universal auto car

Product Working Parameters:
Unlocking trigger mode can choose within the host
Shut the output mode can choose within the host

6-pin Start Plug Connecting:
Yellow wire means starting motor line
White wire means No. 1 file output line
Brown wire means No. 2 file output line
Blue wire means ACC output line
Red wire means battery 12 V line
Black means host grounding line

Attention:
The item does not have anti-theft function, but can be used with anti-theft device

Package Weight: 300g

Package Dimensions: 17cm x 5 x 14(L x W xH)

Package Include:

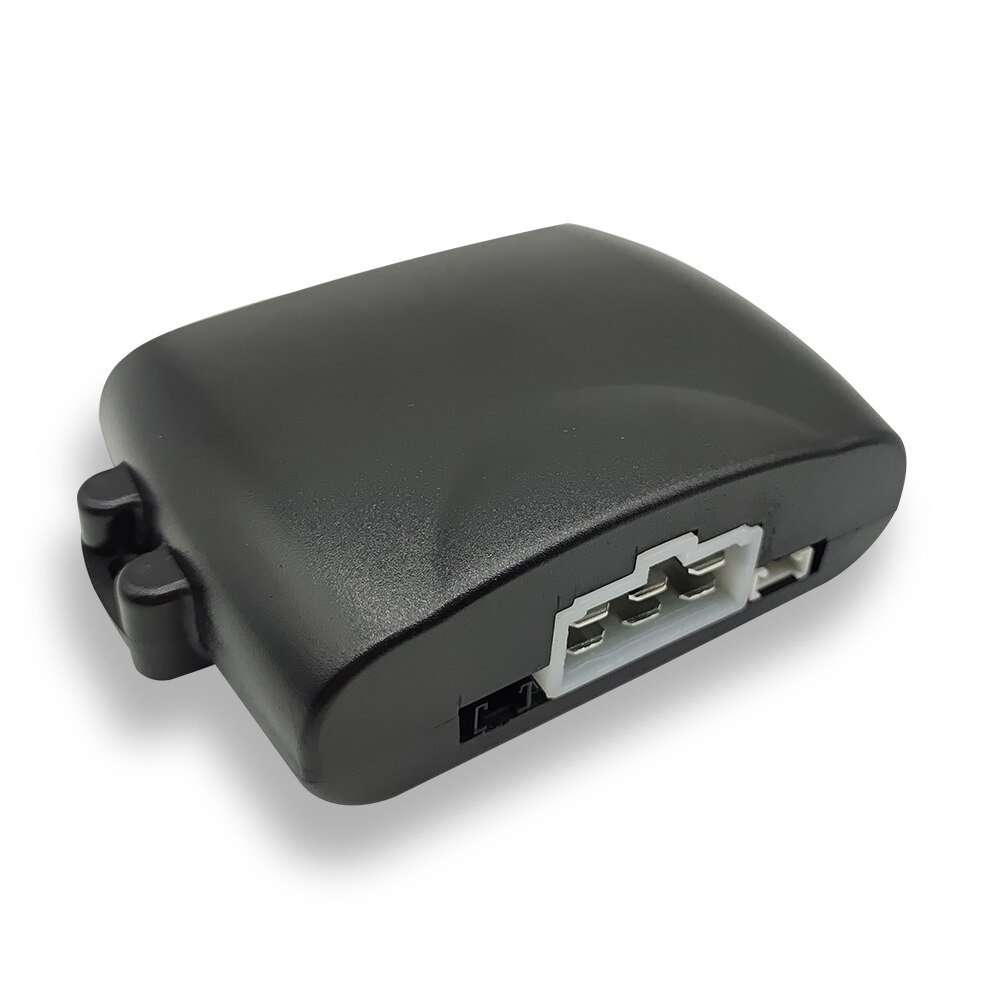

1 x Main Unit

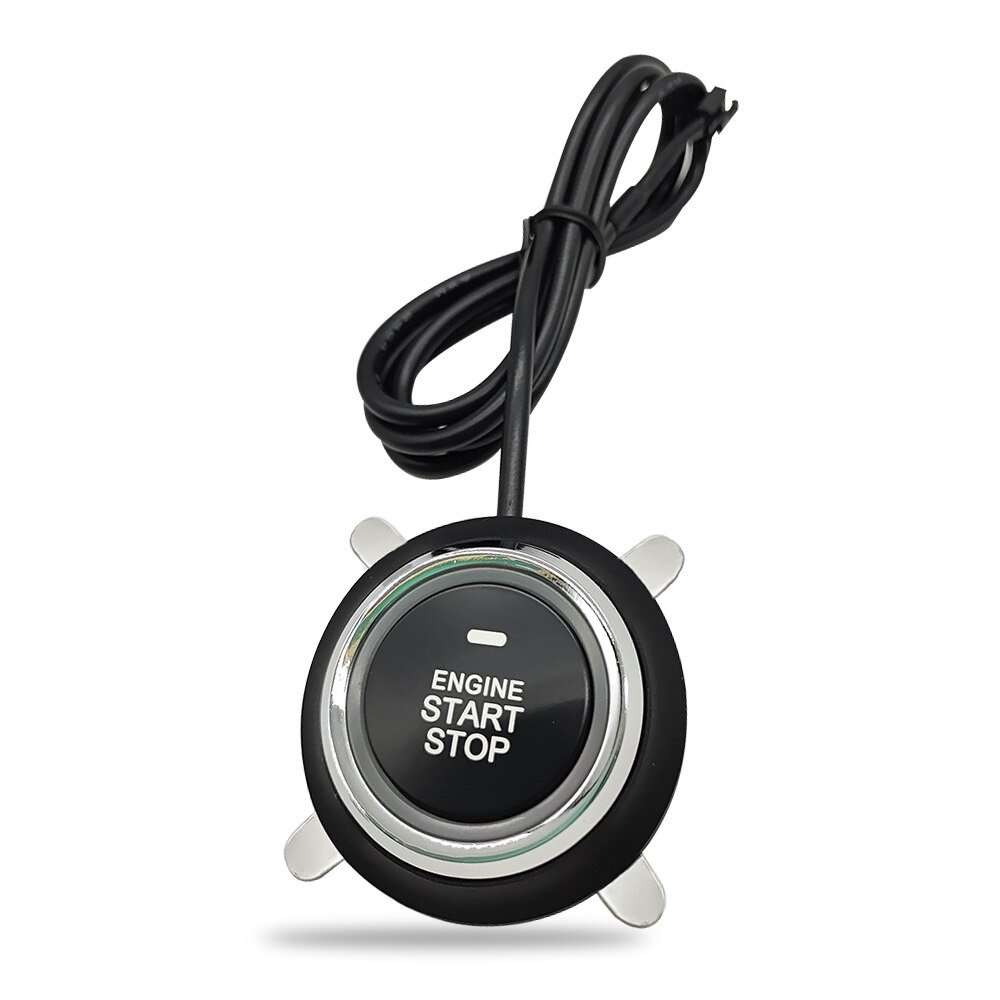

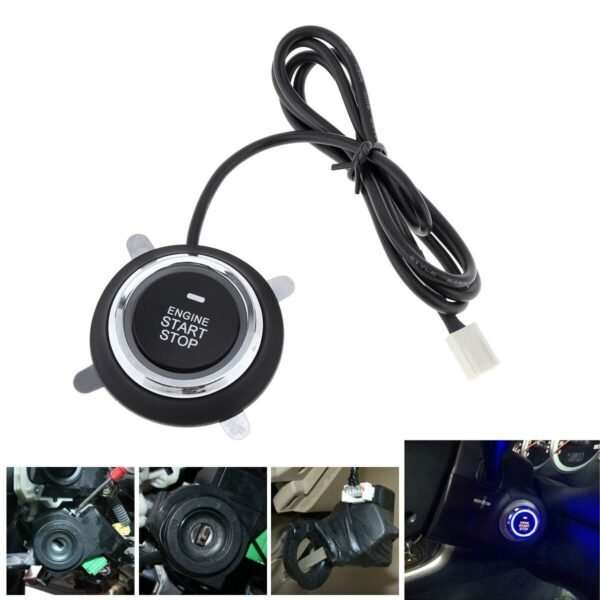

1 x Push Start Button

2 x Wire Harness

1 x User Manual
