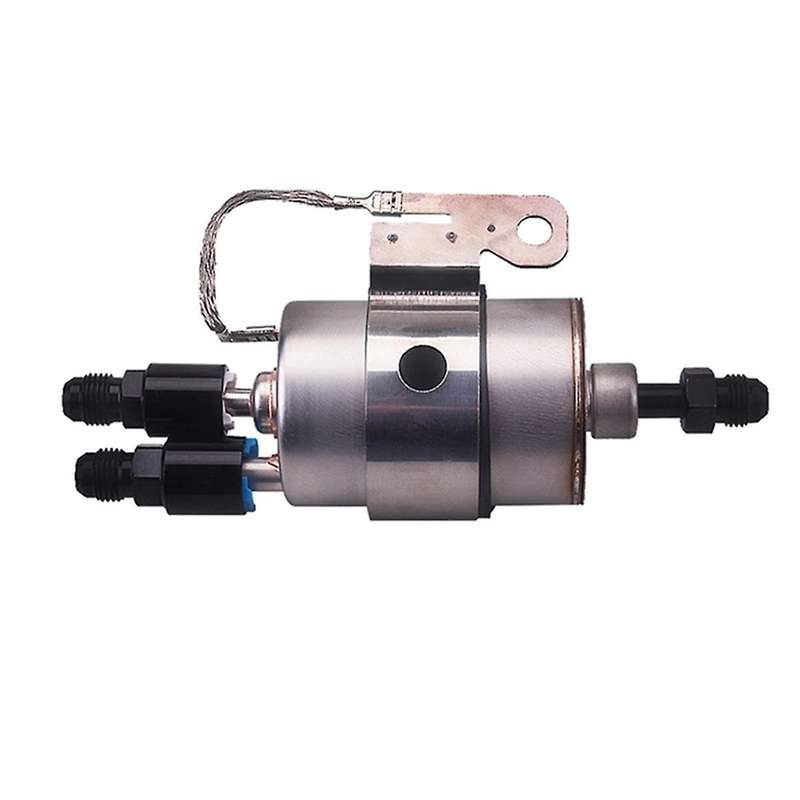

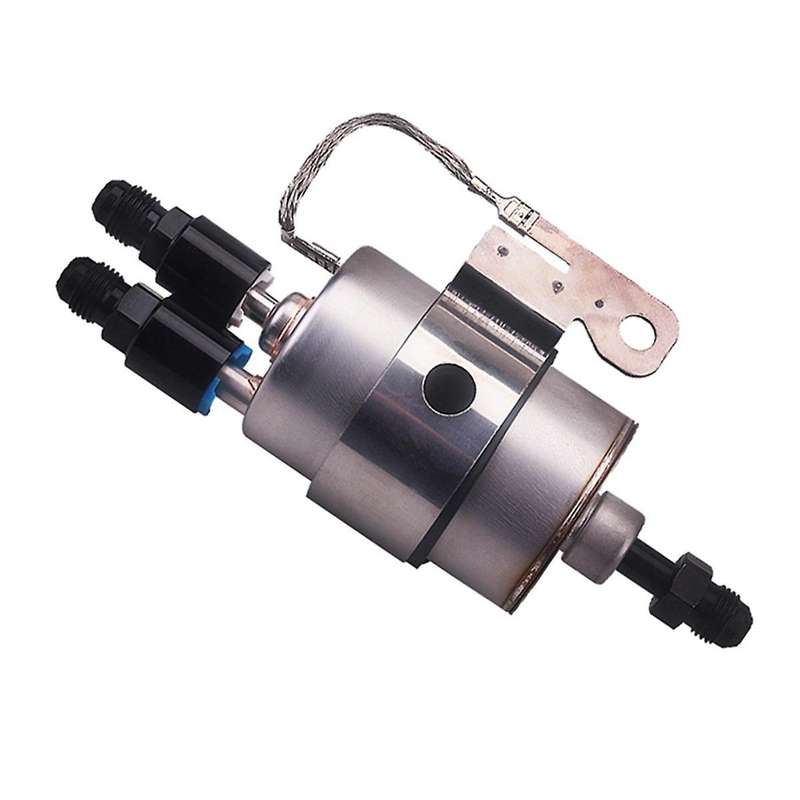

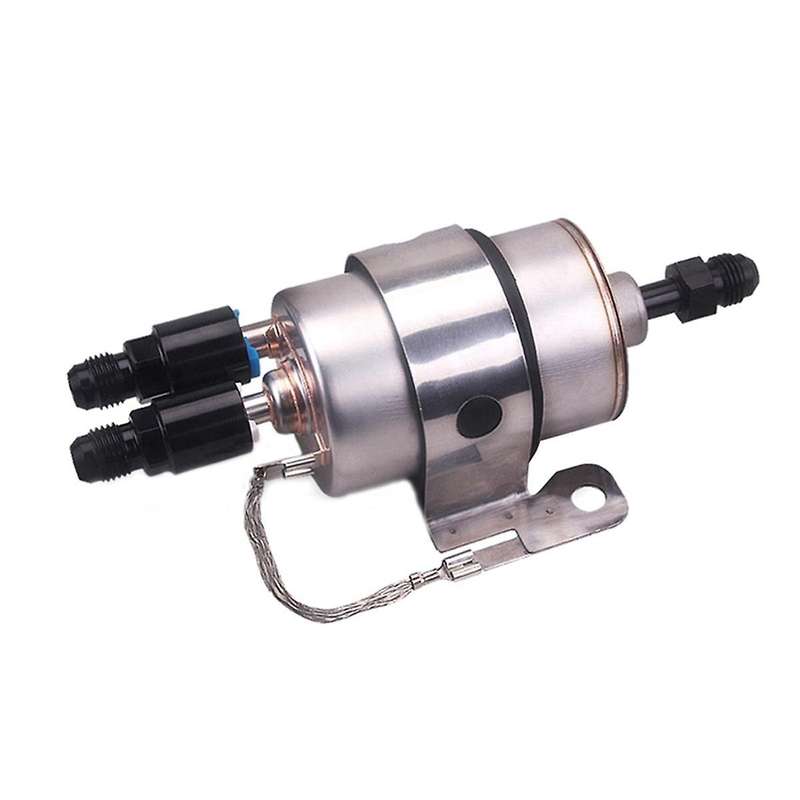

Car Fuel Pressure Filter Regulator Assembly for Swap C5 Lsx Swap Dgi 10299146

1. This filter\/regulator assembly is commonly used when adapting return style fuel systems for use with returnless applications. Popular for simplifying the fuel system for swaps or standalone EFI systems such as for \/ FiTech, or for FAST designed to operate on 58psi of static supply pressure.2. When mounted near the fuel tank this filter allows you to run a single fuel feed line to the engine and just a short return loop back to the tank. This is the correct filter\/regulator required for Swaps using returnless style fuel rails and also popular when doing popular for the TBSS\/NNBS Gen IV intake manifold swap.3. Using this filter\/regulator between the returnless style fuel rails and your return style fuel lines allows for a plug and play style conversion for retrofitting for TBSS\/NNBS intake manifolds onto 99-04 return style NBS (\/) truck and other applications.4. This fuel filter features an internal bypass that regulates fuel output pressure to 58psi. The filter features a 3\/8 male inlet, 5\/16 male return outlet, and a 3\/8 female supply outlet.5. This fitting combination makes for simple plumbing of fuel systems for Swaps and EFI conversions.Tip: The Filter\/Regulator is capable of flowing a maximum of 255LPH.Beyond that amount, there is the potential for fuel pressure creep as the flow rate can overwhelm the internal regulator.Name: Pressure RegulatorPressure Regulator: Oil Pressure RegulatorPart Number: 10299146, 33737, GF82219, 239926Support: 550-600HPFitment: Replacement for Gen IIIReplacement for Gen IV engines in 4.8, 5.3, 6.0 and 6.2Replacement for LS1, , LS3, L76, L98, L77, LY6, LFA, LZ1, LY2, L20, LH6, LS4, LSX, etc.Replacement for LSX swapReplacement for DGIReplacement for C5Material: Metalcolour: SilverPackage Contents: 1 x Fuel FilterOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
