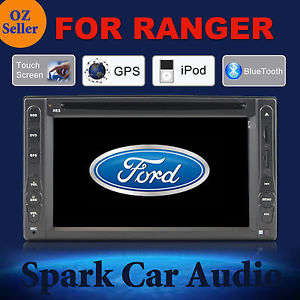

Ford Ranger Mazda BT-50 2006-2012 Car DVD GPS
with actual ZA Map

GPS

Operation System

Windows CE 6.0, can read 3D map

GPS Processor

MTK

Main Frequency

800MHZ

Store Space

128MB

Map Supported

IGO,Route66,TOMTOM etc

GPS Antenna

1 GPS antenna interface on the back

GPS Dual Zone

Yes,you can enjoy music and radio while navigation

Voice Guidance Cruise

Yes

Voice Guidance Language

Portuguese/Chinese/English/Japanese/Korean/Russian/German/French/Spanish/Polish

Mechanical Parameters

Form Factor

In-Dash

Enclosure Type

Two Din

Display

Display Mode

16:9

Screen Size

6.2 Inch

Touch Screen

Yes

Screen Resolution

800x480

Display Type

LCD-TFT

Brightness Control

Yes

Radio Parameters

Radio Response Bandwidth

AM:520-1700 Hz FM: 87-110 Hz

Station Preset Quantity

30

DVD Parameters

Video Output System

NTSC/PAL/SECUM

Media Type

DVD/VCD/CD/WMA/MP3/MP4(AVI)/CD-R/CD-RW/DVD-R/DVD-RW

Signal-To-Noise Ratio

85 dB

Amplifier Parameters

Form Factor

In dash unit integrated

Maximum Power Output

50 Watts x 4

EQ mode

Classic,Rock,Pop,Jazz

TV

Built-In TV Tuner

Digital Video Broadcasting

DVB-T or ISDB-T

TV System

PAL/NTSC/SECAM

Video System

Auto PAL/NTSC

TV Antenna

 1 TV antenna input on the back

Interface

A/V Input

2 Channel

A/V Output

4 Channel

Connector Type

1 x A/V IN

USB/SD Card Port

SD Port, USB Port

Remote Control

Infrared

Ipod Control Yes

Direct Connection Cable for Ipod Included Yes

Bluetooth

Version

V2.0,support AD2P(Bluetooth Stereo Music)

Can play stereo music through Bluetooth

Built-in microphone  Yes

Received Call Yes

Dialled Call Yes

Missed Call Yes

Working Parameters

Working Voltage

DC 11V~14V

Working Current

MAX 15A

Standby Current

<25 mA

Video System

Automatic PAL or NTSC

General

Dimensions / WxDxH

231*186*120mm

Power

12V DC

Operation temperature

-10-50 Centigrade

Storage temperature

-20~75Centigrade

Additional Features

Portable HDD Compatible Yes

Built-in Speaker Yes

Subwoofer Output Yes

Motorized slide-down Face No

Anti-Shock Yes
