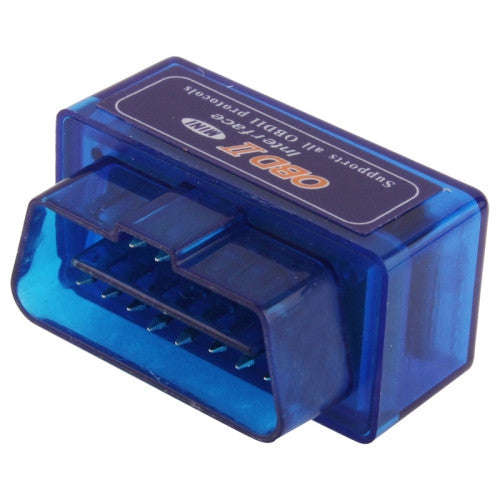

Car Mini OBDII ELM327B V1.5a Wireless Code Reader Scanner Support Android Phone Support OBDII-ISO...

1) Material: Plastic housing

2) Function: Read trouble codes / clear trouble codes / check the engine indicator (MIL) / display current sensor data / calculate fuel oil

3) Bluetooth: Yes

4) Bluetooth Transmit Range: 10 m

5) Diagnose Interface: 16pin

6) Language: English

7) Support all OBD II protocols

8) Application Supported: Windows smart phone / laptop

9) Smartphone Brand Supported: Smart phones

10) Software Platform Supported: Android / DOS / Windows

11) Protocols Supported: OBDII-ISO 9141-2 ISO 14230-4(KWP2000) CAN ISO-15765-4

12) Output Protocol: RS232

13) Baud Rate: 9600 / 38400bps

14) Indicator LEDs: No

15) Compatible Make: Cars support OBD II

16) Operating Voltage: 12 V

17) Working Current: 45mA

18) Other Features: Compatible with most vehicles: BMW / Seat / Ford / MINI / Jaguar / Mercedes / VW / Dodge / Acura / Suzuki / Honda / Toyota / Mazda / Mitsubishi / Nissan / Subaru / Land Rover / Chevy / Skoda / Infiniti / Kia / Hyundai / Audi / Saab / Opel / Citroen / Peugeot / Volvo / Fiat etc; Clear trouble codes and turn off the MIL ( inch Check Engine inch light); Display current sensor data including: Engine speed / load calculated value / coolant temperature / fuel system status / speed / short term fuel trim / long term fuel trim / intake manifold pipe pressure / Timing Advance / intake air temperature / air flow / Absolute throttle Position / oxygen sensor voltage / short term fuel trim / fuel system status / fuel pressure.

19) Packing List:

1 x Scanner

1 x CD

20) Size: 48mm (L) x 31mm (W) x 24mm(H)
