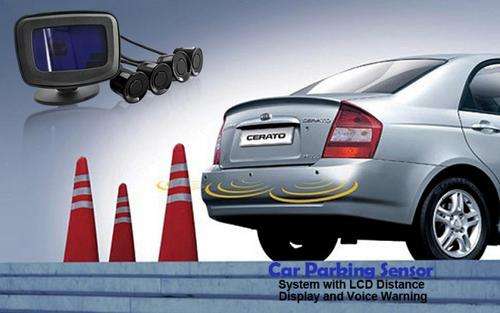

Car Parking Sensor System with LCD Distance Display and Voice Warning - CS56

The Car Parking Sensor System makes reverse maneuvering safe and easy. It is a complete kit that comes with 4 sensors that utilize cutting-edge ultrasonic detection technology to notify the driver of the distance and position of obstacles by means of a voice and LCD display.

This brilliant device uses ultrasonic technology to measure distance in real time and send an audible alert that increases in urgency as you come closer to an object. Along with a LCD distance display, you are sure to park your car with perfect precision every time. Between 1.5 and 0.3 meters, the screen shows the distance between your car and the detected obstacle while even informing you through a voice warning. Under 0.3m the word "stop" appears in red on the screen and the voice repeats "stop". This is the ideal safety device for backing up, parallel parking, garage parking, and parking in tight areas where the risk of damaging your car is much higher.

Manufacturer Specifications

Main function: reverse parking sensor
Alarming Volume: 80 db
Working Current: 165mA
Working Voltage: 10.6 - 15V
Detecting Distance: 1.5m - 0.2m
Voice warning: by 0.1 step
Voice warning selectable: ON/OFF
Working Temperature: -40 to +80 degrees Celsius
Dimensions - Sensor Hole diameter: 22.3mm
Dimensions - Display: 70mm x 50mm x 19mm
Dimensions - System Box: 114mm x 95mm x 28mm

Product Notes

Parking sensor will automatically start when the vehicle is reversing.
Important Note: This product should only be installed by a professional. Carefully review the product manual before installing and using the parking sensor system to achieve the most satisfying user experience.

Package Contents

Terminal
LCD display
Parking sensor x4
Car wiring harness
Hole saw 22.3mm
Instruction manual - English

Frequently Asked Questions

Will the reverse parking sensor work in my specific model of car?
Yes, it works with all models
