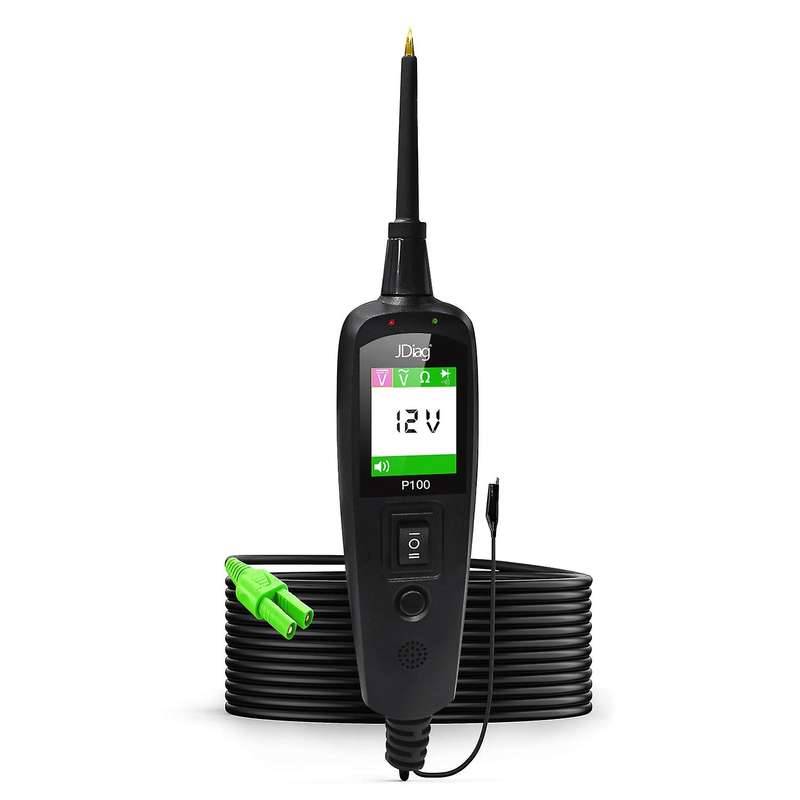

Car Power Test Electric Circuit Tester Automotive Diagnostic-Tool for Cars and Trucks P100

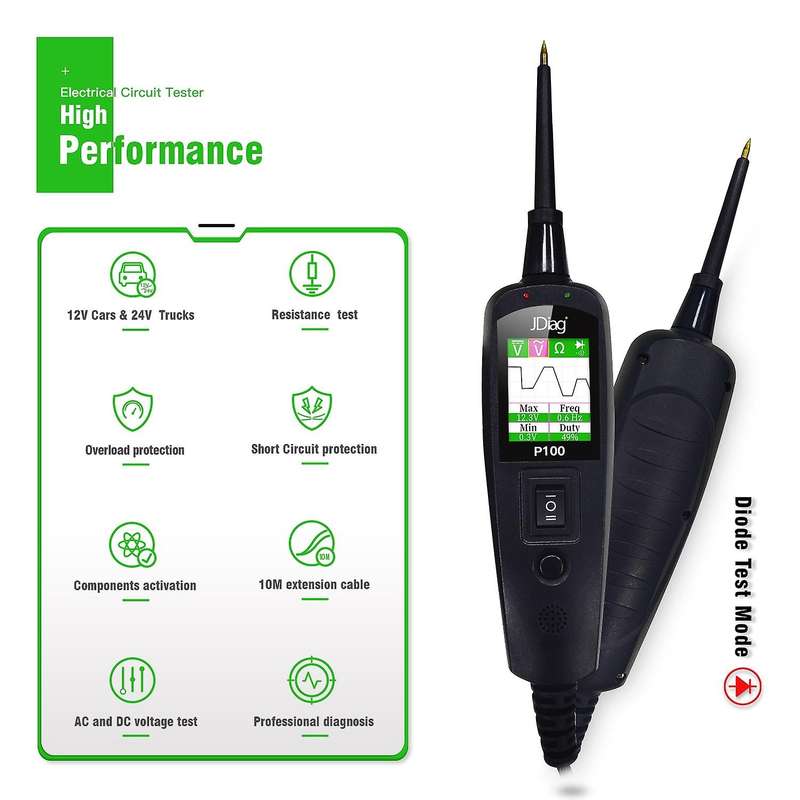

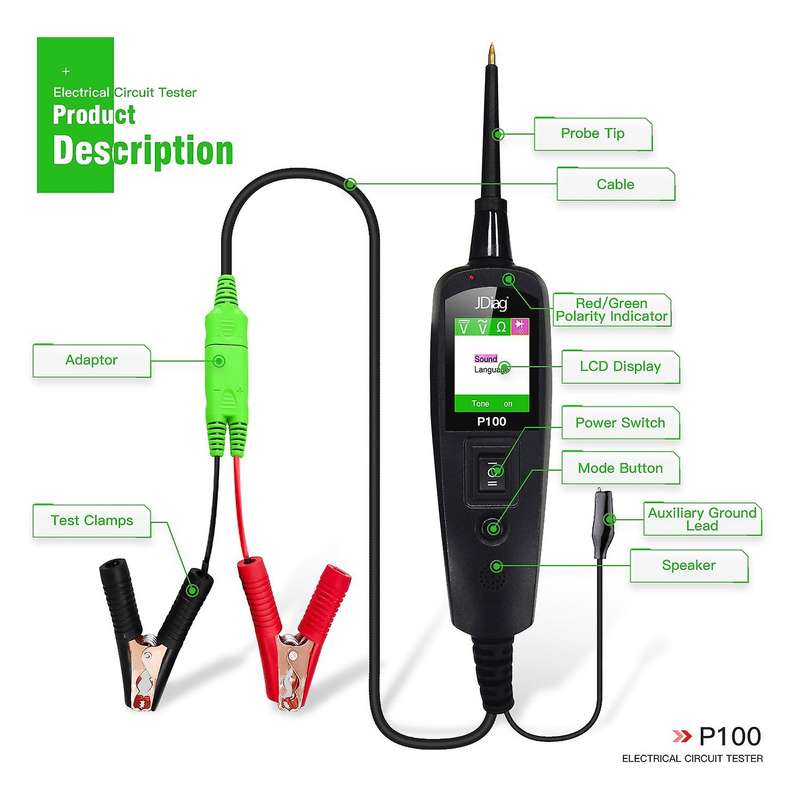

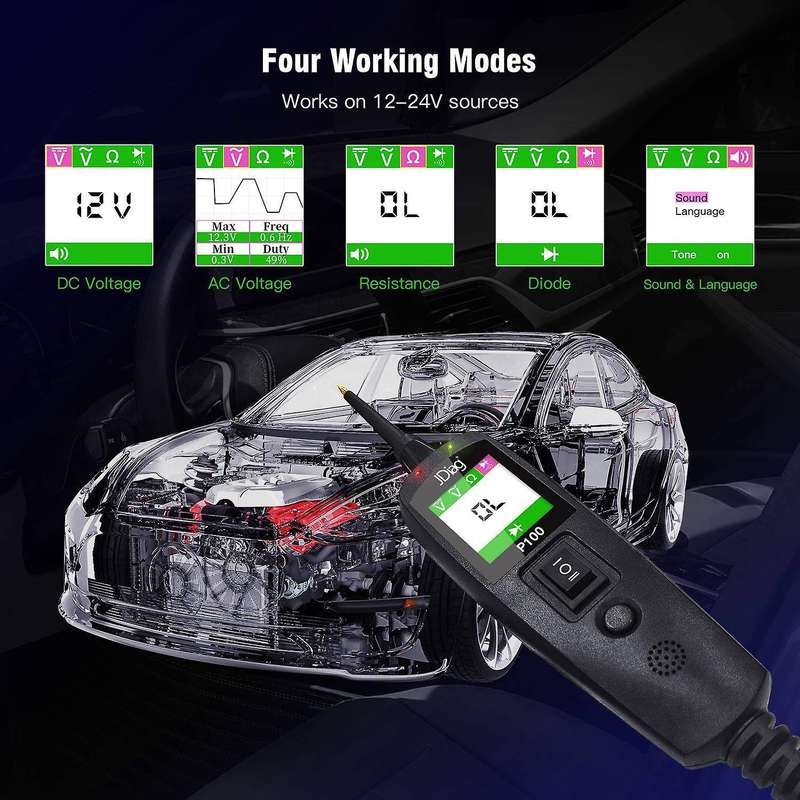

1.Voltage & Polarity Testing-Determine DC\/AC Voltage and Postive\/Negative quickly.2.Resistance Continuity Testing- LCD Screen display the value of resistance.3.AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.4.Components Activation in your hand, in the vehicle or W\/Ground. Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.5.Checking for Bad Ground Contacts and Locating Short CircuitsAutomotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V1. Display: TFT color display (160 x 128 dpi)2. Operating Temperature: 0 to 60C (32 to 140 F)3. Storage Temperature: -40 to 70C (-40 to 185 F)4. External Power: 12.0 or 24.0 V power provided via vehicle batteryTest Tool : range : 0-65V +1 digitResistance range : 0-200 K ohmFrequency response of tone pass through0Hz to 10K hz.Circuit BreakerRating current: 1-10 AmpTesting Standard:100% current : no trip150% current: trip in one hour200% current: trip in 3-.300% current: trip in 0.5-4.0 seconds.Language Support: English, German, French, Spanish, Portuguese, Russian, Italian.size: 165 mm x 40 mm x 27 mm Material:ABScolour:BlackPackage Contents:1 x detection tool1 x Battery clip1 x Extension cord1 x car charger line1 x English manualOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
