Car Rear View Camera Reverse Backup Color parking Camera

 Features:

CE certification

• Anti fog glass

• RCA connector

• High grade of waterproofing: IP68.
High-definition and 170 degree wide viewing angle.
Applicable to variety of vehicles: car, truck, RV, etc.
Snap-in design, it is easy to install.
Its simple and modest design and small size won't draw any attention.
It helps to avoid incidents and accidents abrasion well.

TV system: PAL
Horizontal Resolution: 420 TV lines
Effective Pixels: NTSC:510(H) * 492(V)
Minimum Illumination: 0.5 Lux
Lens: 13.5mm
View Angle: 170 degree
Sync. System: internal
S/N Ratio: >48dB
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
Video Output: 1.0Vpp, 75Ohm
White Balance: Auto
Power: DC 12V
Current Consumption: 90mA
Operating Temperature: -20 to + 70°C, 95% RH maximum
Storage Temperature: -40 to + 100°C, 95% RH maximum
Water-proof: IP66

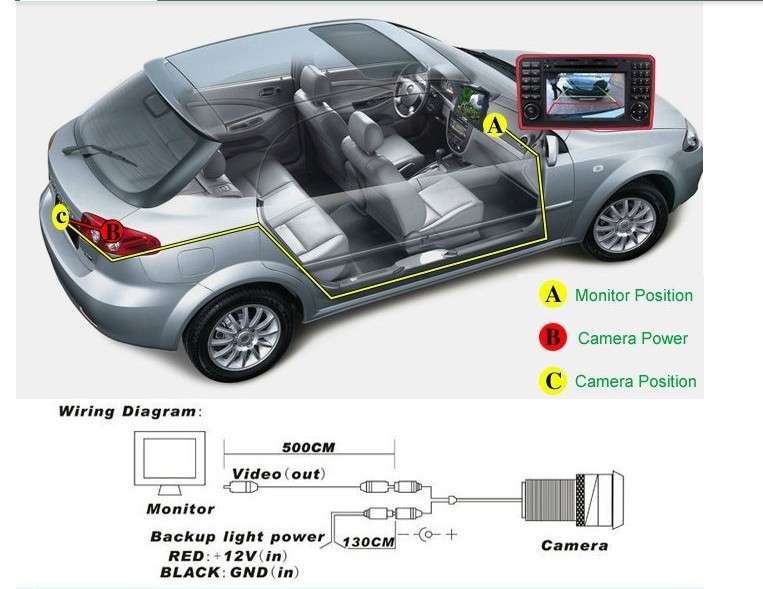

Installation:
Connect the yellow video output connector to terminal display device.
Connect the black power input connector to power output device.

Parking Assistance, Reversing camera It can help us to see all the circumstances behind.

Specifications:

Original box: YES
Color: Black
Video Cable Length: 6m
Power Supply Cable Length: 1.2m

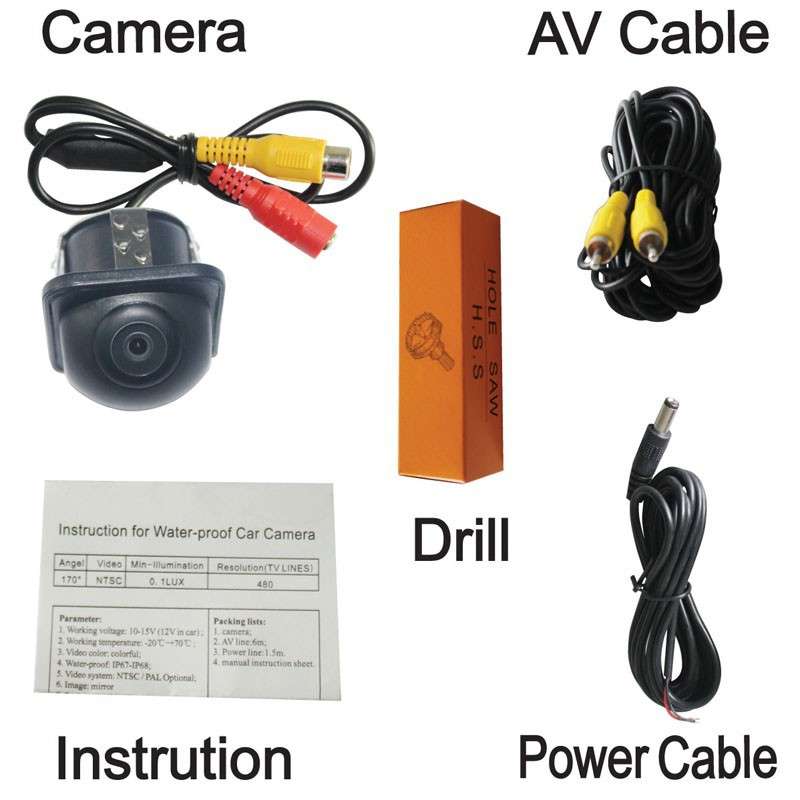

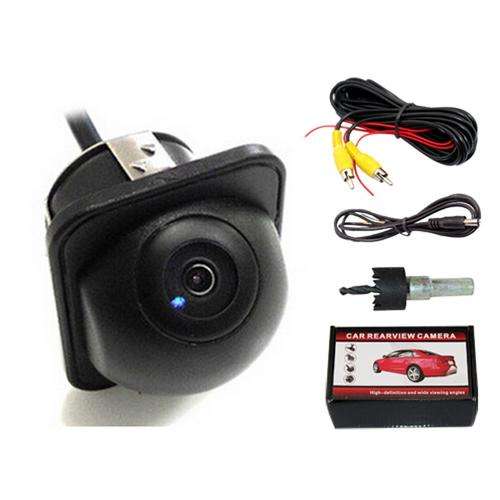

Packet content:
• 1*100% Brand New Car Rear View Camera

• 1 *6m Video Cable

• 1 *1.2m Power Cable

• 1 *Hole Saw(801:20mm 1830:18.50MM)

• 1 * User manual
