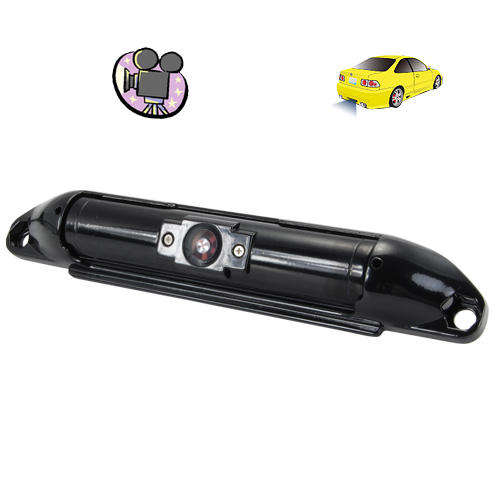

Car Rear View Camera with Wide Angle Lens + Up/Down Adjustment - CS25

Car Rear View Camera with Wide Angle Lens + Up/Down Adjustment

Car Reariew Camera with a wide angle lens and up/down angle adjustment for the absolute best view of what is behind you when you are reversing your car.

This high quality waterproof rear view back-up camera with color wide angle lens is an easy DIY (do-it-yourself) unit that makes a great upgrade to any city use vehicle. With an easy mounting design and included pre-wiring, this model rearview camera can be installed on all of todays big and small cars without the need for any extra parts. With a few simple, common tools, now anyone can add a rearview camera to their car.

Safety while reversing the car is very important for you, your passengers, and any pedestrians nearby. One of the best ways to keep everyone safe while reversing in narrow alleys, drives with blind spots, and other difficult areas is to have a high resolution rear view camera to give you a full view of what is coming up on the street. By simply pairing this unit with an LCD screen (like on a car DVD player or GPS unit), you will now be able to more clearly see what is behind you.

This easily installed rear view camera will ensure you can park and reverse safely. It is small enough to mount above your license plate and yet will provide a wide viewing angle with crystal clear color video. And the best part is that this model has a fully adjustable vertical adjustment so you can personalize the aiming angle to best fit your needs. An ideal add on for any car needing to park in congested cities as well as for anyone with a large vehicle.

At a Glance...

• Pre-wired rearview camera
• Reversing and parking made easy
• Camera mounts on/over the license plate
• Manually adjustable aiming angle for ideal rear view

Manufacturer Specifications

• Product Description: Car Backup Camera
• Casing Material: Die cast body of Zinc Alloy (weatherproof)
• Color: Gloss Black
• Image Sensor: 1/3 inch wide angle color CMOS
• Angular Field of View: 130 horz/90 vert degrees
• Resolution: 380TV lines
• Lens Size: 3.6mm
• Minimum Illumination: 0.2 LUX
• Color System: PAL
• Total Pixels: 628x582 (PAL)
• White Balance: Auto
• Video Connection: RCA
• Manual Aiming Adjustment: Vertical Up/Down 45 degrees
• Water Resistant (Suitable for External Mounting on a Vehicle)
• On Screen Guide Lines: YES (from 0.5 to 1.75 meters back)
• Camera View Depth: Clear onscreen objects at up to 5 meters straight back
• Power Source: 12V DC (Car System)
• Operating Temperature: -10 to +50 C
• Overall Dimensions: 192mm x 30mm (L x H), hole to hole length = 178mm (approx)

Product Notes

• Up/Down adjustment gives you the best line of sight for your particular vehicle
• Works with Car Multimedia Systems and Car DVD Systems with a Car Rearview Camera IN or AUX Video IN

Package Contents

• Rearview Camera with Wireset
• Mounting Hardware

Frequently Asked Question

• How much of an area can I see on the screen with this rear view camera?
  It depends on the mounting height and the cameras aiming angle, but you can generally expect a view of 1.5 to 2.5 meters wide, keeping in mind that the further you look from the car the wider your field of view.
