Car Remote Control Central Door Lock Kit Locking Keyless Entry System

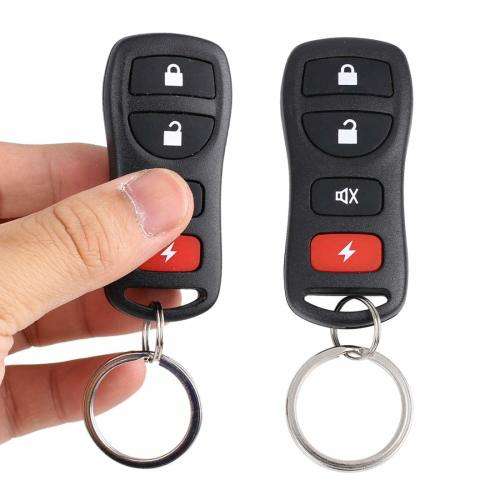

1. Remote Lock: Press the button LOCK one the remote transmitter once to lock while the parking lights will flash once.              2. Remote Unlock: Press the button UNLOCK one the remote transmitter once to unlock while the parking lights will flash twice.
3. Car Search: When locked, press the button SIREN on the remote transmitter once to locate the vehicle white parking lights will flash 60s or until we press the other button then will stop.
4. Trunk Release: Press the button MUTE/ FLASH / TRUNK one the remote transmitter once to release the trunk while the parking lights will flash three times.
5. Step on Foot-Brake to Lock / Unlock
Turn the ACC into "ON" position, vehicle will lock automatically when you step on the foot-brake.
Turn the ACC into "OFF" position, vehicle will unlock.
6. Negative / Positive Output Option for Trunk Release Plug in + for +12V output; Plug in - for -12V output ( to ground ).
7. Electronic / Pneumatic door lock option: Change the position of JP1 to select electronic and the pneumatic door lock.
8. Power window output (yellow color): Press" LOCK " button once, turning lights flash once and door lock, now the power window signal output negative trigger 25s.

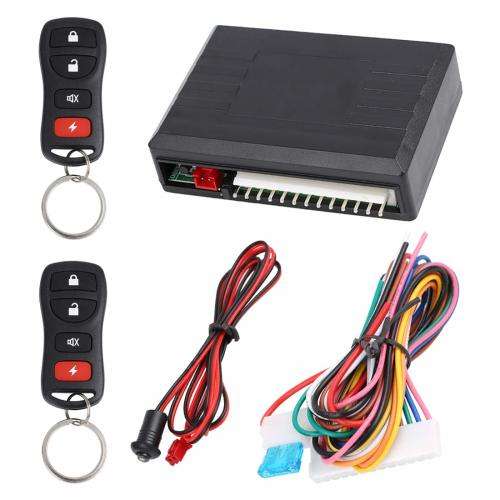

Package included:

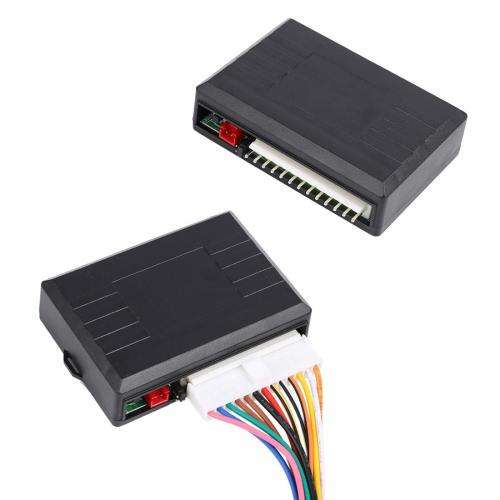

1 x Control box
2 x Remote Controllers

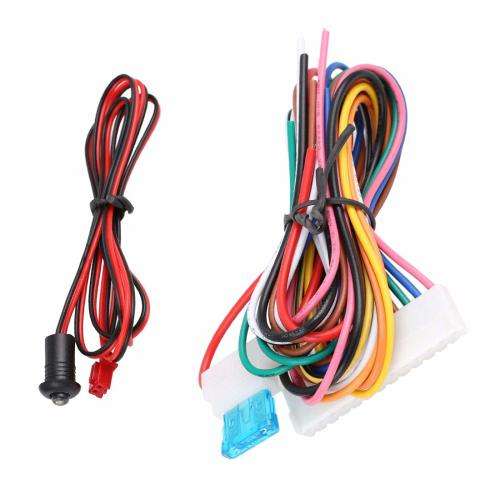

1 x LED connection wire
1 x Wire
2 x Adhesive tape
1 x Operation instruction
