Car Reversing Set - Sensors + Rearview Camera + Rearview Screen

Car Reversing Set - Sensors + Rearview Camera + Rearview Screen

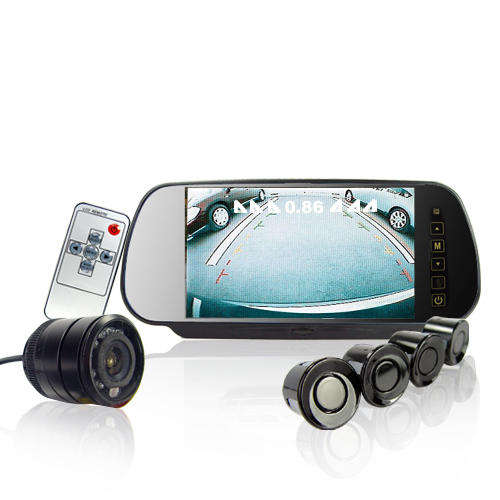

All in one car reversing set with everything you will need for safety as you back up your car, including a touch button 7 Inch car rearview screen monitor, 4 radar sensors, a weatherproof rear view IR equipped night vision camera, and a handy senor box to connect everything together. Some excellent features include voice warnings of distance from the included speaker, detection of up to 2 meters which will be displayed on the rear view monitor LCD in incremental centimeters, and auto powering and viewing of both the sensor and the camera when the car goes in reverse.

Manufacturer Specifications

Set Includes 4 Sensors + Sensor Box, Rearview Camera, and Car Rearview Monitor

Car Rear View Monitor Specification

• Screen: 7 Inch TFT LCD
• Video Color System: NTSC/PAL (Auto Switch)
• Aspect Ratio: 4:3, 16:9
• Video Output Level: 1Vp-p 75Ohm
• Horizontal Resolution: 500 TV Lines
• Resolution: 480xRGBx234
• Video IN
• Rearview Mirror Pinch Clip: Adjustable- 60mm ~ 90mm
• Dimensions: 105mm x 250mm x 25mm (L x W x D)

Camera Specification

• Image Device: 1/4 Inch CCD
• Color System: NTSC, PAL
• Horizontal Definition: 380
• Angular Field of View: 75 deg
• Minimum Illumination: 0.0 LUX night vision via IR lamps
• Scan area: PAL: 5.18x4.19mm ; NTSC: 4.69x3.45mm
• Scan frequency: PAL 50HZ, NTSC 60Hz
• White Balance: Auto
• S/N Ratio: <50dB
• Operation Temperature: -10 ~ +50 deg C
• Connection: RCA
• Waterproof: YES
• Recommended Max Range for Objects: 5 Meters

Camera + Parking Sensor Specification

• x4 Parking Sensors + Senor Box
• Video IN (For Connecting Camera)
• Video OUT (For Connecting Camera and Sensor Information to LCD Screen)
• x4 Sensor IN
• 12V Power OUT (For Powering Camera)
• Speaker OUT
• Detect and Display Distance: .4~2M
• Voice Distance Alert from Speaker
• Exact Digital Distance Display of Obstacles on LCD Screen (Displayed in CM Increments)
• Alarm Mode - Voice Warnings at 1.2, 0.9, 0.7 Meters
• Alarm Mode - Continual Stop Warning at >0.5 Meters

Product Notes

• Camera is equipped with IR lamps, for night vision
• Polarized Monitor For Clear Rear Viewing When Monitor Off
• Remote or Touch Button Controlled
• Automatic Monitor/Camera Feed On While Reversing
• Automatic Parking Sensor On While Reversing

Package Contents

• 7" Mirror Monitor, Rearview IR Camera, Rear Sensors, Video Cables, Power Cable for Mirror Monitor, Power Cable Set for Sensors, Installation Tools, Instructions Sheet - English
