Car Safety Rear View Reversing Camera Parking Reversing Camera Led Night Vision

Car Safety Rear View Reversing Camera Parking Reversing Camera Led Night Vision

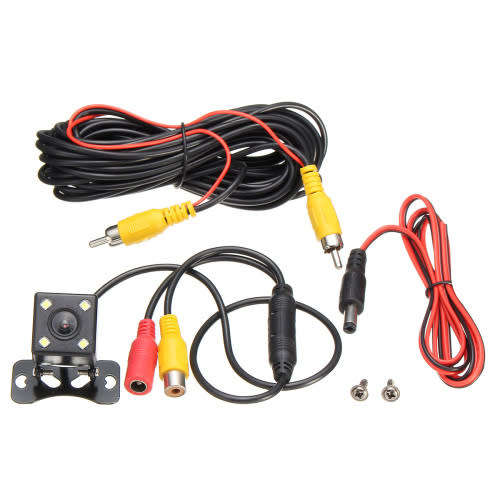

Package Included:

1 x Car Rearview Camera

1 x Video Cable

1 x Power Cable

2 x Screw

Specifications:

Color: Black

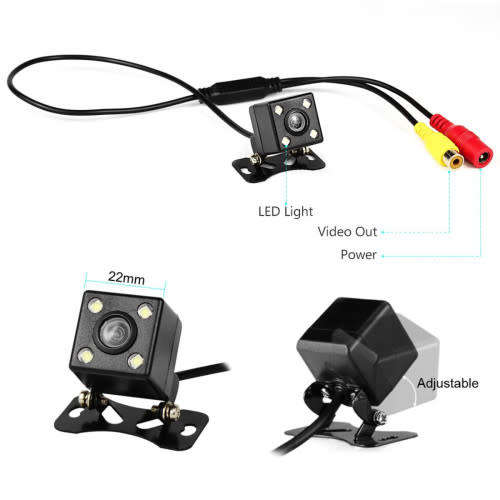

Camera Size: Approx. 2.2 x 2.2 x 2.2cm/ 0.8 x 0.86 x 0.86"

Image device: 1/4 inch color CMOS

TV System: NTSC/PAL

Effective Pixels: 628*582 pixels

Sensing area: 5.78*4.19mm

Sync cystem: intemal

Lens Angle:170°

Resolution: 420 TV lines

Minimum IIlumination: 0.3Lux/F1.2

Working Voltage Supply: DC 12V-6V <200mA

Current consumption: 150mA

Without Guide Line

White Balance: Auto

Waterproof: IP67

Features:

4 infrared night vision LED

Waterproof

Simple installation

Small and compact design

Universal wireless rearview backup camera

170 degree wide viewing angle

Support LED Night vision CCD image sensor

When the car back up, the Image will show Reverse leading line

Applicable to variety of Vehicles: car, truck, RV, mini-van etc

Solve the issue of bad car rear view effect, can help reduce incidents and accidents

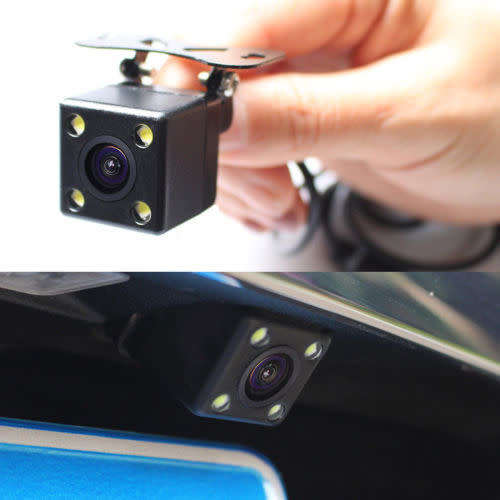

Mount the camera to your car's license plate area/back window, or any other suitable place

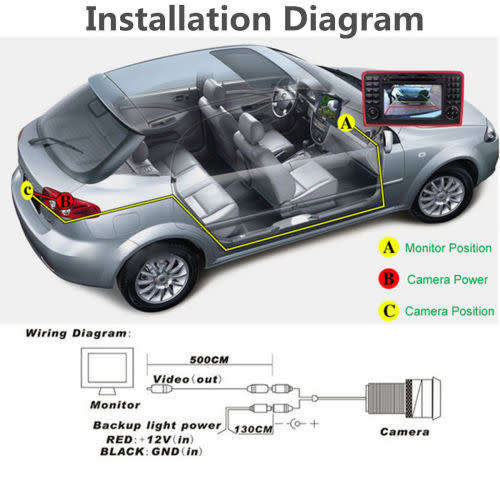

Installation:

1.Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)

2.Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

3.Connect the video cable of the camera to the extension cord.

4.Connect the extension cable to the car monitor.

5.You will see the images when your car is in reverse shift.
