Car Stereo AV System with Bluetooth (1-DIN) - C13 **Demo – Reduced to clear!!**

Car Stereo AV System with Bluetooth (1-DIN)

**Demo – Reduced to clear!!**

Car stereo AV system with Bluetooth in 1-DIN (50mm tall) size for the perfect combination of fun and practicality.

This is the ideal car stereo system for those people who want to upgrade their in-car stereo experience. If you feel like you have been missing out on all the car entertainment advances that have been happening over the last few years, then you are really in for a treat with this unit. All the multimedia features you can handle (DVDs, CD's, AM/FM radio, multiple AV inputs/outputs, analog TV) with a interactive touchscreen plus Bluetooth for added safety and convenience while driving.

Seem to be on the road a lot? Need to be reached in your car? This car stereo system is always in Bluetooth pairing ready mode so there's no need to press a button or activate a switch to get it to communicate with your cell phone. Simply turn on your mobile phone's Bluetooth connection and start sensing for active devices. Very shortly your mobile phone will display "Car Kit". Press connect and within seconds you'll be able to talk into the unit's built-in MIC and listen to your callers through your car speaker system. Perfect for when your boss calls to discuss the Penderson account.

Get a jump on the weekend with this versatile car DVD player that not only plays DVDs, CDs, and VCDs, but also handles a wide variety of multimedia files like MP4, AVI, DIVX, XVID, VOB, MPG and MPEG. Measuring 50mm tall (single DIN), this unit requires no complicated dashboard renovations to install. In fact, if you're somewhat handy and have a few free hours, you will find that this is the perfect DIY installation unit.

At a Glance...

• Proactive Bluetooth pairing functionality
• Plays DVDs and a wide assortment of AV files

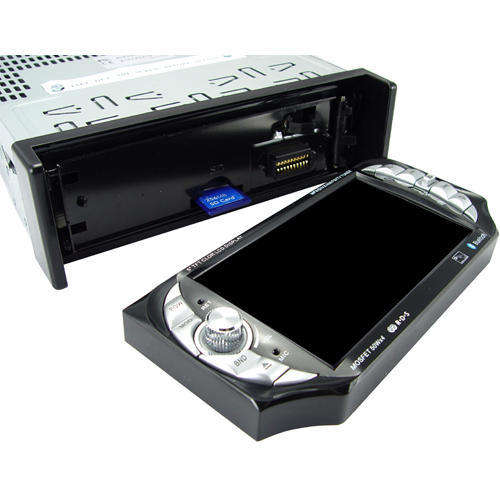

• Compact, with a detachable 5-inch LCD touch screen

Manufacturer Specifications:

• Primary Function: Vehicle multimedia player and Bluetooth system with 5 inch display.
• Discs/Formats Played:
  -Discs: DVD, CD, VCD
  -File types: MP4, AVI, DIVX, XVID, VOB, MPG, MPEG, MP3, AAC, JPEG
• Operation: Touch screen or remote control
• Display Information
  -Screen: 5 Inch TFT LCD
  -Aspect Ratio: 16:9
  -Resolution: 480x234 RGB
  -Angle: 0 to 90 (motorized sliding display panel)
  -Brightness: 300 cd/m2
  -Video Systems: PAL, NTSC, AUTO

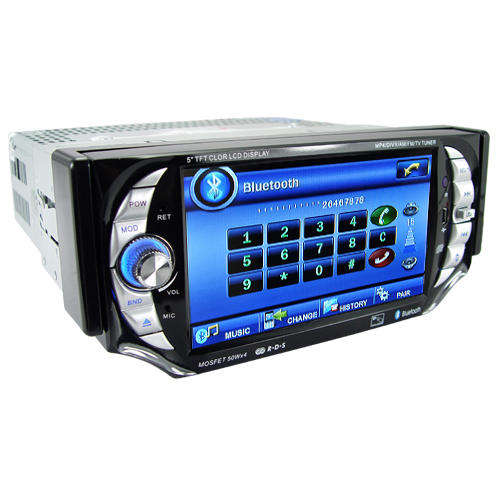

• Bluetooth Functions
  -Pair with phone - then use touchscreen interface
  -Dial, Receive, Disconnect calls
  -Volume Control
  -Touchscreen keypad
• Audio Information
  -Max Audio Output: 50W x 4
  -Signal-To-Noise Ratio (SNR): >85dB
  -User adjustable EQ, Bass, Treble, Fade and Balance
• AM/FM Tuner
  -AM Frequency Range: 522~1620KHz (worldwide)
  -FM Tuning Range: 87.0~108.0MHz (worldwide)
• TV Tuner Information
  -TV Type: Analog
  -Tuner Frequency Bands: VHF-L, VHF-H, UHF
  -Color Systems: PAL M, PAL N, SECAM DK, NTSC, PAL I, PAL DK, PAL BG
• Front Panel Controls
  -Power ON/OFF
  -Reset
  -Mode select
  -Volume dial
  -Radio band select
  -Disk eject
  -Built-in MIC
  -Answer calls/AV settings
  -IR port
  -Forward
  -USB port
  -Faceplate detach
  -Back
  -Display angle adjust
• Media Inputs
  -USB drive slot
  -SD/MMC card slot
  -DVD/CD disc slot

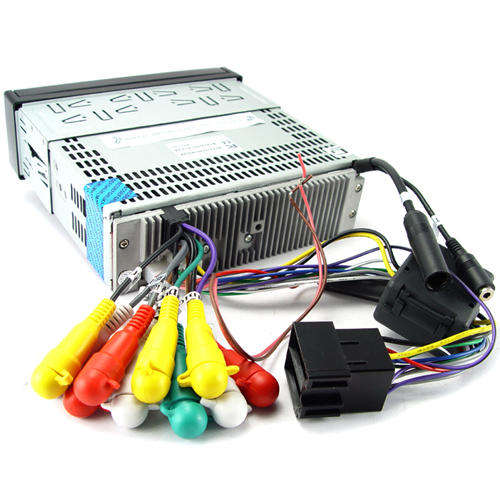

• Cables/Wires
  -Radio Antenna IN port
  -TV Antenna IN port
  -RCA Audio OUT x2 (front L and R)
  -RCA Audio OUT x2 (rear L and R)
  -AUX Audio IN (R/L)
  -Video OUT
  -Rearview Camera IN (AV Video IN)
  -AUX video IN
• Certifications: CE, FCC
• Dimensions: 181mm x 165mm x 50mm (L x D x H); depth = 211mm including front panel
• System Main Menu (color icons) Language: English
• DVD Menu Languages: English, Chinese, Spanish, Italian, Russian, Polish

Product Notes:

• Touchscreen Control
• Bluetooth Enabled (including A2DP)
• Fully Motorized Screen
• Adjustable Screen Angle
• Remote Control
• Not all functions shown on the opening menu are activated with this model (GPS is not available with this unit)
• The installation of this Car Stereo AV System should only be performed or supervised by a professional.
• This Car DVD Player features Rearview Camera Input.

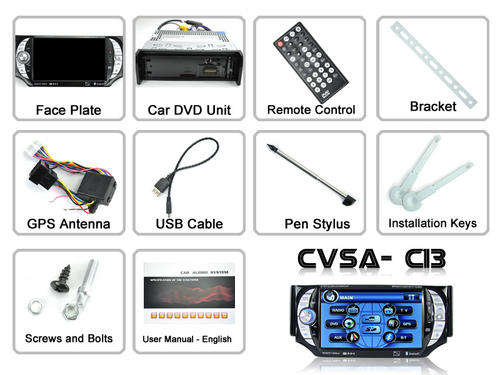

Package Contents:

• Car Stereo AV System with Bluetooth (1-DIN)
• Detachable Faceplate
• Remote control
• User manual - English
• ISO wire harness
• Mounting hardware
• Touch pen

Frequently Asked Questions:

• Does this unit come with antenna's?
  For the analog TV function and AM/FM radio you can use your cars own antenna or if you find that the reception in your area is weak, this unit has individual TV and radio antenna ports by which you can attach separate antennas to.


• Do I need to remove the piece of plastic which is sticking out the battery compartment of the remote control?
  Yes, please remove the little piece of plastic. It was inserted to keep the battery and the terminals separate so as to not waste battery power.
