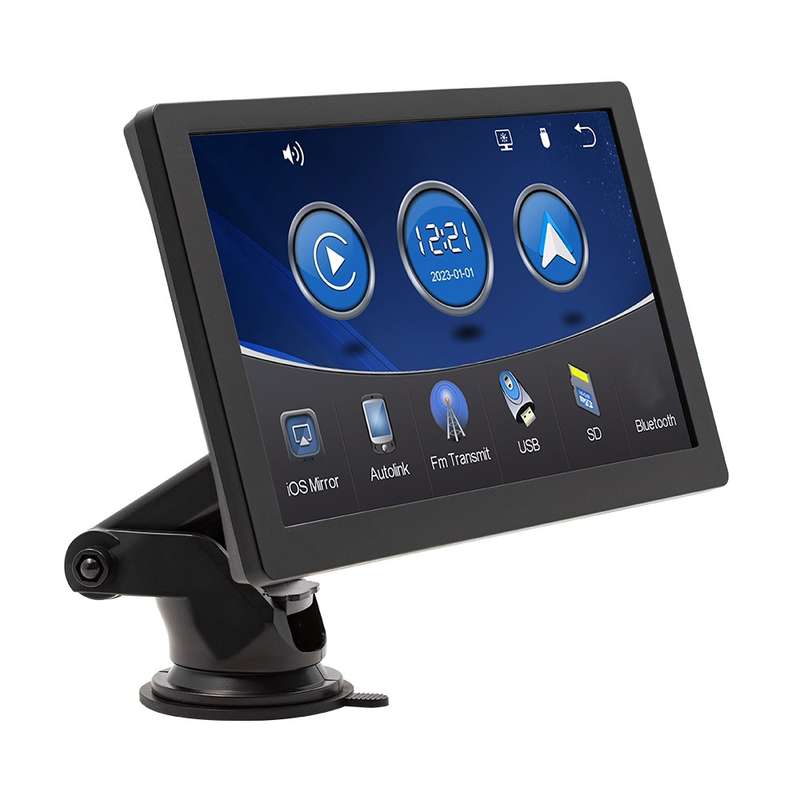

Car Universal Screen Stereo HD MP5 Player Reversing Monitor

Parameters:
1. System: Linux system
2. Software solution: Lingyang DA005
3. Radio transmission frequency: preset 93.00/96.00/98.00/100.00/102.00/104.00 MHz (can be set and saved by yourself, optional range 87.5-108 MHz)
4. Radio transmission IC: QN8027
5. Amplifier IC: CS8571E
6. Output power: built-in 1W speaker
7. Working voltage: 12~30V
8. Bluetooth version: version 5.0 (default name: SWL-BT)
9. CPU: DA005
10. Running memory: DDR2 512M
11. Display resolution: 1024x600
12. Screen size: 9 inches HD (IPS)
13. Mobile phone interconnection supports wired and wireless screen projection, supports reversing image, built-in speaker, TF card, AUX port audio output (3.5MM), reversing video input (2.5MM)
14. USB interface: USB2.0 reading
15. Audio format: MP3/WMA/AAC/APE/OGG/M4A/RA/WAV
16. Video format: H264 DIVX HD (720P 1080I 1080P) AVI/FLV/MKV/RMVB/MPEG/ASF/TS/H264/QT
17. Image format: JPEG/PNG/BMP/GIF/TIFF
18. Language parameters: English, Simplified Chinese, Traditional Chinese, Arabic, Turkish, Russian, Persian, Thai, German, French, Portuguese, Spanish, Italian, Indonesian, Polish, Greek, Czech, Japanese, Hebrew, Dutch
19. Installation size: 130x85mm ; 65x65mm
20. Shell size: 222x135mm
21. Main unit depth: 25mm

Basic functions
1. Radio frequency transmission function (set the original car radio's receiving frequency to the same frequency as the selected by this unit, and the audio signal of this unit can be amplified and output to the speaker through the original car machine)
2. Card reader USB disk (audio/video/picture)
3. Bluetooth function
4. Wired and wireless mobile phone screen projection, wired and wireless Android AUTO/Apple CarPlay
5. Reversing rear view function (AHD camera optional)
6. AUX audio output function
7. With magnetic
