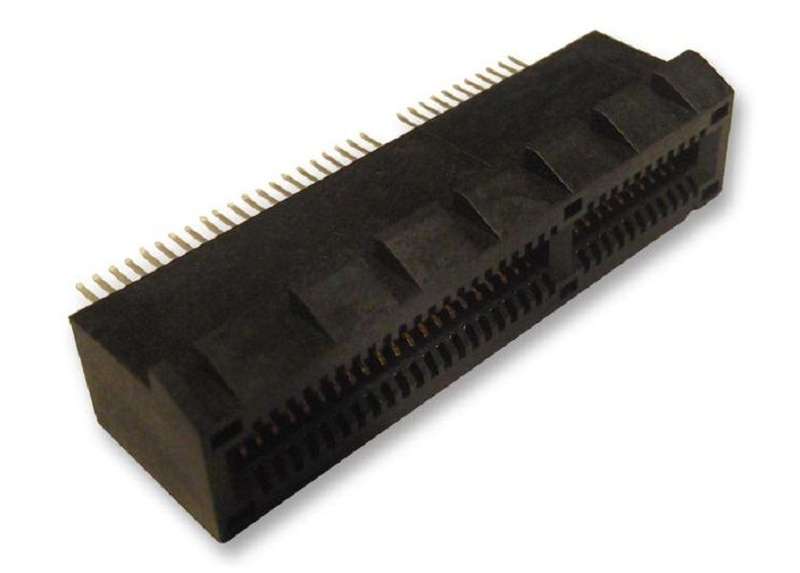

Card Edge Connector (PCIE-064-02-F-D-EMS2), PCIe, Dual Side, 1.57 mm

Card Edge Connector, PCIe, Dual Side, 1.57 mm, 64 Contacts, Edge Mount,Straight, SolderProduct OverviewThe PCIE-064-02-F-D-EMS2 is a 64-pole 1mm PCI Express? Card Connector with50?inch (1.27?m) gold-plated bronze contacts. The PCIE series edge mount cardconnector is compatible with PCIEC and PCRF series connectors. While optimizedfor 50R applications, this connector with alternative signal/ground patterns mayalso perform well in certain 75R applications.2.2A Current ratingSupports one, four, eight and sixteen PCI Express? linksAccepts 0.062" (1.60mm) cardApplicationsIndustrialProduct InformationCard Edge Connector Type: Dual SideNo. of Contacts: 64ContactsCard Thickness: 1.57mmNo. of Contacts: 64 ContactsCard Edge / Backplane Connector Type: Card EdgeConnector Mounting: Edge MountPitch Spacing: 1mmConnector Body Orientation: StraightContact Termination Type: SolderContact Material: Phosphor BronzeNo. of Rows: 2RowsContact Plating - Mating Side: 3µ" Gold Plated ContactsRow Pitch: -Connector Body Material: LCP (Liquid Crystal Polymer) BodyContact Plating: Gold Plated ContactsProduct Range: -
