Casey 1 Channel Passive Video Balun with Pigtail-Twin Pack, , 1 Year Warranty

Product Overview

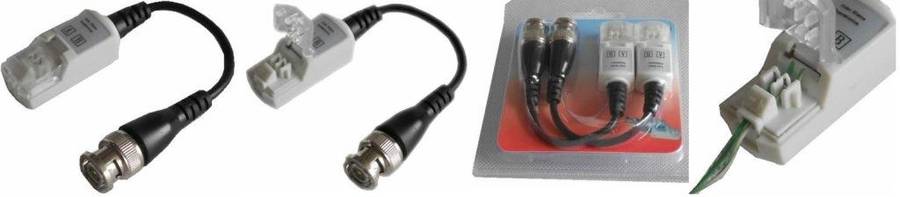

The Casey tool-less video Balun VB108P is a passive transmission device that transmits video signal over unshielded twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP. It¿s easy to install and cost effective, and does not require power.The extremely compact size allows the VB106P to fit anywhere that a BNC can fit. It is ideal for mounting directly on virtually all high-density DVRs without any additional cabling. Its crosstalk and noise immunity ensure quality video signals.
Please Note these are sold as a Pair

Highlights
¿ UTP 75 Ohm Passive Video Balun, Tool-less (Snap on Style)Baluns
¿ Channel:1 Channel
¿ Impedance: Coax, Male BNC: 75 ohms
¿ RJ45/Terminal Block: 100 ohms
¿ Transmission Distance: 330m
¿ Compatible: NTSC, PAL, and SECAM
¿ Frequency Response: DC to 8MHz
Features
¿ Full-motion CCTV video at distances up to 330m When used with any passive transceiver
¿ Up to 1500m with any active UTP video receiver
¿ Outstanding interference rejection, transient protection
¿ High quality image
¿ Tool-less, no need to strip the wires, installs in seconds
¿ It can work as video transmitter or video receiver
¿ Compact size and easy installation
¿ With Pigtail BNC connector

Specifications:
¿ Video Format-NTSC, PAL, and SECAM
¿ Frequency Response-DC to 8MHz
¿ Attenuation-0.5dB typ
¿ CMRR-60 dB
¿ Wire Type-UTP5
¿ UTP Connection-No need to strip the wires
¿ Power-No power required
¿ Case-ABS Plastic

Impedance
Coax, Male BNC-75 ohms
Terminal Block 100 ohms

Working environment
Working Temperature -10¿ to +50¿
Storage Temperature -30¿ to +70¿
Humidity-0 to 95%

Dimension-40mm*17mm*14mm with BNC connector
Weight -55g/pair
