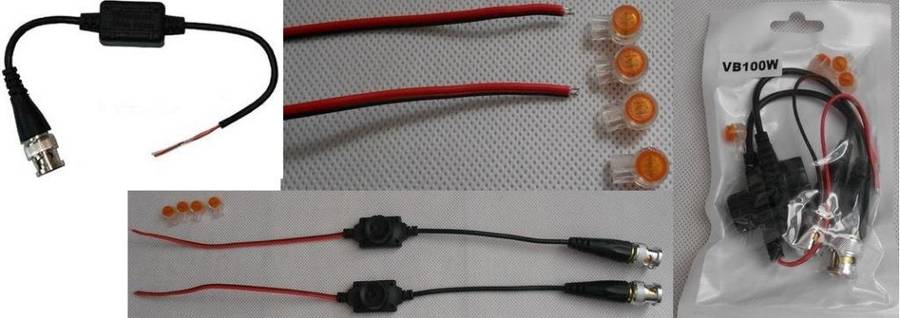

Casey 1 Channel Passive Waterproof UTP Video Balun Transceiver For CCTV -Twin Pack, , 1 Year Warranty
1 CH Passive Video Balun , Waterproof CCTV UTP Video Balun, Passive Video Transceiver
Product Overview
The Casey 1 CH Passive Video Balun , Waterproof CCTV UTP Video Balun, Passive Video Transceiver is a passive transmission device that transmits video signal over unshielded twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP. It¿s easy to install and cost effective, and does not require power. Waterproof design makes it work in all weather. It is ideal for mounting directly on virtually all high-density DVRs without any additional cabling. Its crosstalk and noise immunity ensure quality video signals. Please Note: This item is sold as two per pack
Highlights
-Channel: 1Channel
-Impedance: Coax, Male BNC: 75 ohms/RJ45/Terminal Block: 100 ohms
-Transmission Distance: 330m
-Compatible: NTSC, PAL, and SECAM
-Frequency Response: DC to 8MHz
-Waterproof type
-Sold as Two per pack
Features:¿ Full-motion CCTV video at distances up to 330m when used with any passive transceiver
¿ Up to 1500m with any active UTP video receiver
¿ Outstanding interference rejection, transient protection
¿ High quality image
¿ "Press-Fit" terminal block
¿ It can work as video transmitter or video receiver
¿ Compact size and easy installation
¿ Water-proof design
Specifications:¿ Video Format NTSC, PAL, and SECAM
¿ Frequency Response DC to 8MHz
¿ Attenuation 0.5dB typical
¿ CMRR 60 dB
¿ Wire Type UTP5
¿ UTP Connection Tinned copper wire
¿ Power No power required
¿ Case ABS Plastic
Impedance
¿ Coax, Male BNC-75 ohms
¿ Terminal Block 100 ohms
Working environment
¿ Working Temperature -10¿ to +50¿
¿ Storage Temperature -30¿ to +70¿
¿ Humidity:0 to 95%
Dimension 39mm*16mm*19mm(excluding connectors)
Weight 58g/pair
