Casey 4 Channel Passive Coax to Cat5 Video Transceiver /Video Balun with BNC Connectors, , 1 Year Warranty
Product Overview
The Casey Video Balun VB140A is a passive transmission device that transmits video signal over unshielded twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP, are easy to install and cost effective, and do not require power. Working with 8-core CAT-5 can transport 4 channel video signals. Its crosstalk and noise immunity ensure quality video signals.

Features

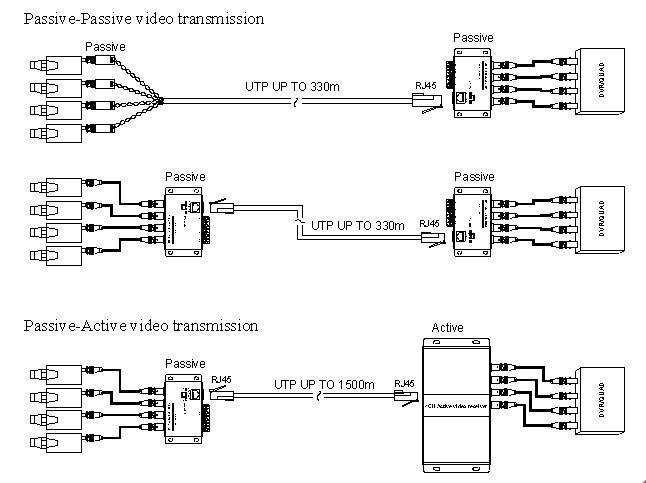

¿ Full-motion CCTV video at distances up to 330m when used with any passive transceiver
¿ Up to 1500m with any active UTP video receiver
¿ Outstanding interference rejection, transient protection
¿ High quality image
¿ It can work as video transmitter or video receiver
¿ Compact size and easy installation
¿ With 4ch pigtail BNC male connector
¿ Steel case and spray painting
¿ Connectors: Terminal block, RJ45, BNC male connector
¿ Wire Type-UTP5
¿ Connector-Male BNC, RJ45 and Terminal Block
¿ Power- No power required
¿ Case-Steel case, spray painting

Specifications:
¿ Video Format NTSC, PAL, and SECAM
¿ Frequency Response DC to 5MHz
¿ Attenuation 0.5dB typ
¿ CMRR 60 dB

Impedance
¿ Coax, Male BNC 75 ohms
¿ RJ45/Terminal Block 100 ohms

Working environment
¿ Working Temperature -10¿ to +50¿
¿ Storage Temperature -30¿ to +70¿
¿ Humidity 0 to 95%

¿ Dimension-130mm*63mm*23mm
¿ Weight -266g/pc

Connection method:

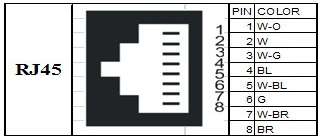

Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure).connect the clamped modular plugs to the RJ45 sockets, connect the coax to the connection terminal.
