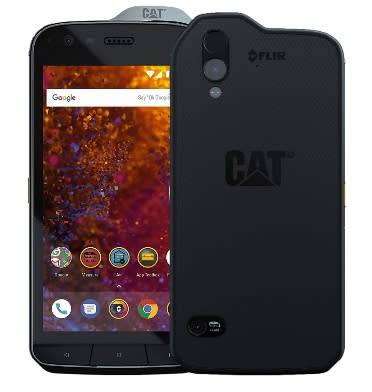

CAT® S61 SMARTPHONE
Bigger. Better. Bolder.
INTEGRATED THERMAL IMAGING CAMERA
Use the integrated thermal imaging camera of the Cat S61 to monitor and diagnose problems more quickly and save time on site. Locate a heat source up to 400°C, even in complete darkness, and diagnose damp, draught, leak, a short or blockages. Just tap the MyFLIR app on the device to get started
LASER ASSISTED DISTANCE MEASURE
Measure distances and area using the Measure app on the Cat S61. Safely document measurements and record the layout of an area all in one screen, helping to make work estimates quicker and easier. Tap the Measure app on the device to get going.
INDOOR AIR QUALITY MONITOR
The handy Air app measures the quality of the air you are working in when indoors. It will alert you to unhealthy levels of indoor air pollutants, like paints and solvents, and provides temperature and humidity readings.
TECHNICAL DETAILS
Operating System: Google Android™ Oreo (with update to P)
CPU: Qualcomm SD630 Octacore 2.2GHz
RAM: 64GB | 4GB RAM | Extended Storage: Expandable via microSD™ card
Display: Super Bright 5.2” Display - FHD (1920 x 1080) IPS, auto switch support and wet-finger/glove-on working technology*
Networks: GSM/GPRS/EDGE, UMTS/HSPA+, 4G LTE
Bands: GSM/GPRS/EDGE (850, 900, 1800, 1900 MHz) | LTE B1,2,3,4,5,7,8,12,13,17,25,26,28,29,66
Main Camera: 16MP autofocus with PDAF, Dual LED flash
Front Camera: 8MP fixed focus
GPS: GPS, Glonass, BeiDou (variant dependant), Galileo, QZSS, and SBAS
Sensors: Accelerometer, Proximity Sensor, Ambient Light Sensor, Compass, Gyroscope, Location, Barometer, Thermal, Indoor Air Quality Sensor (humidity & temperature)
SIM: Nano-SIM
Connectivity: Wi-Fi 802.11 a/b/g/n/ac (2.4 & 5GHz) | Bluetooth 5.0 | NFC
IP Rating: Ingress Protection (IP68 & IP69K)
Waterproof: Up to 3m for 60 minutes
Dust Proof: Sand, dust and dirt resistant
Drop Test: Up to 1.8m (6ft) onto concrete
Military Standard:MIL SPEC 810G, Thermal Shock: handles low to high temperature differences between -25°C (-13°F) - 55°C (131°F) for up to 24hrs**, Resistant to vibration: Category 4 Resistant to humidity and salt mist
Battery: 4500mAh | Quick charge 4.0
Dimensions: 163 x 78 x 13mm
Weight: 250g
