CAT7 SSTP Full Copper Ethernet Cable - up to 1Gb/s - Gray / Price per Meter

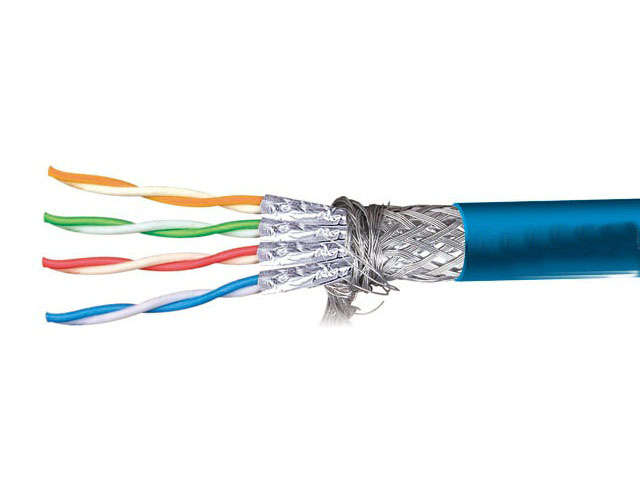

CAT7 SSTP (SS / double shielded with Braiding / Ripcord for grounding cable + all pairs individually shielded) are used for high bandwidth networks >= 1Gbit/s (are backwards compatible to slower networks) and for use with any of our HDMI Extender over CAT5e / CAT6 / CAT7 products which uses up to 10.8Gbit/s bandwidth. Besides the foil shield, the twisting of the pairs and number of turns per inch causes RF shielding and protects from crosstalk. Cat 7 cable is rated for transmission frequencies of up to 600 MHz. See guide below on frequency testing.

For HDMI Extenders to use a higher color depth, higher bandwidth cables are required such as this cable to ensure best video/audio transmission, minimal signal attenuation and longer distances possible. This cable is full copper / multi-core cabling inside to ensure best possible signal transfer and no other mixed materials are used on the wiring to ensure best signal transfer / quality and stability.

Specifications :

Conductor : 24AWG Copper 0. 58±0. 02mm
Insulation : HDPE 1. 42±0. 06mm
Cores/Pairs : 8/4
Drain Wire : Full Copper
Shield : Polyester Tape/Al Foil
Sheath : 7. 4±0. 1mm PVC/LSOH/PE
Elongation : Min. 150%
Temperature Range : -20 up to +75℃
Tensile strength : Min. 0. 51Kg/mm2
Conductor Resistance : Max. 9. 38Ω/100m
Resistance Unbalance : Max. 2%
Insulation Resistance : Max. 150Ω/Km
Mutual Capacitance : Max. 5600pF/100m
Capacitance Unbalance : Max. 330pF/100m
Impedance : 100±15
Spark Test : 2000v
Delay Skew : Max. 20ns/100m
Velocity Of Propagation : 67%
