Catda Official Raspberry Pi PICO Microcontroller Development Board with Dual-core ARM Cortex M0+ Pro
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Description

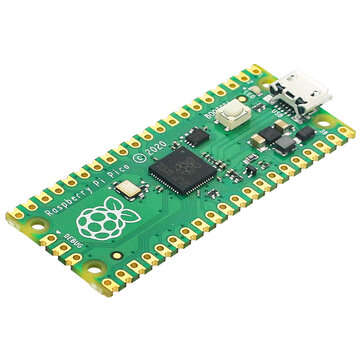

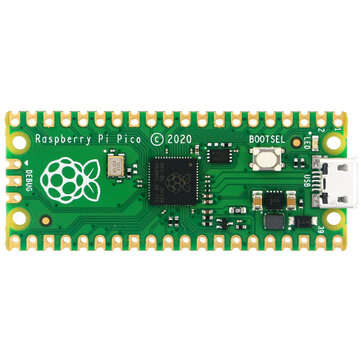

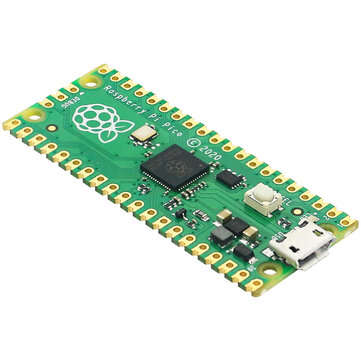

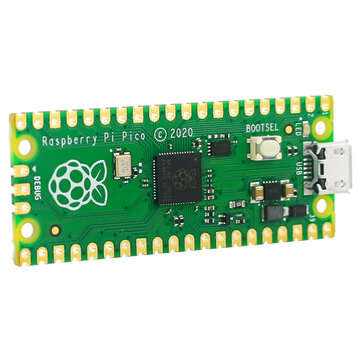

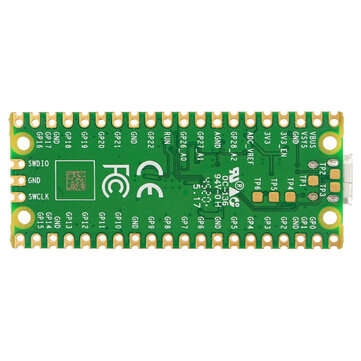

The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip. It has been designed to be a low-cost, high-performance microcontroller board with flexible digital interfaces. The Raspberry Pi Pico features two ARM Cortex-M0+ cores run up to 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage. In addition to powerful hardware resources, Pico has rich and complete software support and community resources. It comes with a complete Rasberry Pi official C/C++ SDK, Micropython SDK. Just click to get started with Raspberry Pi Pico. Pico has been designed to use either soldered 0.1 pin-headers (it is one 0.1 pitch wider than a standard 40-pin DIP package) or can be used as a surface-mountable `module`, as the user IO pins are also castellated. There are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow soldered SMT module.
Key Features
Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of on-board Flash memory Castellated module allows soldering direct to carrier boards USB 1.1 Host and Device support Low-power sleep and dormant modes Comprehensive C/C++/Micropython SDK, software examples, and documentation Drag & drop programming using mass storage over USB 26 ?? multi-function GPIO pins 2 ?? SPI, 2 ?? I2C, 2 ?? UART, 3 ?? 12-bit ADC, 16 ?? controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 ?? Programmable I/O (PIO) state machines for custom peripheral support
Specifications
Control Chip: RP2040 Flash: 2MByte USB Port: Micro-USB Power Supply: USB-5V;VSYS-1.8V-5.5V Supply Voltage: 5V Output Power: 5V/3.3V GPIO Level: 3.3V Working Current: <=300mA Numbers of Pins: 40 Pins ADC Accuracy: 12bit 500KPS ADC Language: MicroPython;C;C++ Environment: Visual Studio Code;Eclipse Size: 51*21mm
Package Included:
1* Raspberry Pi PICO development Board
