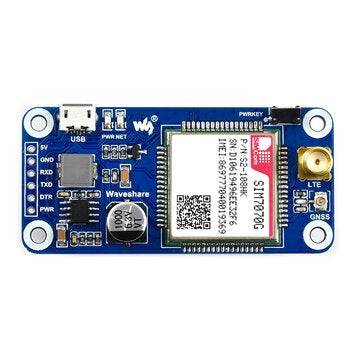

Catda SIM7070G NB-IoT / Cat-M / GPRS / GNSS HAT for Raspberry Pi Global Band Support For Raspberry 4 Catda SIM7070G NB-IoT / Cat-M / GPRS / GNSS HAT for Raspberry Pi Global Band Support For Raspberry 4
Catda SIM7070G NB-IoT / Cat-M / GPRS / GNSS HAT for Raspberry Pi Global Band Support For Raspberry 4 Catda SIM7070G NB-IoT / Cat-M / GPRS / GNSS HAT for Raspberry Pi Global Band Support For Raspberry 4

Catda SIM7070G NB-IoT / Cat-M / GPRS / GNSS HAT for Raspberry Pi Global Band Support For Raspberry 4

New 20 available
R1,085.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654094882

Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  • Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • UART control pins, to connect with host boards like Arduino/STM32

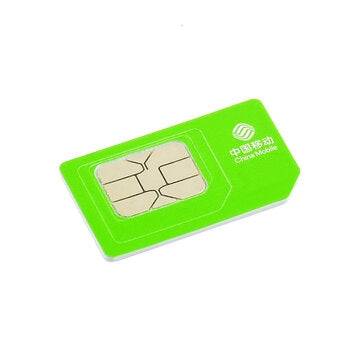

  • SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300~3686400 bps
  • Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications:

NB-IOT/CAT-M/2G
BandNB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
GSM/GPRS/EDGE: 850/900/1800/1900MHz
Data rateNB-IoT: 136Kbps(DL)/150Kbps(UL)
Cat-M: 589Kbps(DL)/1119Kbps(UL)
GPRS: 85.6Kbps(DL)/85.6Kbps(UL)
EDGE: 236.8Kbps(DL)/236.8Kbps(UL)
SIM card supportNB-IoT/Cat-M/2G card (1.8V SIM card ONLY)
Applicable regionglobal
GNSS
Receiver type16-channel
C/A Code
BandGPS L1: 1575.42 ± 1.023MHz
GLONASS L1: 1598.0625 ~ 1605.375MHz
BDS B1: 1559.052 ~ 1591.788MHz
Galileo L1: 1575.42 ± 1.023MHz
Data formatNMEA-0183
AntennaActive antenna
OTHER
Power supply5V
Operating voltage5V / 3.3V (configured via 0 resistor)
Current consumptionabout 41mA (idle mode)
Operating temperature-40ᆪC ~ 85ᆪC
Storage temperature-45ᆪC ~ 90ᆪC
Dimensions30.50mm 65.00mm

Selection Guide

CAT-M & NB-IOT & GSMCAT-M & NB-IOT
