Brand new and boxed
Grade A genuine CATL
First Life
New stock. Just arrived from China.
You need 24 of these modules to upgrade your Nissan Leaf battery pack to 56kwh.
You need expert skills to perform the upgrade. And additional programmed canbus module. Or we can do it for you. Contact us for installation quote.
Anode Material NCM
Brand Name XH-CATL
Model Number XH-32180
Electric Energy 2664 Wh

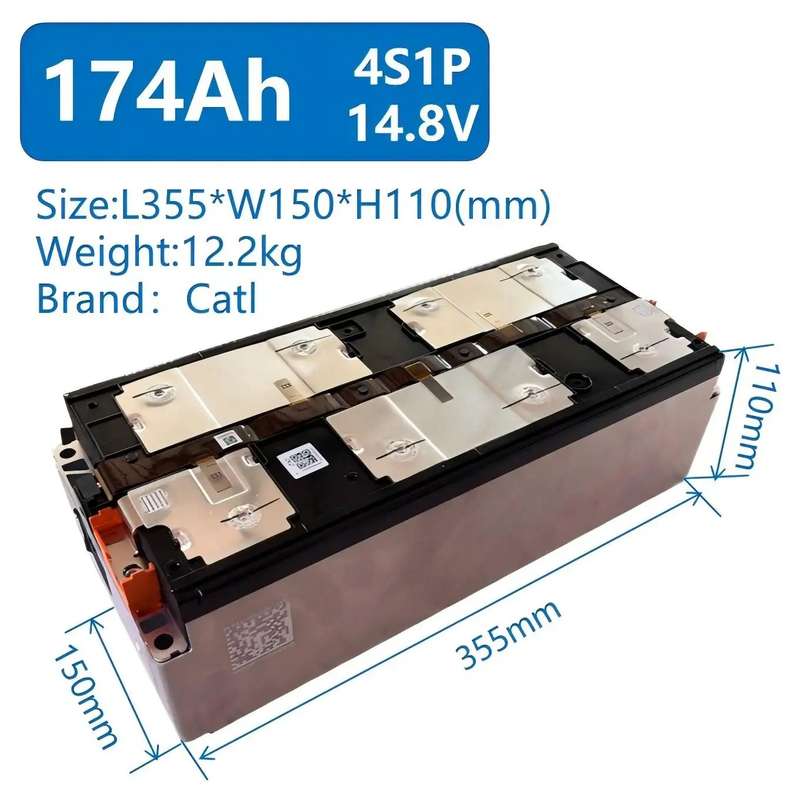

Battery Size 4S1P(150*355*110)mm
Weight 11.9kg
The charging ratio 1C
The discharge rate 3C
Battery Type Battery Module
Capacity 180/174Ah 4S1P
Nominal Voltage 14.8V
Operating Voltage 11-16.8V

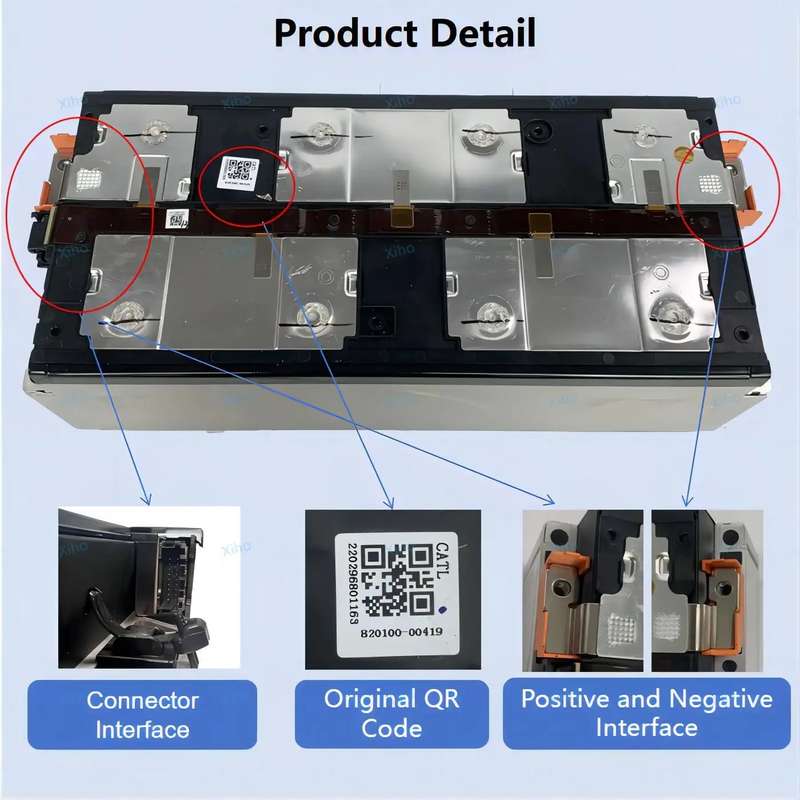

Format 355 VDA Module
Cycle life before any degradation >2000 Cycles (thereafter about about 5% per year. That is the nature of NCM cells. But still 100% better durability than chemistry in genuine Nissan OEM 24/30/40kwh packs)
Internal Resistance 1.6m
Charging Temperature 0°C~55°C
Discharge Temperature -30°C~55°C
Certification CE,UL,MSDS,UN38.3
OEM/ODM Acceptable
Single package size: 38X18X12 cm
Single gross weight: 14.000 kg
