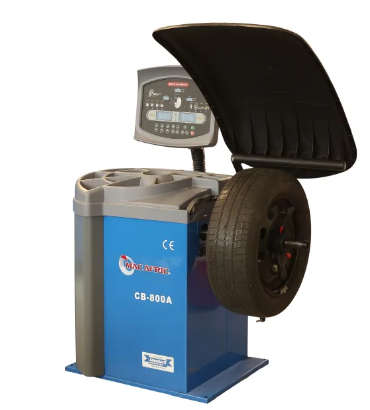

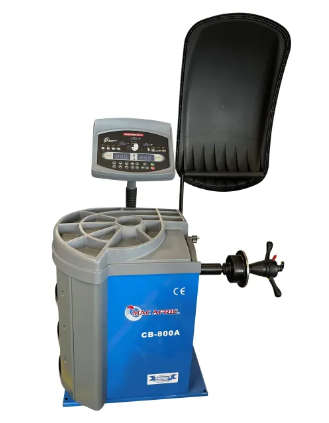

CB-800A Wheel Balancer

CB-800A Wheel Balancer

The CB-800A Wheel Balancer is designed to provide precise and efficient wheel balancing for a variety of wheel sizes. Featuring an intuitive interface and advanced functionality, this machine is ideal for automotive shops and service centers requiring quick, accurate results with minimal noise.

Key Features:

• High-Precision Balancing: Offers a balancing accuracy of ±1g with a balancing speed of 200rpm, ensuring excellent performance in balancing wheels.
• Versatile Wheel Compatibility: Accommodates a wide range of wheel sizes with rim diameters from 10" to 28" (256mm to 610mm) and rim widths from 1.5" to 20".
• Automatic Features: The machine includes an automatic brake and locking feature at the unbalance point, as well as a protective hood to ensure safety during operation.
• Quick Cycle Time: With a rapid 8-second measuring time, it significantly reduces wait times and boosts productivity.
• Innovative Measurement Options: Offers both manual input and automatic pull ruler measurement for greater flexibility and accuracy in balancing.
• Self-Calibration & Diagnostics: The self-calibration and full-automatic diagnostic systems simplify maintenance and ensure optimal performance over time.
• User-Friendly Interface: Features a five-window LED monitor and offers optional ounce/gram conversions, making it easier to operate and understand measurements.
• Quiet Operation: Designed to operate at a noise level of under 70dB, making it suitable for quieter environments.

Technical Specifications:

• Model Number: CB-800A
• Power Supply: 220V
• Motor Power: 0.2 kW
• Balancing Speed: 200rpm
• Max Wheel Weight: 65 kg
• Balancing Accuracy: ±1g
• Cycle Time: 8 seconds
• Rim Diameter Range: 10" to 28" (256mm to 610mm)
• Rim Width Range: 1.5" to 20" (40mm to 510mm)
• Noise Level: <70 dB
• Operating Temperature: Suitable for a wide operating range (generally 0°C to 50°C)

Package Details:

• Package Weight: 140 kg
• Package Dimensions:
  • Length: 97 cm
  • Width: 70 cm
  • Height: 112 cm

Why Choose the CB-800A Wheel Balancer?

This high-performance wheel balancer is designed to handle both everyday tasks and specialized balancing jobs, offering precise results, quick cycle times, and an intuitive user experience. With advanced self-diagnostic features, multiple measurement options, and compatibility with a wide range of wheel sizes, its an essential tool for any modern workshop looking to improve efficiency and accuracy.
