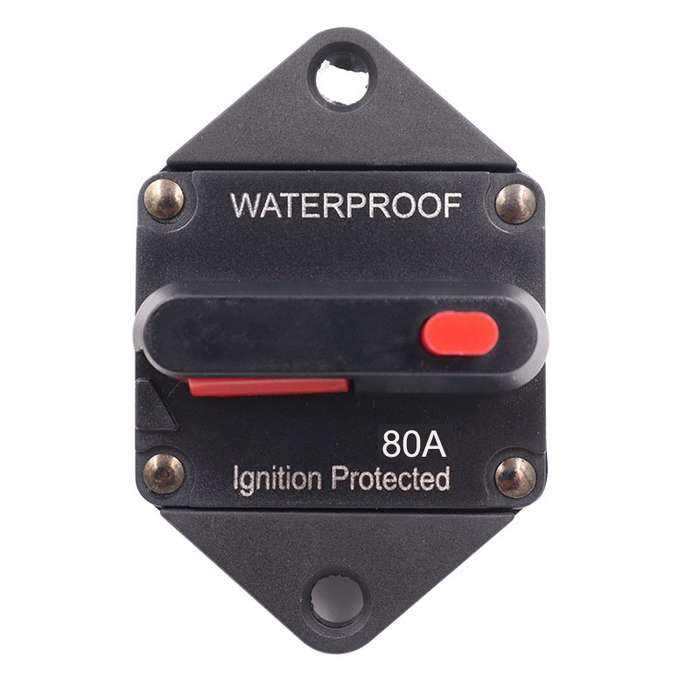

CB10 Car Audio Modified Automatic Circuit Breakerion, Specification: 80A

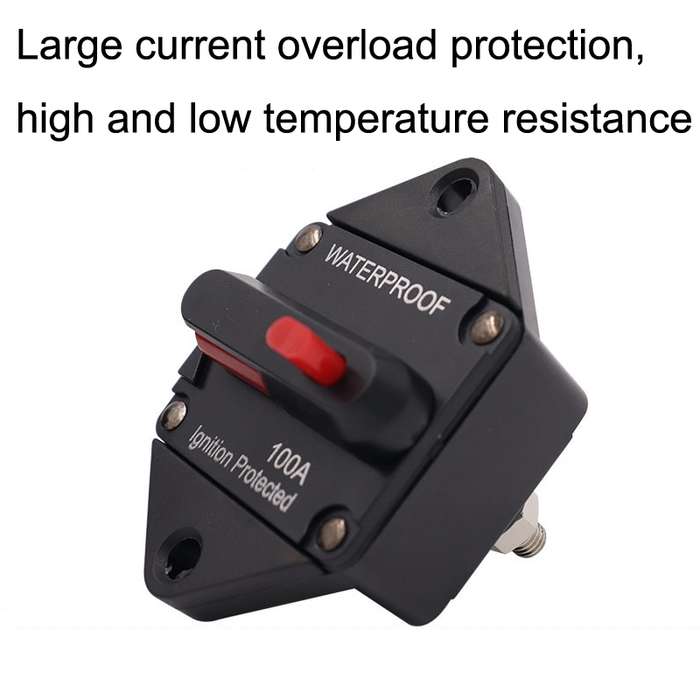

1. Large current overload protection, high and low temperature resistance
2. High temperature and voltage resistance, strong electrical conductivity, high production process
3. When the current reaches the cut-off value, the long handle automatically bounces to cut off the power supply
4. Made of bakelite material, heat-resistant and corrosion-resistant
5. Working mode: automatic disconnection + manual disconnection
6. Function: Protect the circuit on the car to prevent the load from being burnt out due to excessive current (ie electrical appliances such as car lights, car refrigerators, fans, etc.)
7. Signal to noise ratio: 10dB
8. Application: cars, RVs, yachts, etc.
9. Rated voltage: 12-48V

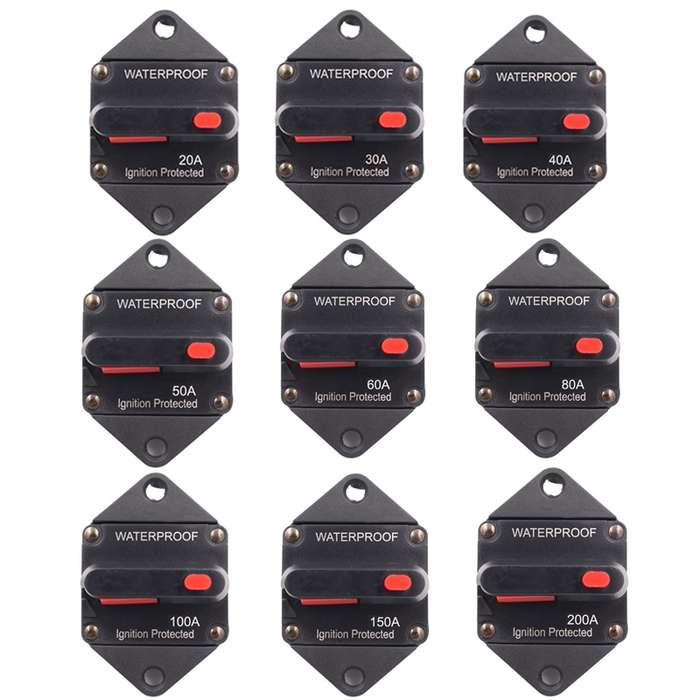

10. Rated current: 20A / 30A / 40A / 50A / 60A / 80A / 100A / 150A / 200A
11. Rated power: 10W
12. Material: zinc alloy
13. Size: 73x58x53mm
14. Weight: 78.7g
