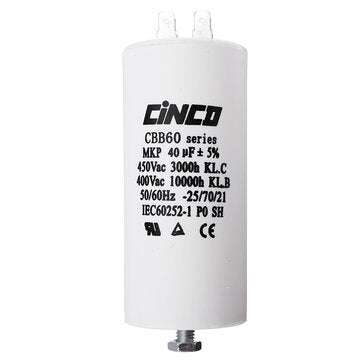

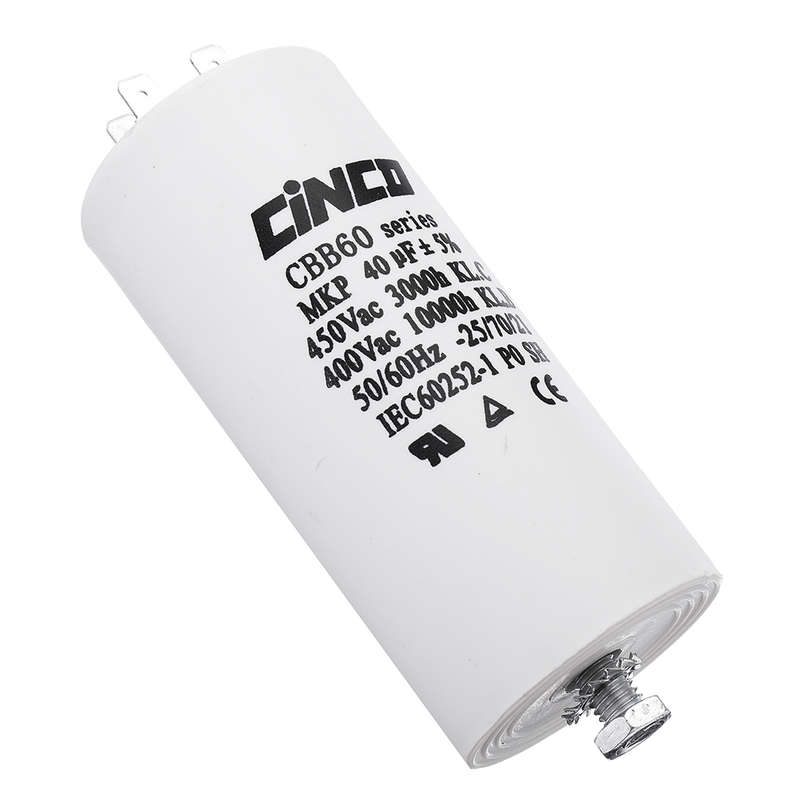

CBB60 40UF 450V Water Pump Motor Run Capacitor

Features:

CBB60 Capacitors takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindric outline with high reliability and stability.CBB60 capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.
1) Very small dissipation factor,small inheterent temperature rise. 2) High insulation resistance. 3) Good capacitance stability. 4) Excellent self-healigh property. 5) Safety and hight reliability due to flame reatardant plastic or metal case enclosure,flame retardant opoxy resin endfill. 6) It is applicable for the starting and running of AC single-way motor with 50~60Hz frequency.
Specifications:

Capacitance	40UF
Capacitance Tolerance	±5% , ±10%
Rated Alternate Voltage	450V
Rated Frequency	50/60 Hz
Dissipation Factors	a0.002(1KHz,20ﾣ)
Operating Temp.	-40ﾣ ~ +85ﾣ or -40ﾣ ~ +70ﾣ
Case Material	PBT, PP, Aluminium, Flammability Class a UL 94 V -2, 750C (RTI)
Dielectric	Polypropylene with self healing SH
Insulation Resistance	a3000S
Weather Category	40/85/21, 25/70/21
Withstand voltage(Terminal to Terminal)	2 X Rated Voltage
Withstand voltage(Terminal to Case)	Minimum 2000 V AC for 1 Min.
Ref. Standard	IEC60252-1:2001,GB/T3667.1-2005,UL810
Quality System	ISO 9001:2008
Approvals	CQC,CE,VDE,UL,RoHS
Application	Electrical motor, pump, washing machine, Power saver

Package included:

1 xCapacitor
