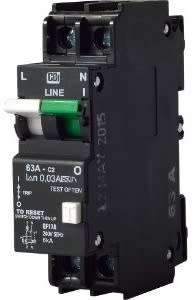

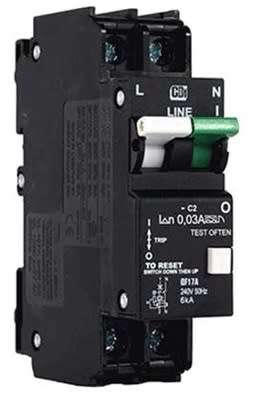

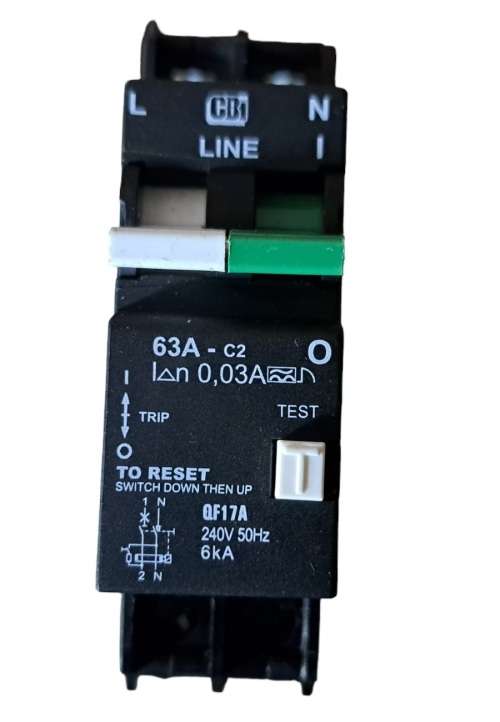

CBI Earth Leakage 1 Pole + Neutral 63A 6kA 240V with Overload Protection QF17A63

QF17A Single Phase with Overload Protection Dual Mount design fits both DIN and Samite Rail DB Boards Energy limiting capability on both switch and circuit breaker versions Switch version fitted with short circuit protection for additional safety Top busbar design enables easier installation Hydraulic Magnetic technology results in accurate temperature independent tripping white.

Product Features:

• Hydraulic Magnetic technology results in accurate temperature independent tripping.
• Energy limiting capability on both switch and circuit breaker versions.
• Precision Tripping Characteristics.
• Trip indication with mid-trip position.
• Reset immediately after overload.
• Shell design allows for an easier installation onto busbar.
• Single phase with overload protection.

Application:

• Residential and commercial applications requiring high sensitivity earth leakage protection from electrical shock and fire hazards.
• Earth leakage protection.
• Telecom / Datacom equipment.
• Lighting control.
• UPS equipment.
• Alternative energy equipment.
• Mobile power generation equipment.
• Railway signaling equipment.
• Industrial equipment.

Safety Features:

• Earth Leakage Devices should be installed by a trained professional to prevent any damages or injury caused by incorrect installation.
• Single phase with overload protection.

Technical Specifications:

• Colour: Black.
• Material: Plastic.
• Mounting Type: Dual Mount.
• Poles: 1 + Neutral.
• Curve: 2.
• Protection Type: Earth Leakage Protection with Overload Protection.
• Escutcheon: 57mm.
• kA Rating: 6kA.
• mA Rating: 30mA.
• Height:  92.8mm.
• Width:  26mm.
