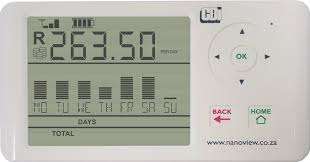

Cbi Nanoview Electronic Meter

Description:

- Realtime and accumulated consumption of 4 user defined electrical circuits - Can be expanded to maximum of 16 electrical circuits displayed in either Watts (W), Kilowatts (kW), Rand and Cents (R / c)

- Realtime and accumulated consumption of 1 to a maximum of 4 wireless water meters (if NanoWater is fitted) displayed in either Litres (L), Kilolitres (KL), Rands and Cents (R / c).

User selectable names to identify circuits:

• Total (electricity and water)
• Plugs
• lights
• Geyser
• Stove
• Outbuilding
• Pump
• Water - If NanoWater is

Technical Specifications:

• Connect to a maximum of 16 electrical circuits.
• Sensor measuring range: 5W to 14kW (60 A max)
• Power sensor accuracy of 99% (Class 1)
• Operating Voltage: 230V AC +/- 20%, 50 Hz
• 1 Second refresh rate
• Consumption data saved indefinitely during power failures.
• SANS 60950
• ICASA type approved

What's in the box:

• 1x NanoView Controller
• 1x NanoHub (To be fitted in DB)
• 5x 60A Current Transformers (CTs)
• 1x Data Communication Cable
• 1x Installation Guide / Programming Instruction
