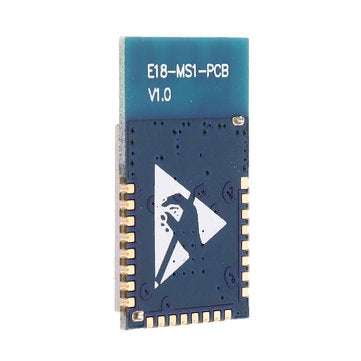

CC2530 Core Board CC2530F256 2.4G 4dBm 2.5mW Wireless Transceiver Module Network Zig bee Board

20 available / new

R422.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3614

92.91 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643375857

Specifications: 1. Model: E18-MS1 2. Operating frequency: 2405-2408MHz 3. Interface pins: 3*8*1.27mm 4. Operating voltage: 2.0V-3.6V DC 5. Communication level: 0.7VDD-5VDC 6. Transmit power: 4dBm (about 2.5mW) 7. Found Distance: 200 m (max) 8. Air velo city: 250Kbps 9. Emission current: 28mA (4dBm) 10. Receiving Current: 27mA 11. Transceiver Length: 1 ~ 103byte 12. Receiving sensitivity: -97dBm@250Kbps 13. Working temperature: -40 ~ 85 Degree 15. Humidity: 10% to 90% 15. Storage temperature: -40 ~ 125 Degree 16. Radio frequency chip : CC2530 NOTE: This module for the hardware platform, the factory without procedures, the user needs to be secondary development! Package Included: 1 x CC2530 Core Board CC2530F256 2.4G 4dBm 2.5mW Wireless Transceiver Module
