Features: 1. Transmit power 2.5mW (4dBm). 2. Receiver sensitivity-97dBm (BER = 10-2) . 3. The opening band, without application frequency, carrier frequency 2.4GHz. 4. High noise immunity and low error rate. 5. Air transfer rates of up to 250kbps. 6. Range of visibility, the reliable transmission distance up to 100 meters (PCB antenna), but also by IPEX interface to an external high gain antenna module that determines the distance from the antenna gain, the gain is doubled in size, distance doubled. 7. The range of visibility, the reliable transmission distance up to 100 meters (PCB antenna), but also by IPEX interface external high-gain antenna on the module that determines the distance from the antenna gain, the gain doubled in size, distance doubled. 8. Provides 16 channels, automatically selects the reliable channel of communication depending on the environment. 9. Power consumption: Receiving current a 27mA, emission current a 40mA. 10. Small size, light weight. 11. Using SoC, peripheral circuits, high reliability, and low failure rate. 12. Provides PCB board antenna, under normal circumstances can not matched antenna. Also provides an external antenna plug. 13. Adapted to 2.4GHz IEEE 802.15.4 and Zig Bee protocol applications, automatic network.
Integrated Performance 8051: Strong DMA channel 5 256KB in-system programmable flash memory, can be customized 32k, 64k, 256kB 8KB RAM Hardware support CSMA/CA is AES security coprocessor Battery monitoring and temperature sensor function 8-channel 12-bit ADC 2-channel UART IEEE 802.15.4 M A C timer, general-purpose timers (one 16 and two 8) 32 kHz sleep timer capture Watchdog Timer 21 General Purpose I/O pins (19*4 mA, 2*20 mA) Support online debugging
Applications: Family of intelligent control of industrial wireless remote meter reading, remote sensing, automated data acquisition system security, alarm hotel room equipment, wireless monitoring, access control systems, personnel location of traffic, street lighting control, logistics, active RFID, POS systems, wireless handsets

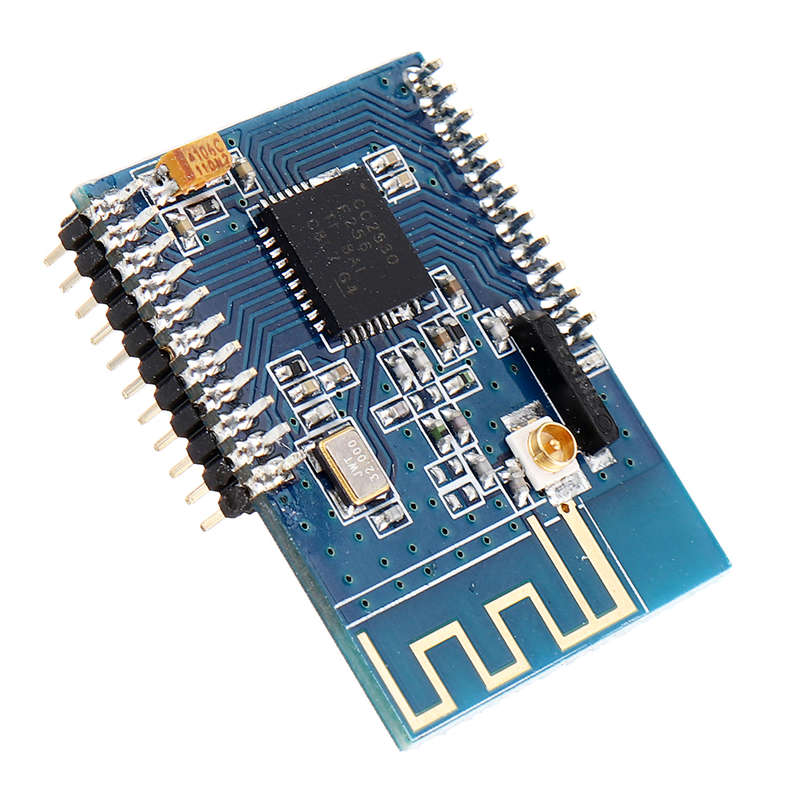

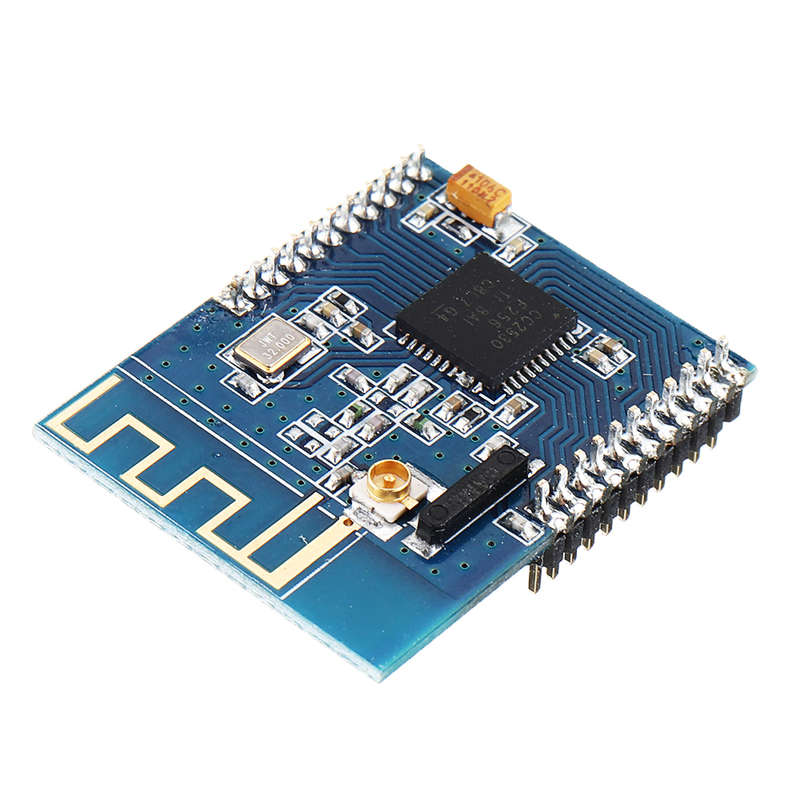

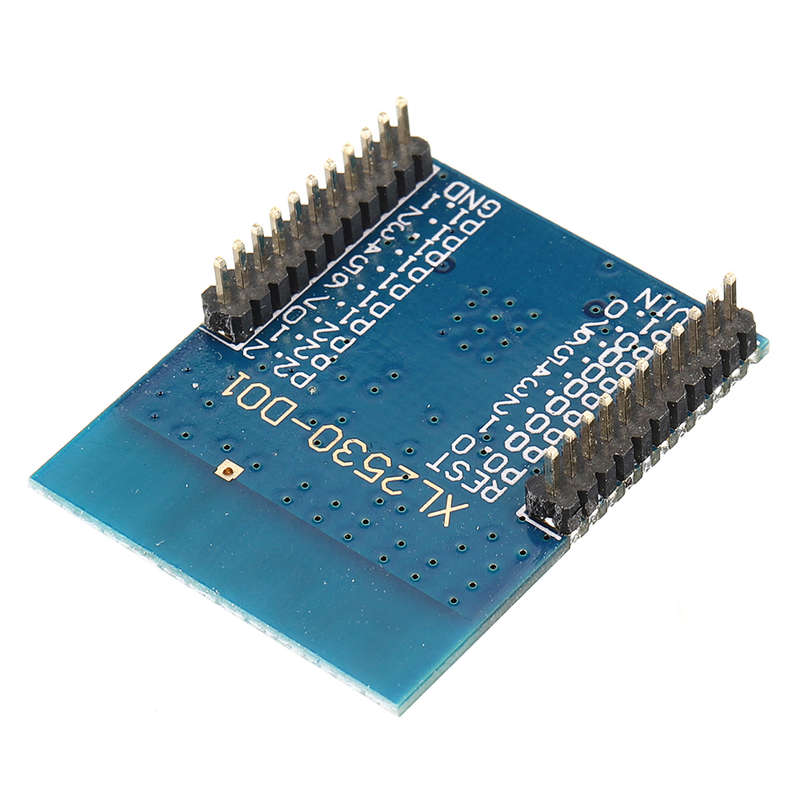

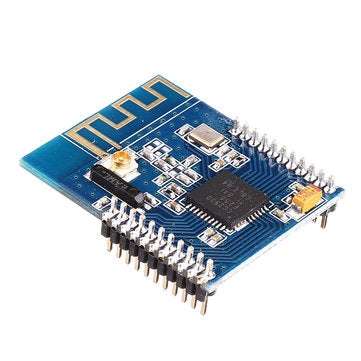

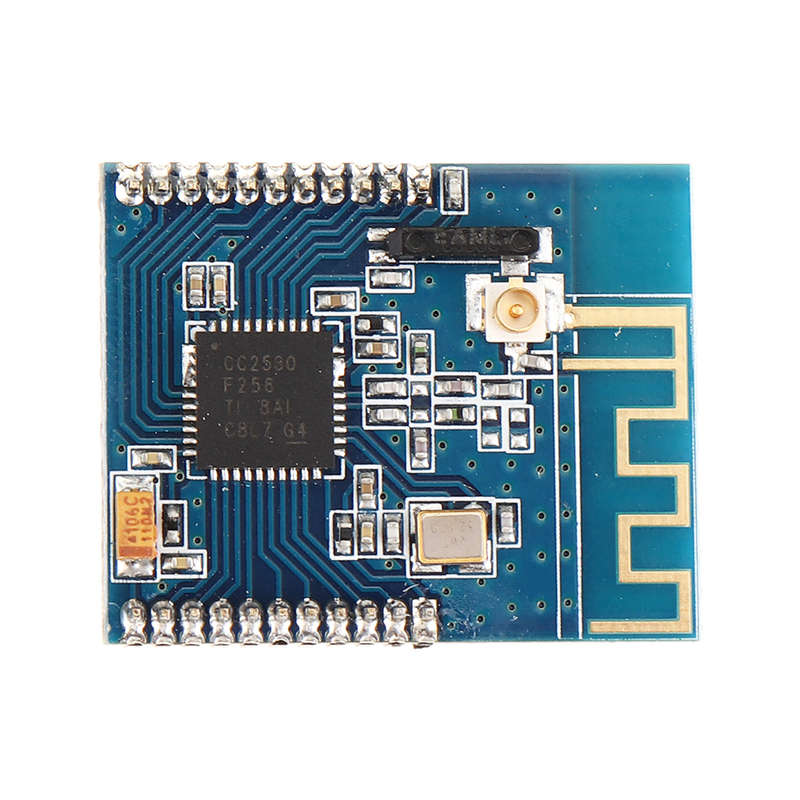

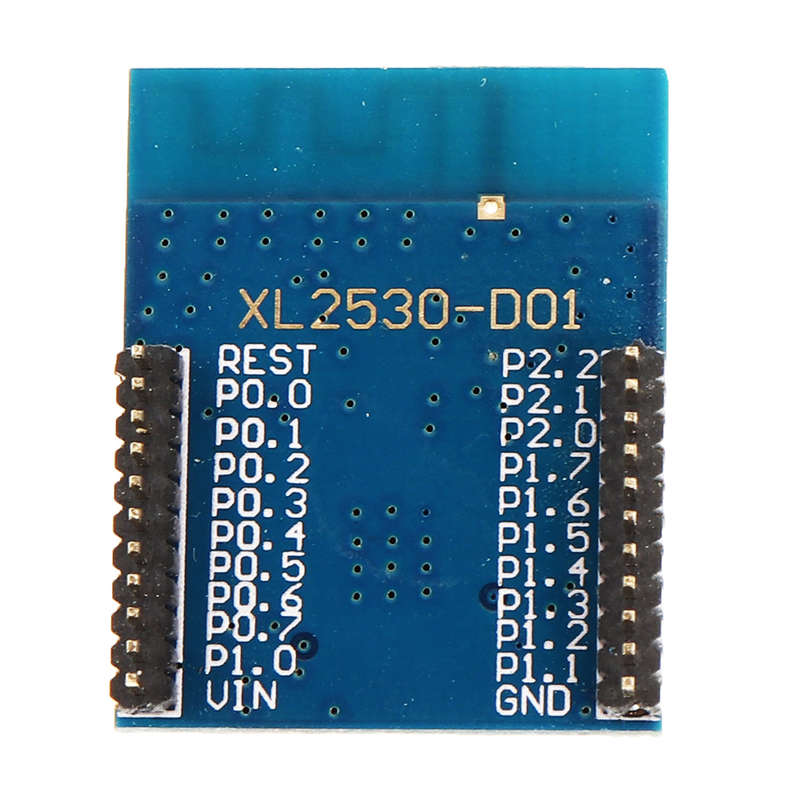

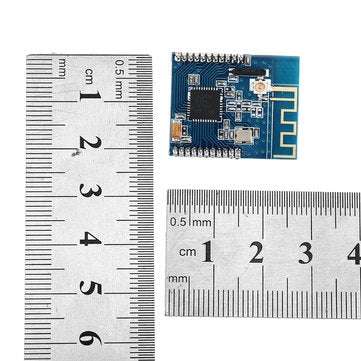

Package Included: 1 x CC2530 Wireless Module ZIG BEE Wireless Module
