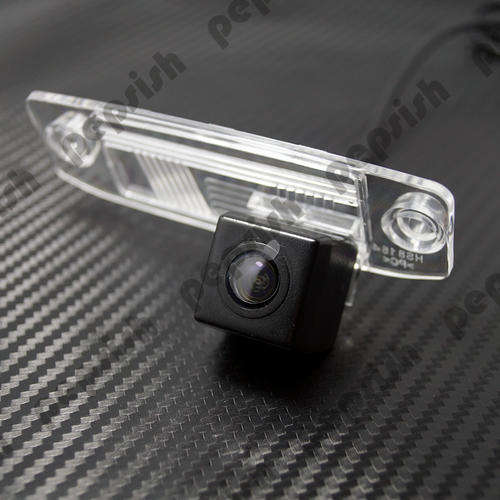

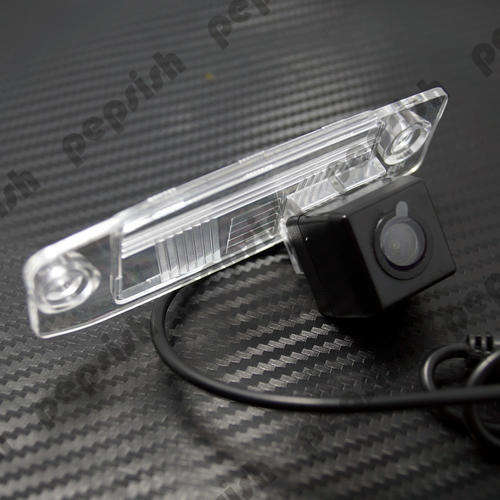

Special CCD Car Rear view Camera for:
Hyundai Sonata:2011–present
Hyundai Elantra:2011–present
Hyundai Genesis:2008-2012
Specifications:
Reverse Image/Mirror Image
Support Night Version,Use the original license plate lamp/light
Waterproof IP Rating: IP68

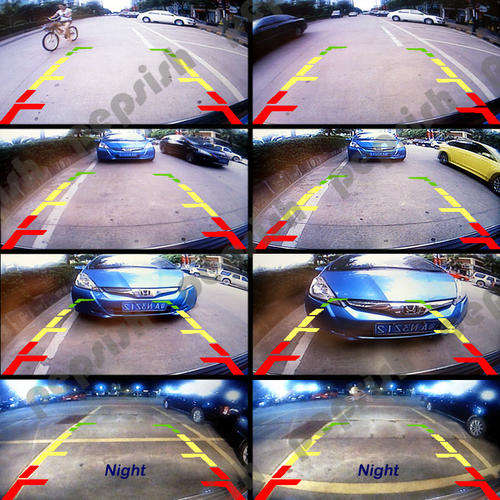

Distance reference grid line
TV System: NTSC/PAL(*if need PAL,please leave message to us)
Effective Pixels:NTSC:728*582(PAL:728*512)
View Angel:170 degree
Horizontal Resolution(TV lines):480TV Lines
Minimum Illumination:0.6Lux/F1.2
Current Consumption:Max 120mA
Power Supply:DC12V
Working temperature:-20C~70C,Max Rh95%
Storage temperature:-40C~80C,Max Rh95%
Item Include:
1 x Car Rear View Camera For Hyundai Sonata/Elantra
1 x Power Cord
1 X RCA Cable
How to Install:
(1)Take out your stock license plate light at the back of your car.
(2)Fix the camera to where the stock license plate light was.
(3)Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
(4)Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative.
(5)Connect the video cable of the camera to the extension cord.
(6)Connect the extension cord to your car monitor.
(7)You will see the images when your car is in reverse shift.
