CCM2 DC Motor Speed Controller 10V 12V 24V 30V 120W PWM Adjustable Volt Regulator Controller Switch

12 were available / new

R432.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3503

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

612361543

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

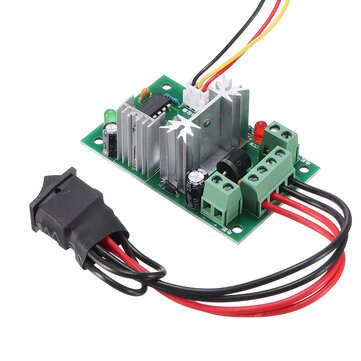

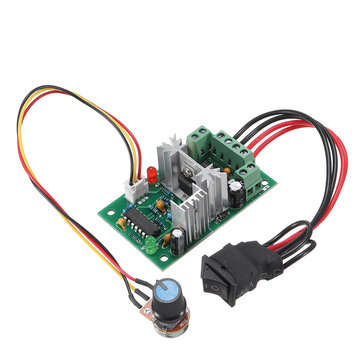

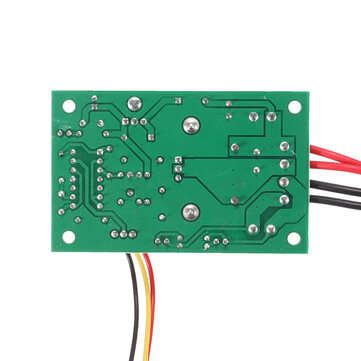

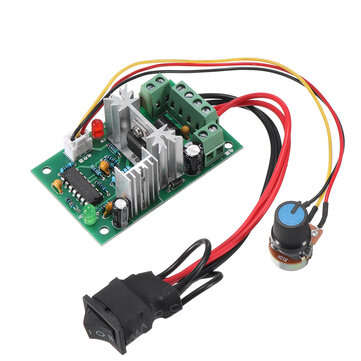

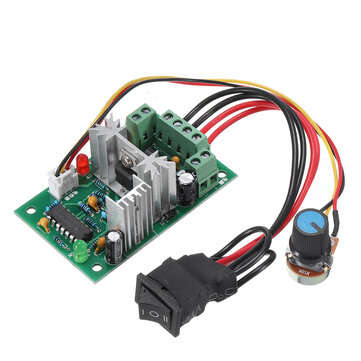

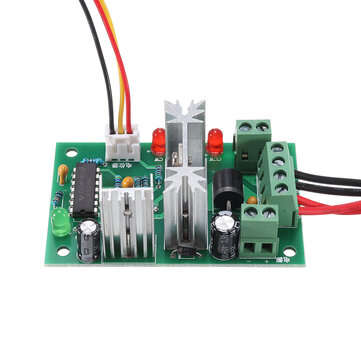

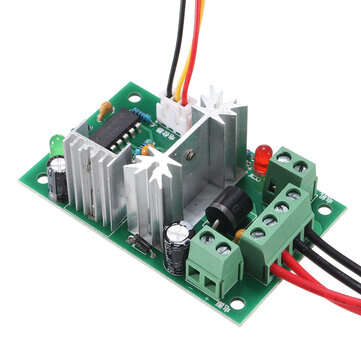

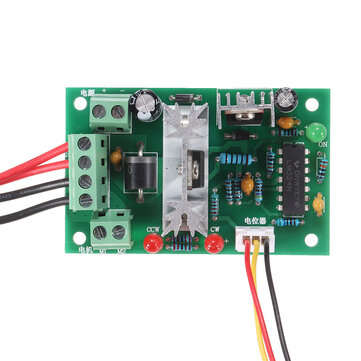

Description: CCM2 DC Motor Controller 10-30V with Adjustable Potentiometer, Positive and Negative Reversible Switch PWM DC Controller 120W

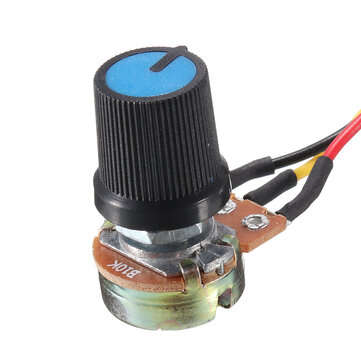

Specifications:? The resistance value of a resistor: B10K? Cable length: approx. 20cm/7.87``? resistor mounting hole: 8mm? Voltage: DC 10V-30V( wide range)? Working voltage: 12v*3A=36W/24V*3A=72W? Maximum up to 120W? Rated current: 3A(Maximum continuous output current)? Maximum current: 4A? Modulation range: 5%-95%? PWM frequency: 500HZ? Module size: approx.74*47*28mm/2.91*1.85*1.10``?
Features:? Using PWM speed control technology, with high conversion efficiency, wide speed range, and stable performance.? Adopting imported semiconductor chips, and had tested the voltage, current, function etc. So the circuit is stable and reliable.? Overload short circuit protection and the current no more than 30 seconds.? Potentiometer is used to speed up the positive and negative switch for forward, reverse, and stop.?
Note:? 1. DC motor speed control input is DC, can not directly connect AC current (such as the 220V AC) otherwise it will burn.? 2. The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.? 3. Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can change the direction of the alignment.? 4. The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.? 5. Please allow 1-3mm differs due to manual measurement.? 6. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.?
Package Included: 1 x Controller
