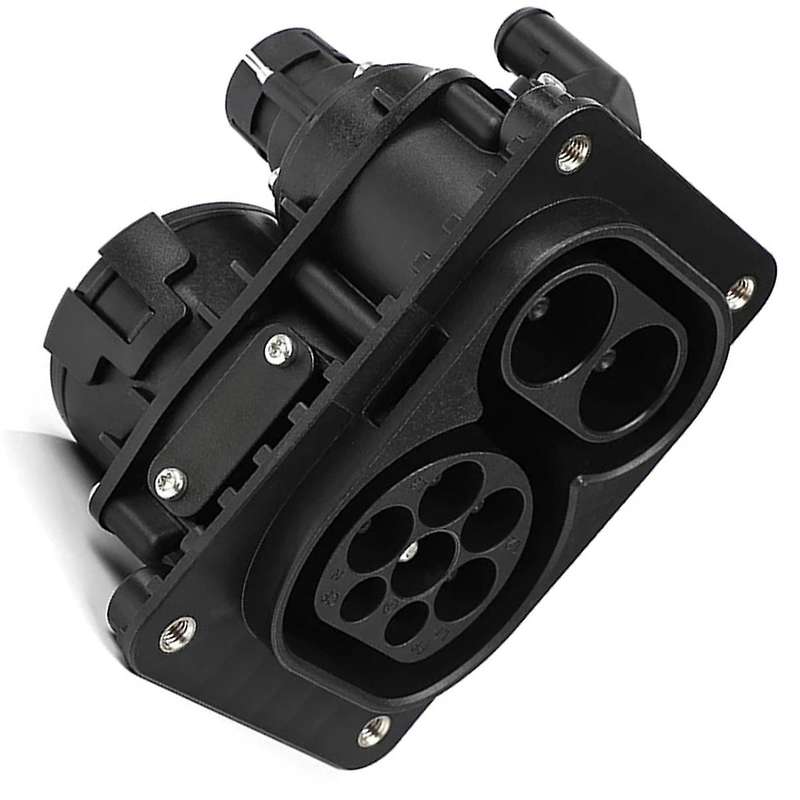

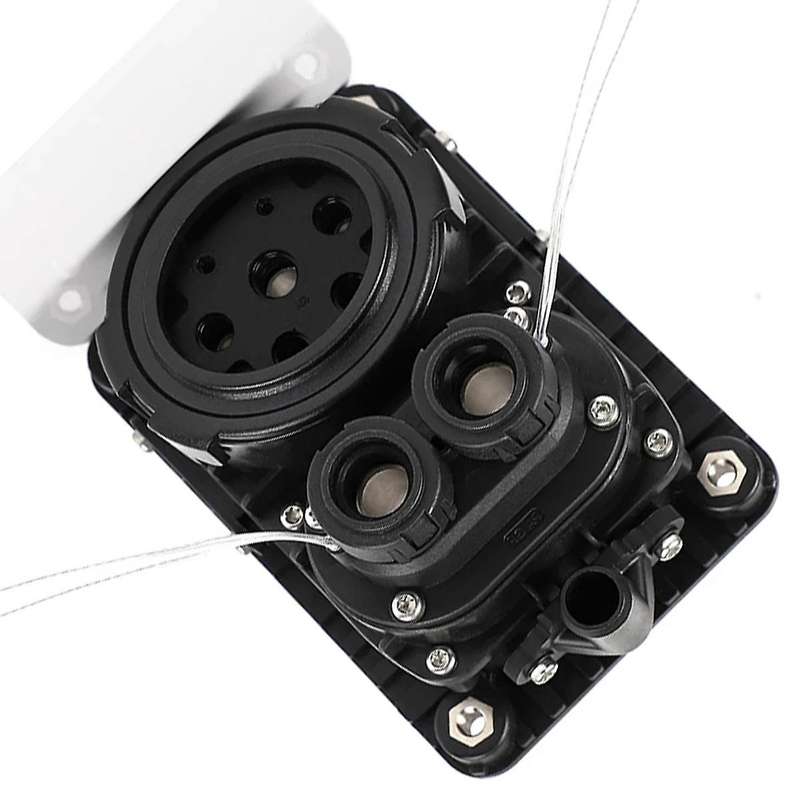

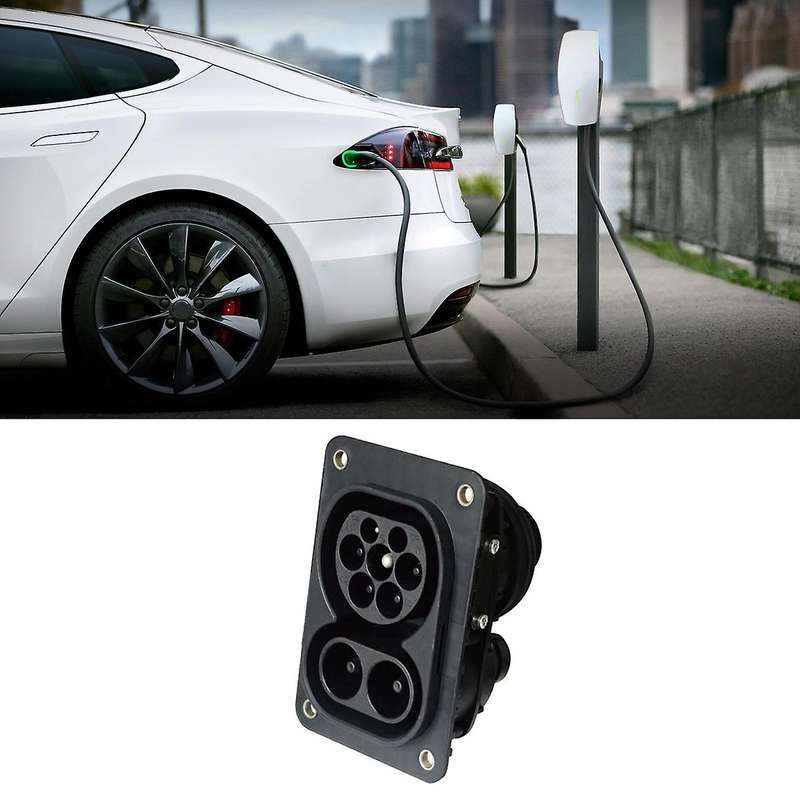

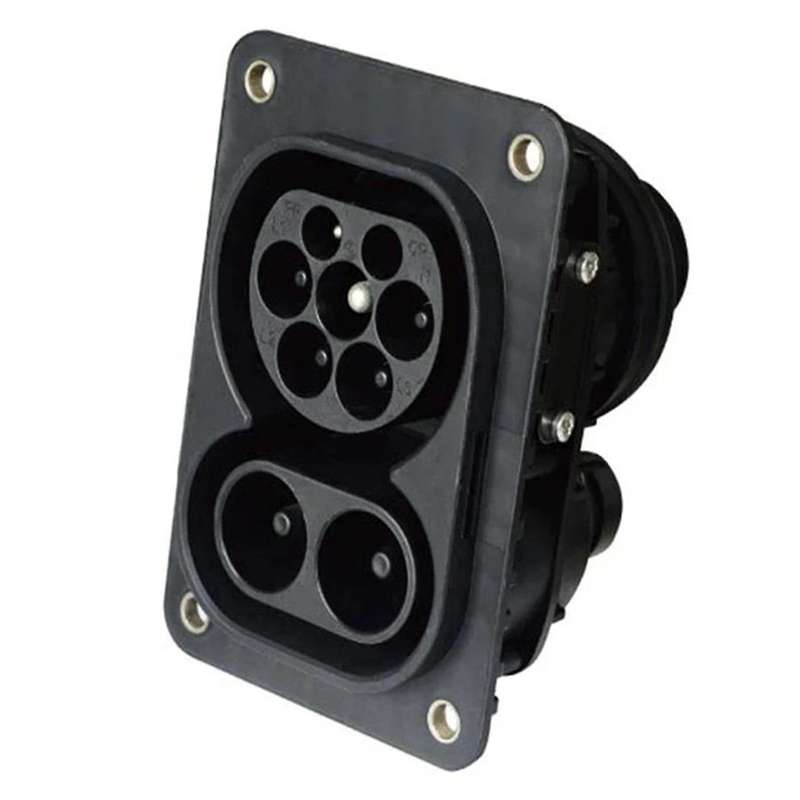

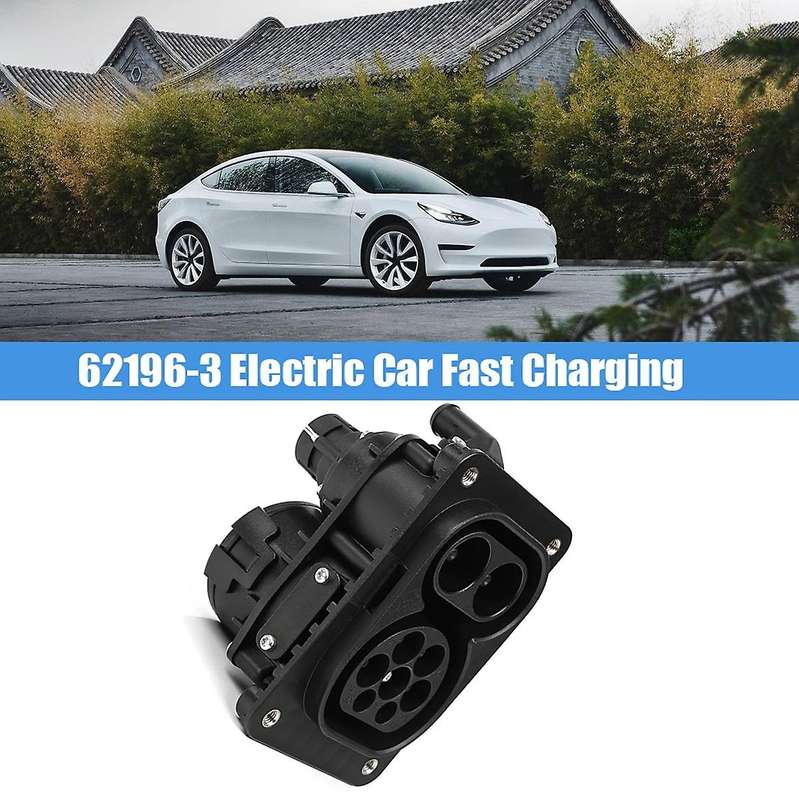

Ccs Type 2 Ev Female Combo 2 Socket 1000v 62196-3 Electric Car Fast Charging Dc150a 850v Dc

1. Comply with 62196-3IEC 2011 SHEET3- standard2. The pin head is designed with safety insulation to prevent accidental direct contact with human hands3. protection performance, the protection level reaches IP55Mechanical behavior: Mechanical life: no-load plugging and unplugging 10000 Electrical performance:1. Rated working DC current: 150A DC2. Working voltage: 1000V DC3. DC maximum charging power: 127.5KW4. AC maximum charging power: 41.5KW5. Insulation resistance: 2000M (DC1000V)6. Terminal temperature rise: Less than 50K7. Withstand voltage: 3200V8. Contact resistance: 0.5m Max temperature: Working environment temperature: -30~+50 Features: Electric Vehicle ChargerApplication: Electric Car ChargerStandard: CCS Combo 2 Socketcolor:BlackMaterial:ABS+MetalPackage Contents:1 x CCS2 socketOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
