Features:

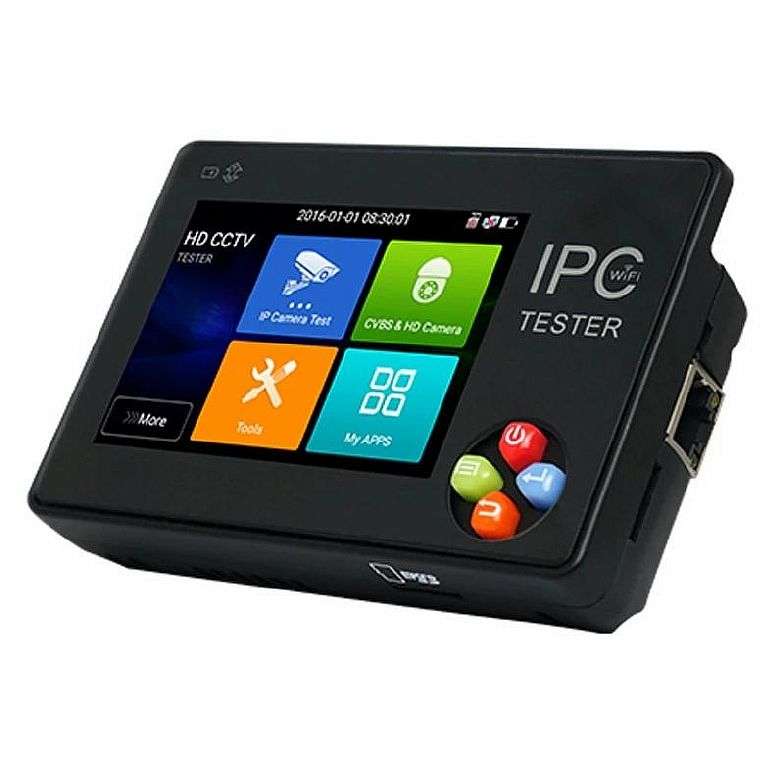

- 3.5-inch touch screen, 480*320 resolutions.
- New hardware decoding,4K, H.265/H.264 camera image display by mainstream testing.
- Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.
- Hik test tool: Activate Hikvision camera, display image from the camera, modify IP, user name and password parameters, etc.
- Network port:10/100/1000M auto adjust, RJ45
- WIFI: Built-in WIFI,speeds150M, allows you to connect to a wireless network and view IP cameras.
- H.265 Mainstream test: New hardware decoding,4K, H.265/H.264 camera image display by mainstream testing.
- IP discovery: Auto-scan the whole network segment camera IP
- DH test tool: Dahua camera test, modify IP, user name and password parameters, etc.
- Analog video test:1 channel BNC Input & 1 channel BNC Output, NTSC/PAL (Auto adapt).
- Zoom Image: Supports Analog and IP camera image zooming & movement.
- Snapshot, Video record, and playback: Capture current images and record live video as a JPG file. The media player will view photos and playback videos.
Other functions:
Specifications:
- 12V/1A power output: Output DC12V/1A power to the camera.
- Theme: Self-define icons, desktop and application interface background, modify interface sliding effect.
- Audio test:1 channel audio signal input to connect headphones.
- PTZ control: Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
- Data monitor: Captures and analyzes the command data from the controlling device, also can send hexadecimal.
- Network test: IP address scan, link scan, and Ping test. Quickly search the IP camera's IP address on your network.
- External power supply: DC 5V 2A
- Battery:Built-in 3.7V Lithium polymer battery ,3000mAh.
- Rechargeable: After charging 3~4 hours, the normal working time 8 hours.
- Operation setting: Capacitive touch screen, OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian or Polish, etc.
- Working Temperature:-10?---+50?.
- Working Humidity: 30%-90%
Application:
- CCTV system installation and maintenance
- Network cabling project installation and maintenance
