Features
3.5" high definition LCD display, 960ï¼H)× 240ï¼Vï¼resolution
Digital Multi-meter, Voltage, Current, Resistance and Capacitance measuring, Continuity testing, Diode testing
DC12V/1A power output for camera
Video Signal Intensity Testing
Audio input testing
PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position Video displaying. Automatically adapts and displays the video format of NTSC/PAL
Multi-protocol. Supports more than twenty PTZ protocols.
For example, PELCO-P, PELCO-D, SAMSUNG etc
PTZ address scanning, search up the ID of PTZ camera
Lithium Ion Polymer Battery (3.7V DC3000mAh).It can last 12 hours for normal use after charging for 4 hours
The Protocols it support: Pelco_D, YAAN, YAAN-O, Samsung, Panasonic, Lilin-FAST, Linlin-MLP2, Molynx, Minkking A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, PEARMAIN, Vicon, Vcltp, DH-YTC06, SANYO-SSP, Santachi, BOSCH OSRD, TeleEye DM2, HD600, Hikvision, Kalatel 304, Kalatel ASC, AD 168(M-B), AD manchest, Minking B01, ALEC, Pelco P

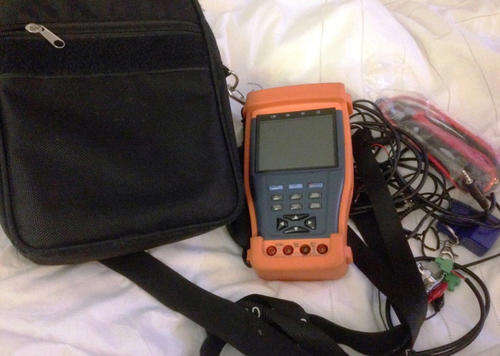

Package Included:
1 x Video Tester
1 x Power Adapter
1 x LAN Cable Tester
1 x RS485 Data Cable
1 x 12V/1A Power Cable for Camera
1 x Audio Testing Cable
1 x Test lead
1 x Carrying Bag
