Description

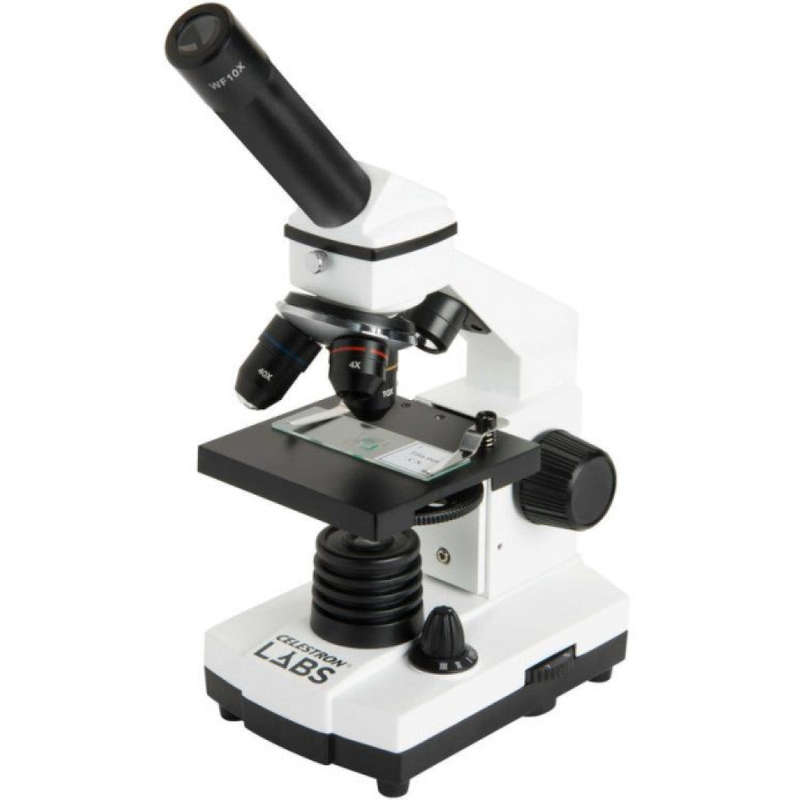

The Celestron Labs CM800 Compound Microscope offers today's latest advances at an economical price, including upper and lower LED lighting that provides bright, natural colors, yet stays cool to the touch. Two included eyepieces (10x and 20x) and 3 objective lenses (4x, 10x and 40x) allow for magnifications of 40x, 80x, 100x, 200x, 400x and 800x.
Strong and stable thanks to its all-metal construction, this microscope features an adjustable, stage with metal clips to center your specimen slides. The 10 included prepared slides guarantee exciting discoveries right out of the box. The simple condenser with rotating disc adjusts the lower illumination for enhanced viewing. All these features make the CM800 an excellent tool for labs, schools, field use and more.
Features
Lab-ready compound microscope with 800x power
10x and 20x eyepieces with 4x, 10x and 40x objective lenses
View specimens at 40x, 100x, 250x, 400x, 800x magnification
Built-in, adjustable, upper and lower LED illumination
3 AA batteries included for field use
10 prepared slides included
Specifications
Type of Microscope Compound
Head Monocular with 45 incline
Eyepiece(s) Magnification (1) WF 10x, (1) WF 20x
Eyepiece(s) Diameter 23.2mm (.91")
Nosepiece triple, rotational
Objective(s) Type Refractive
Objective(s) Standard JIS
Objective(s) Magnification (3) 4x/10x/40x, all achromatic
Objective(s) Thread WJ3/5"-1/40"
Focus Type(s): Rack and pinion, coarse focus only
Focus Travel (per rotation 8mm (.31")
Magnification Range 40x to 800x (40x, 80x, 100x, 200x, 400x, 800x)
Illumination Type LED
Illumination Position(s) Lower and upper
Illumination Adjustability Mechanism Dial, both upper and lower offer adjustable intensity
Power Source Universal AC 100-240V adapter and interchangeable plugs of type A, C, G, and I configurations
Battery Option (3) AA (Included)
Stage Plain stage with metal clips 88mm x 88mm (3.46" x 3.46")
Condenser Type None
Condenser N.A. 0.65
Stage Diaphragm Simple, rotating disc with six aperture sizes
