Cellphone Mobile to Amp RCA via Bluetooth Wireless | Digital to Analog Audio Converter

Cell phone / Mobile Phone to RCA Amp via Bluetooth Wireless | Digital to Analog Audio

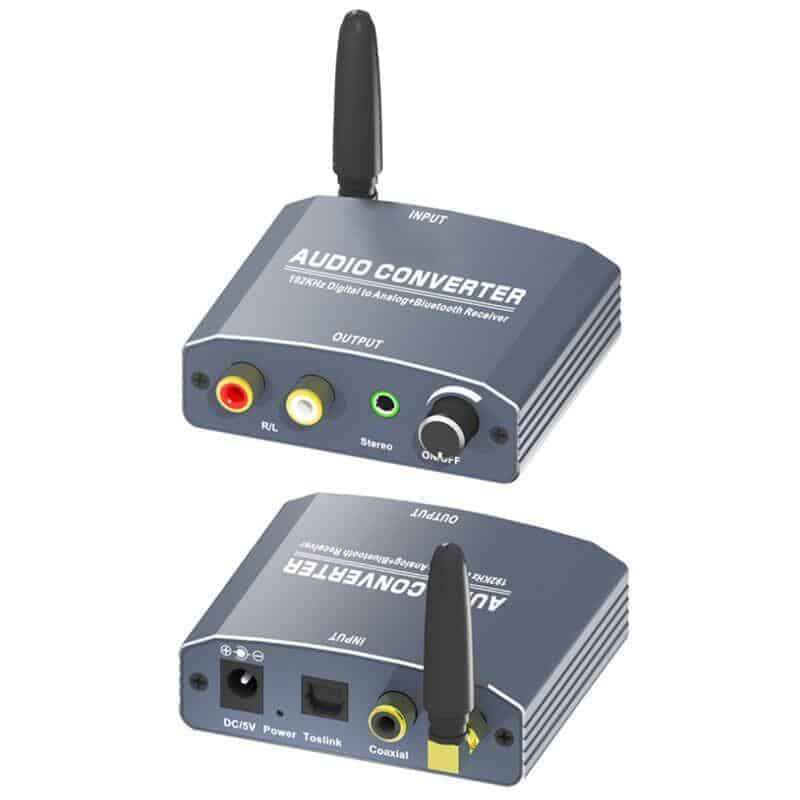

Convert the digital audio signal from any device with Bluetooth (BT), Toslink or Coaxial to Analog RCA or 3.5mm AUX Jack Plug. Incorporates a built-in IC amp with Volume control to compensate for any volume level losses during conversion.

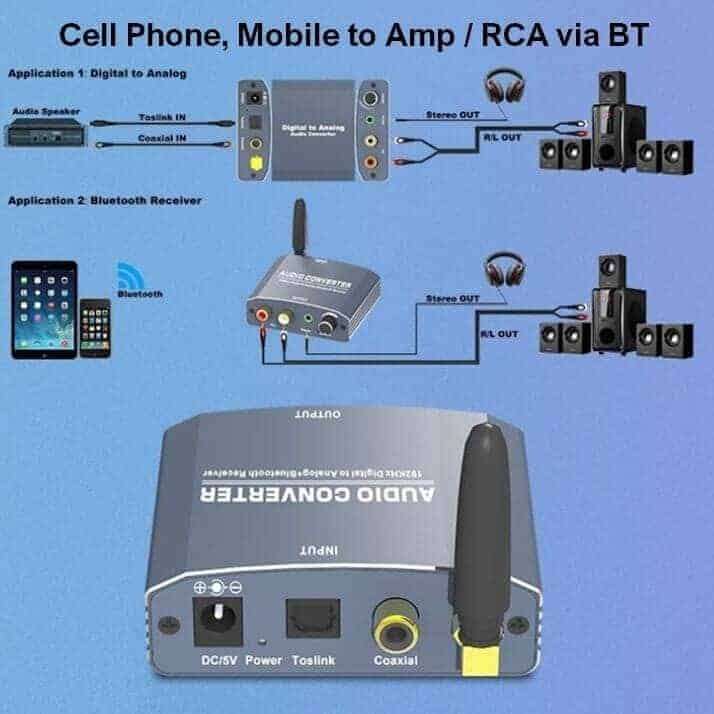

• Cellphone to amp. Wireless via Bluetooth and RCA (L+R) analog audio
• Laptop to amp. Wireless via Bluetooth and RCA (L+R) analog audio
• Toslink/ SPDIF to amp via cable to RCA (L+R) analog audio
• Coaxial to amp via cable to RCA (L+R) analog audio

Input Priority Selection

The Bluetooth overrides the wired connection on pairing. Be sure to disconnect your Bluetooth device to resume wired connections. Priority 1) BT 2) Toslink 3) Coaxial

How to Install & Connect Bluetooth

• Turn the Volume to OFF (click), attached the BT antenna + 5V power supply
• Connect the output RCA (L+R) or 3.5mm AUX stereo jack plug to your analog stereo amplifier
• Switch ON the unit by turning the volume button (initially ensure low 'volume levels' on all devices)
• Enable Bluetooth on your Mobile
• 'Search & Pair' with T-609B, play your favorite tunes ...default PW is 0000
• Done ...enjoy!

Technical Specifications:

• Convert the audio digital signal (fibre/coaxial & mobile via Bluetooth) into an analog output signal
• Supports three input option: 1. Bluetooth wireless 2. toslink/ spdif fibre optical cable 3. coaxial RCA cable
• Support the latest Bluetooth BT5.0 standards, sync mobile device audio signal reception;
• Support sample rates of 32,44.1, 48,96 and 192KHz
• Support for digital audio 5.1/7.1 channels, DTS/AC3 and most other audio formats
• Input 24-bit S/PDIF signal into left and right channels and 3.5mm stereo
• Built-in amplifier IC, support volume amplification, with volume adjustment function;
• Reduce audio noise and optimize audio signal transmission.
• Power Supply 5VDC, 1A (included)

What's in the box?

• 1x BT DAC with Volume
• Power Supply 5VDC, 1A
• User Manual
