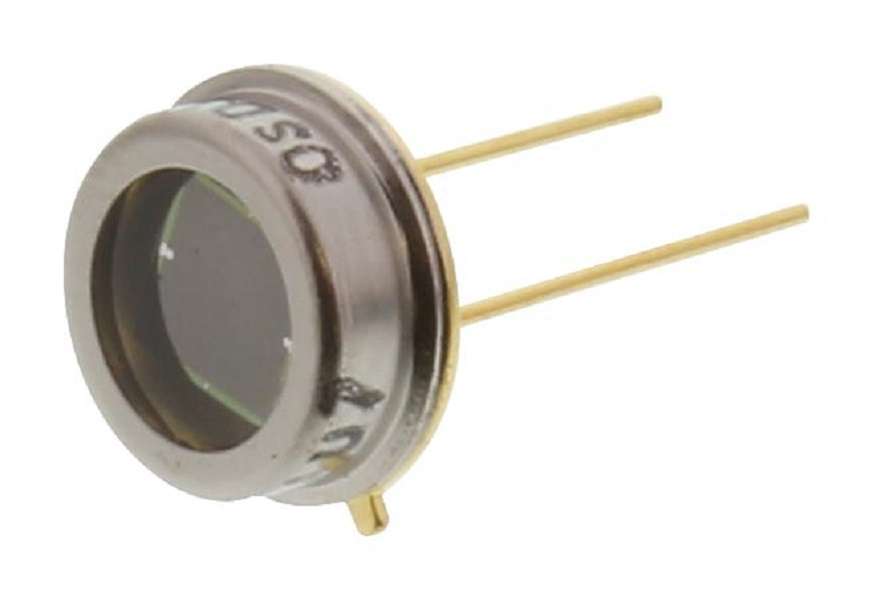

Centronic (OSD15-5T.) Photodiode, 1 nA, 900 nm, TO-5-3

Centronic (OSD15-5T.) Photodiode, 1 nA, 900 nm, TO-5-3

New 1018 available
R1,305.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
548730
Bob Shop ID
666201595
Product OverviewThe OSD15-5T is a 15mm² General Purpose Silicon Sensor offers high bluesensitivity coupled with high shunt resistance and low dark leakage current. Theseries 5T sensor is particularly suited to low light level applications from 430to 900nm where the highest signal to noise ratio is important. It may beoperated photovoltaically or with a reverse bias of up to 12V where lowercapacitance is needed. The 5T range provides the most economic solution for allapplications where high speed of response above 800nm is not critical.5nA Maximum dark currentApplicationsSensing & InstrumentationProduct InformationNo. of Pins: 3PinsDiode Case Style: TO-5Wavelength of Peak Sensitivity: 900nmDark Current: 1000pAOperating Temperature Min: -25°COperating Temperature Max: 75°C
