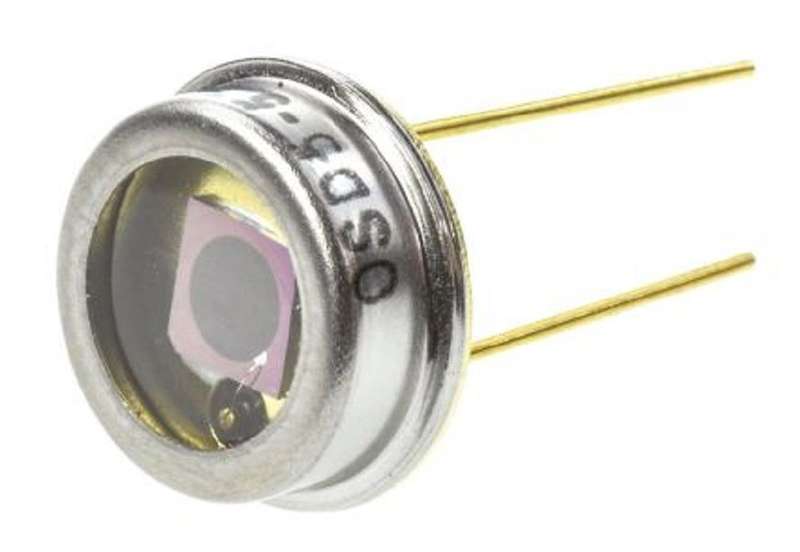

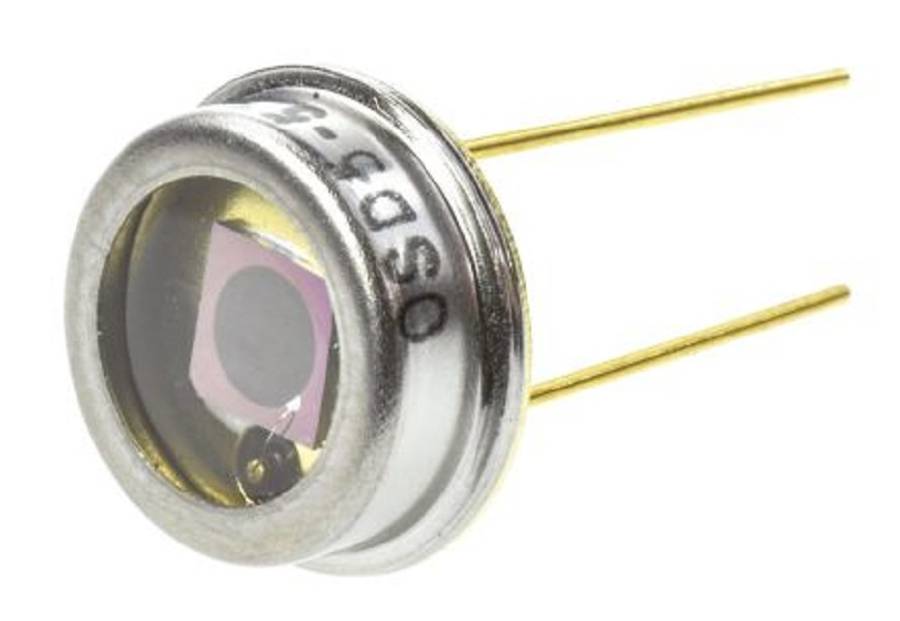

Centronic (OSD5-5T.) Photodiode, 2 nA, 900 nm, TO-5-2

Product OverviewThe OSD5-5T is a Series 5T Silicon Photodetector offers high blue sensitivitycoupled with high shunt resistance and low dark leakage current. It isparticularly suited to low light level applications from 430 to 900nm where thehighest signal to noise ratio is important. It may be operated photovoltaicallyor with a reverse bias of up to 12V where lower capacitance is needed. It issuitable for all applications where high speed of response above 800nm is notcritical.Blue sensitive for biased or unbiased operationApplicationsSensing & Instrumentation, IndustrialProduct InformationNo. of Pins: 2PinsDiode Case Style: TO-5Wavelength of Peak Sensitivity: 900nmDark Current: 2000pAOperating Temperature Min: -25°COperating Temperature Max: 75°C
