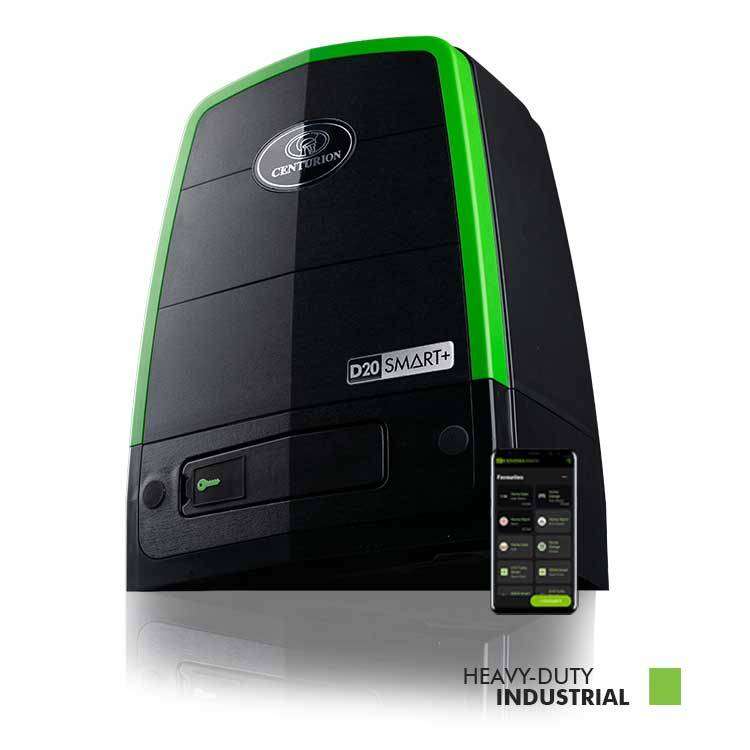

The Centurion D20 SMART+ is a heavy-duty industrial sliding gate operator designed for demanding commercial and industrial entrances where high volume and consistent uptime are required.
1 x Centurion D20 SMART+ Motor
1 x Internal LCD Control Card with Bluetooth and Wi-Fi connectivity
2 x Keys for Manual Override Lockable Lever
Note: This unit excludes the battery and the base plate.
High-volume capability supports up to 750 daily operations for continuous vehicle movement.
Industrial-strength drive handles gates weighing up to 2000kg and lengths up to 25m.
Smart connectivity via MyCentsys Pro and Remote apps for remote configuration, diagnostics, and monitoring.
Dual-technology communication with integrated Bluetooth Low Energy (BLE) and Wi-Fi (2.4GHz).
Enhanced battery-driven system (24V) provides continued operation during power outages.
Intelligent anti-tamper notifications and real-time alerts sent directly to your smartphone.
Flexible accessory integration with six configurable inputs/outputs (four low-current, two high-current).
Secure 1500-remote code-storage capacity with selective add and delete functions.
Input Voltage: 110V - 240V AC @ 50/60Hz
Motor Voltage: 24V DC
Motor Power Supply: Battery-driven (Standard 2 x 12V 7Ah)
Maximum Gate Mass: 2000kg
Maximum Gate Length: 25m
Gate Speed: Up to 18m/min (varies with load)
Maximum Operations per Day: 750
Duty Cycle: 45% (with mains present)
Starting Push Force: 52kgf
Rated Push Force: 39kgf
Drive Pinion: 13T Module 4
Receiver Type: Code-hopping multichannel receiver
Receiver Frequency: 433.92MHz
Degree of Protection: IP54
Operating Temperature Range: -15°C to +50°C
