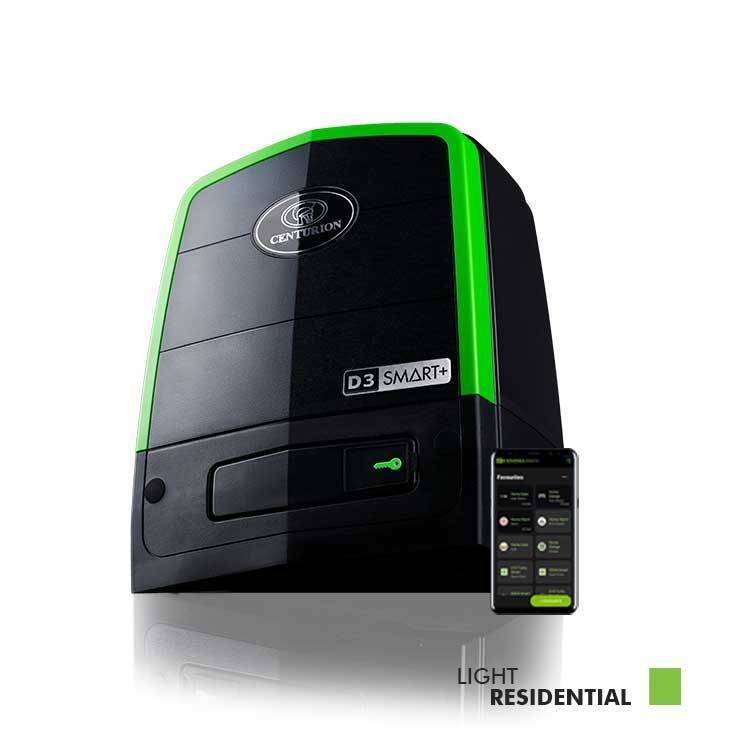

The Centurion D3 SMART+ is a high-performance 12V DC sliding gate motor designed for domestic gates weighing up to 300kg, offering enhanced speed and intelligent cellular integration.
1 x Base Plate
1 x Centurion D3 SMART+ 12V DC Motor
1 x Internal 12V 7Ah Battery
2 x Centurion Nova 4-Button Transmitters (TX4)
2 x 2m Steel Gear Rack
Enhanced Speed: Capable of moving gates at speeds up to 24 metres per minute for improved security and convenience.
SMART Technology: Easy setup and management via the MyCentsys Pro mobile application.
Battery Backup: Reliable operation during power outages with an integrated 12V battery.
Intelligent Logging: Provides detailed diagnostic and event logging for easier maintenance.
Robust Design: High-torque motor designed to handle gates up to 300kg in domestic environments.
Vibration Sensor: Integrated sensor that can be linked to an alarm to detect tampering or forced entry attempts.
Input Voltage: 90V - 240V AC +/- 10% @ 50Hz
Motor Voltage: 12V DC
Motor Power Supply: Battery driven (Standard 7Ah)
Maximum Gate Mass: 300kg
Gate Speed: Up to 24 m/min
Maximum Daily Cycles: 20 Cycles per day
Duty Cycle: 20%
Operations in Standby with 7Ah Battery: Up to 30 operations
Collision Sensing: Electronic
Operating Temperature Range: -15°C to +50°C
Protection Rating: IP54
Receiver Type: Centurion Nova Code-hopping (433.92MHz)
Receiver Capacity: 1500 Transmitters
