Centurion D5 Evo - gate motor Kit

Centurion D5 Evo Kit

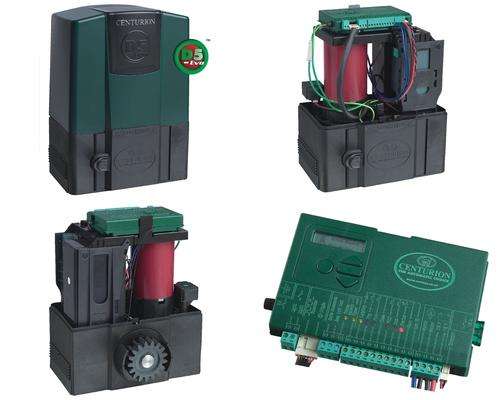

DOMESTIC AND LIGHT-INDUSTRIAL SLIDING GATE OPERATOR

The tried and tested D5 operator uses a strong DC motor, and oil lubricated gearset, and comfortably handles gates up 500kg. Its supplied standard with a 2Amp charger allowing it to be used in both domestic and light industrial applications, with a maximum daily usage of 150 operations.

It has been legendary in the field of domestic sliding gate automation. Capable of opening an average 4m gate in less than 14 seconds, and this combined with CENTURION’s unique PIRAC (passive infrared auto close) mode that closes the gate the moment a vehicle has driven through the entrance, it offers the highest level of security and convenience for any home and business.

Added to it comes standard with battery-back up ensuring that you’ll never be left outside in the event of a power failure. __________________________________________

Kit includes :

•     Gate Motor , baseplate , nuts and bolts


•     1 x 12 V Battery

•     4 meter rack


•     2 x Centurion Nova 4 button remotes

Main features :

•     Battery backup

•     Potent push force

•     Intelligent speed control

•     Rapid and smooth opening and closing

•     Exceptionally easy system set up via LCD user interface

•     NOVA multichannel receiver

•     Multiple operating features including Alarm Modes


•     Integral ChronoGuard timer functionality

Specifications :

Input voltage                                               220 - 240V AC +/-10%, 50Hz
Motor voltage                                              12V DC
Push force – rated                                       17kgf
Gate speed (at 17kgf)                                  18m/min
Collision sensing                                         Electronic
Duty Cycle  – mains present                       50%
Daily operations - max                               125
Gate mass - max                                         500kg
Onboard receiver specification                   NOVA code-hopping
