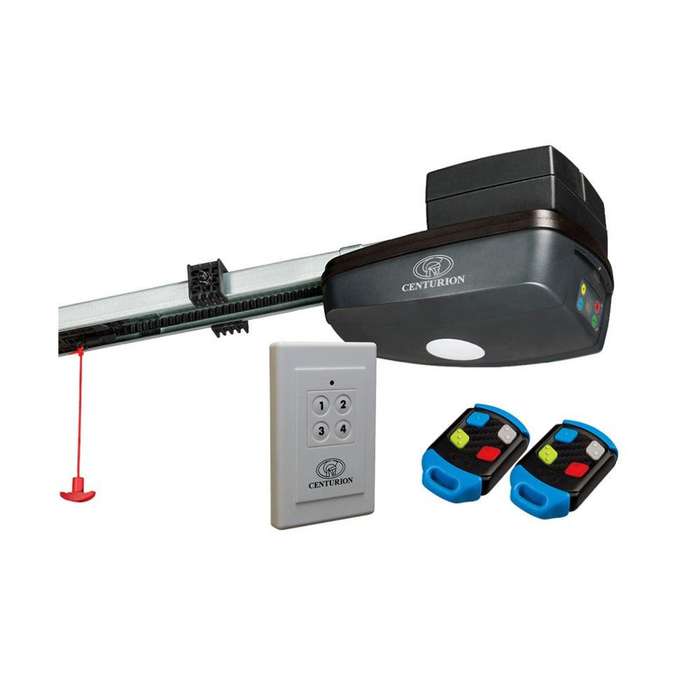

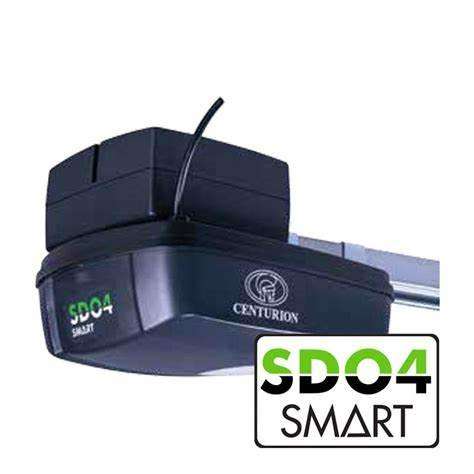

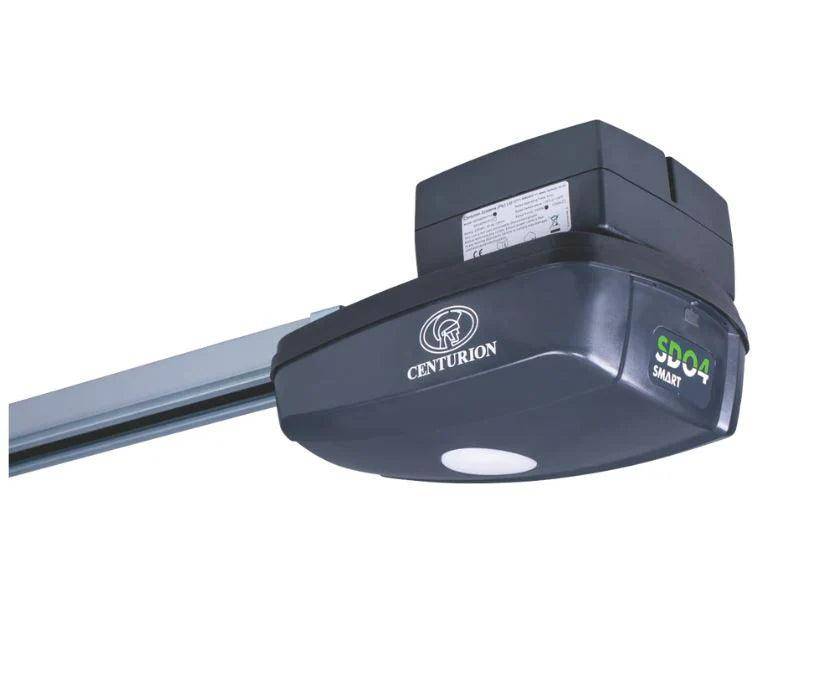

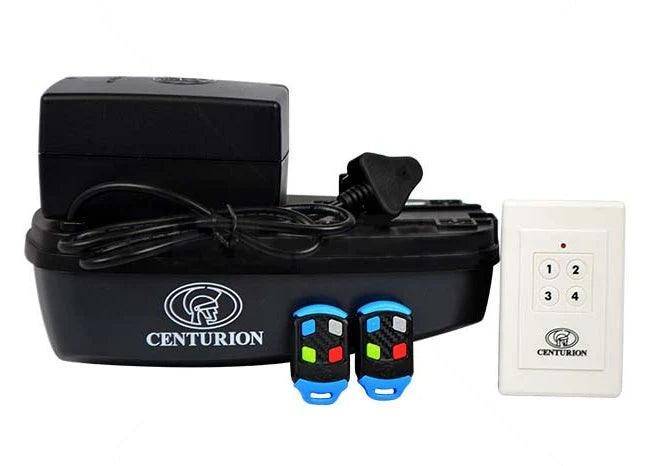

CENTURION GDO SDO4 SMART T12 SECTIONAL KIT

Main features:

• Connecting you to convenience with smartphone integration
• Redefining the installation experience with the easiest and most intuitive electronic and mechanical commissioning of any garage motor in the SDO4's class
• Always-on reliability
• Advanced safety and obstruction-detection technology for more peace of mind
• Adjustable speed on tip-up doors
• Compatible with Photon SMART wireless beams — easier and more cost-effective than ever before to fit safety beams
• The ultimate in flexibility with programmable IOs
• App-based management of remote controls
• Industry-leading security features including tamper detection and intelligent door status monitoring

SPECS:

• Input voltage - 230V AC +/-10% @ 50/60Hz
• Motor voltage - 24V DC
• Motor power supply - rated - 100W DC
• Motor supply - Battery supply 2 x 3.4Ah 12V DC
• Maximum door width - 6.5 meters
• Maximum door area - 15 Square meters
• Maximum push/pull force - 50kgf
• Maximum lifting capacity - 1200N
• Operations in standby mode - Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries.
• Maximum operator travel speed - 9m/min
• Door travel adjustment - Physical end-stops (Automatic limit set)
• Safety obstruction force system - Built-in menu
• Light - LED 2W
• Autoclose 2 - Menu Selectable
• Infrared safety beams - Menu Selectable (Optional but recommended)
• Onboard receiver type - Code-hopping single channel
• Receiver code storage capacity - 20x 4-Button Transmitters
• Receiver frequency - 433.92Mhz
• Degree of protection - IPX0 (For interior use only)
