CGJ100M 1.8-50mhz Portable Automatic Antenna Tuner 1-40W USB Rechargeable with 0.91inch OLED Display

20 available / new

R1,758.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3478

93.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641119969

Description:

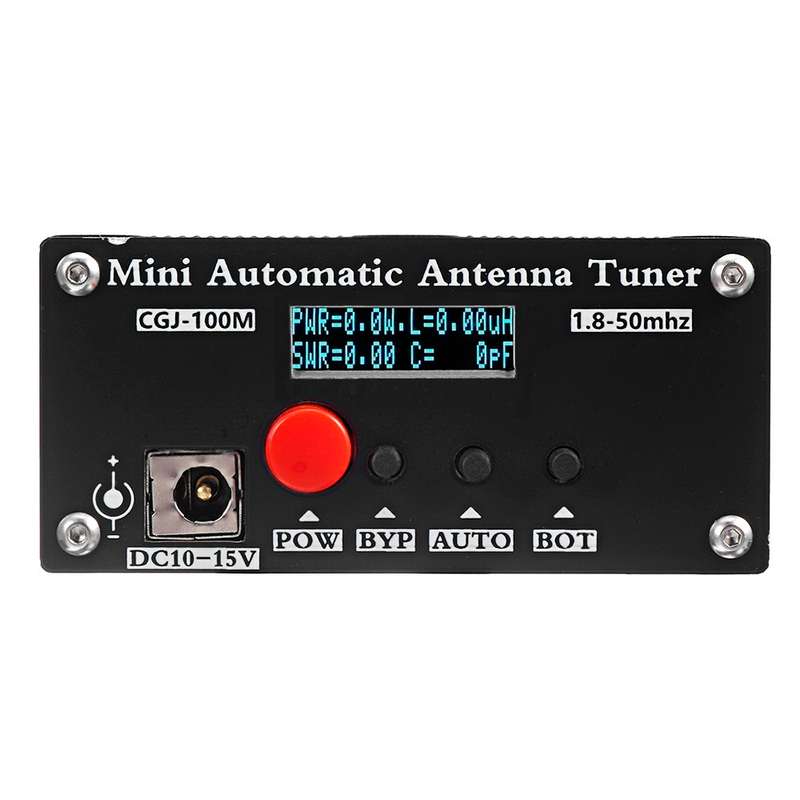

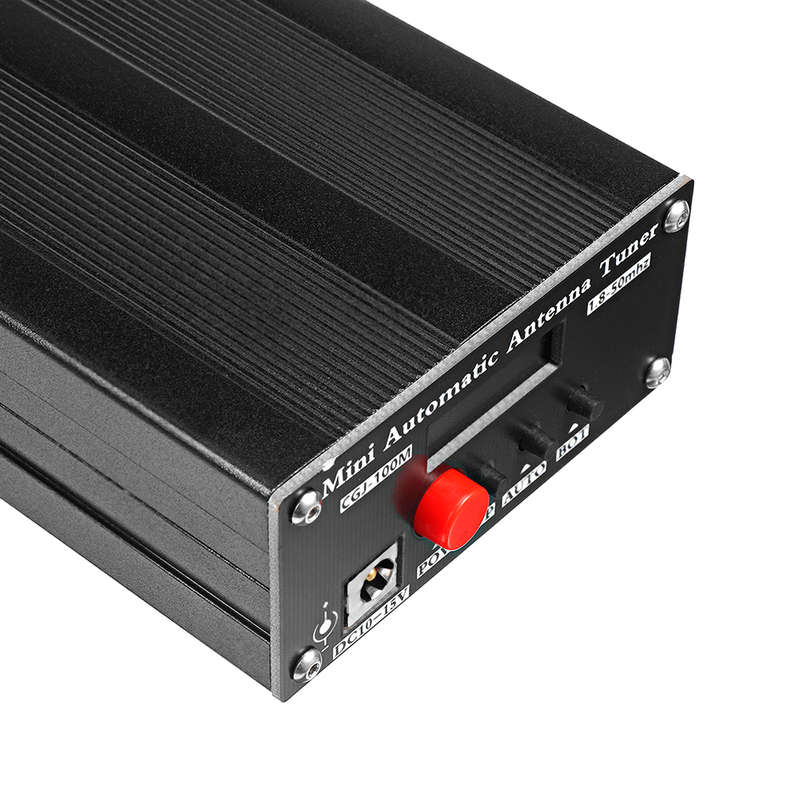

The device contains a set of 7 capacitors and 7 inductors, which enables it (with the largest configuration) to work effectively in a wide frequency band, overlapping the amateur radio HF band of 1.8-50mhz. Power supply :DC 10-15V Maximum current consumption: 400ma Maximum working throughput: 40W Maximum possible measurement power: 50W Minimum power required to start tuning: 1W The smallest possible measurement power: 0.1W Steps for measuring power up to 10W: 0.1W Measurement procedure for power higher than 10W: 1W Power measurement accuracy: 10% Maximum installation inductance: 8.53uH Minimum installation inductance step length: 0.05uH Maximum installation capacitance: 1869pF Minimum installation capacitance step length: 10pF The number of panel buttons is 4: power supply POW, BYP pass-through, AUTO automatic, BOT function Display: 0.91inch OLED
Package Included:
1 xAutomatic Antenna Tuner

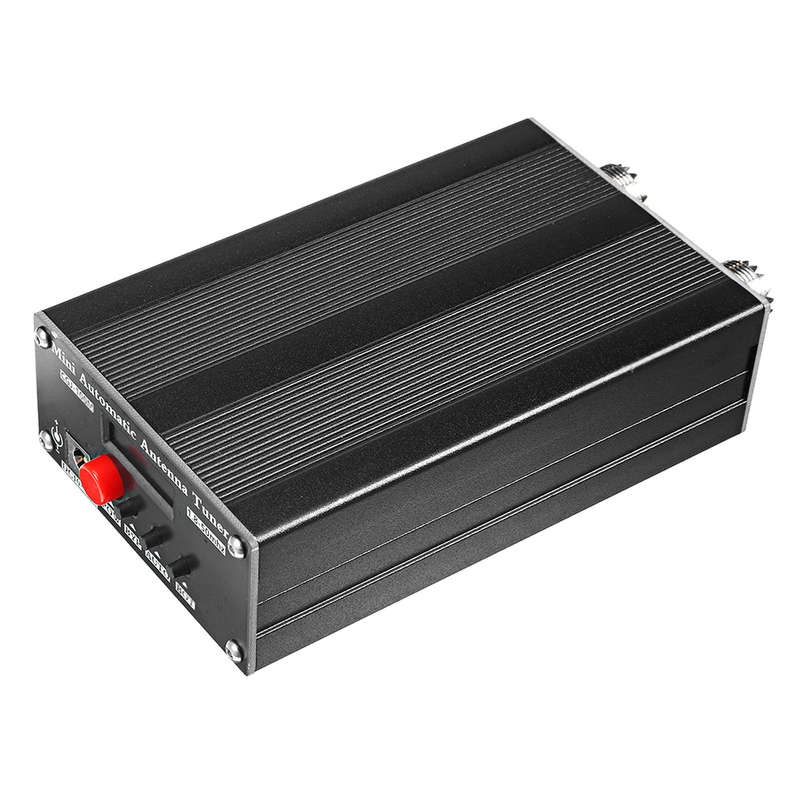

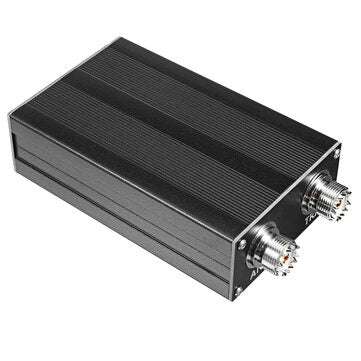

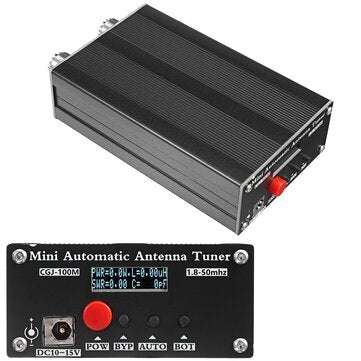

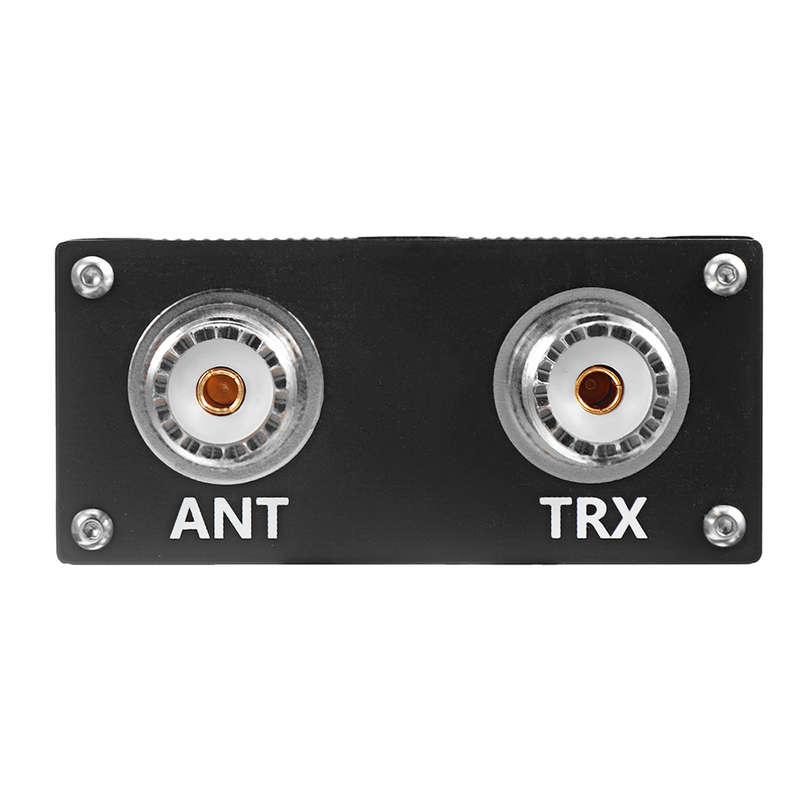

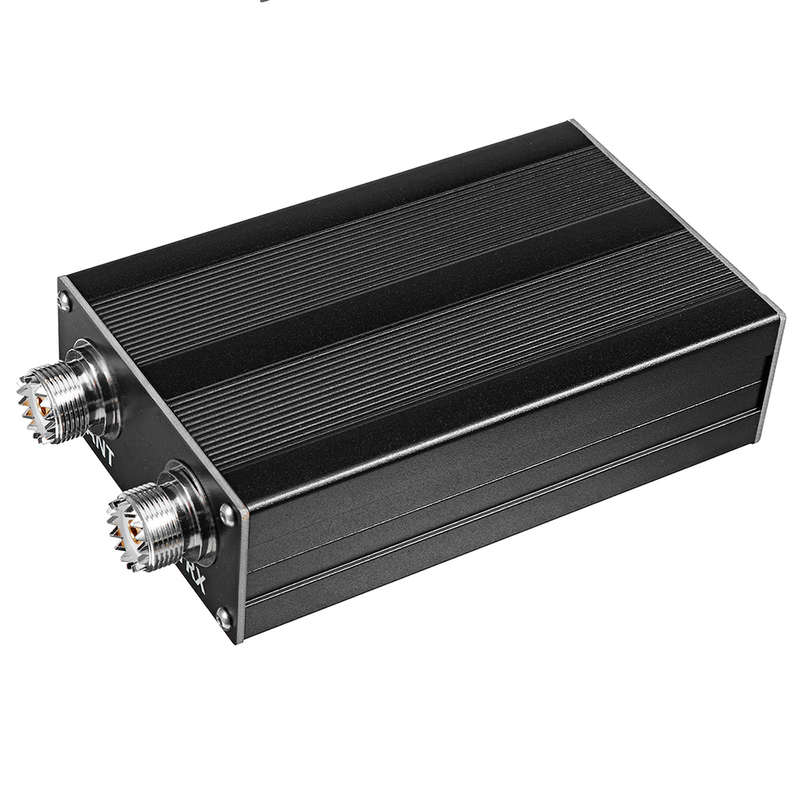

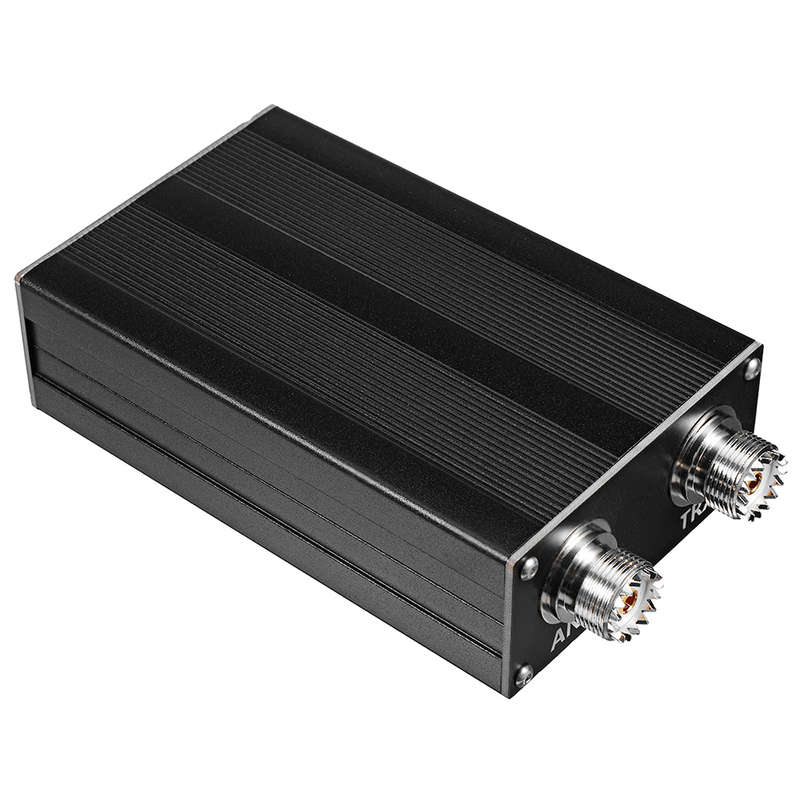

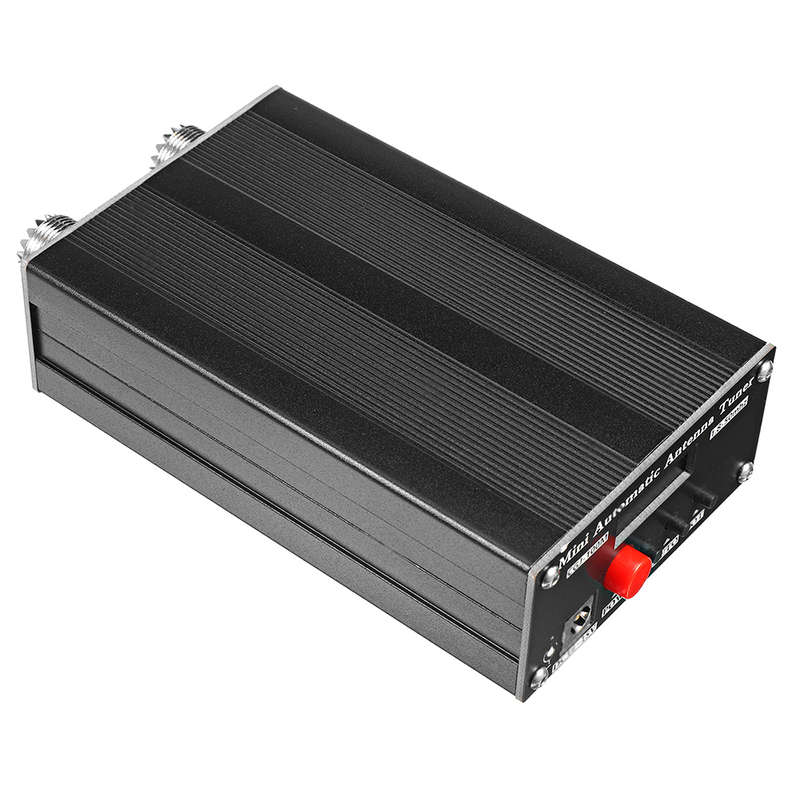

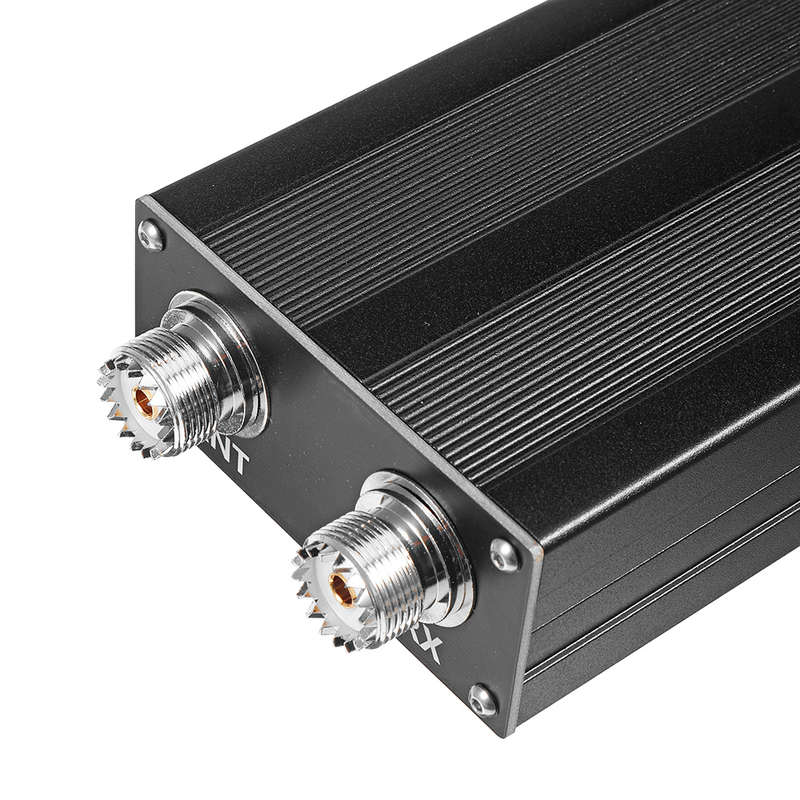

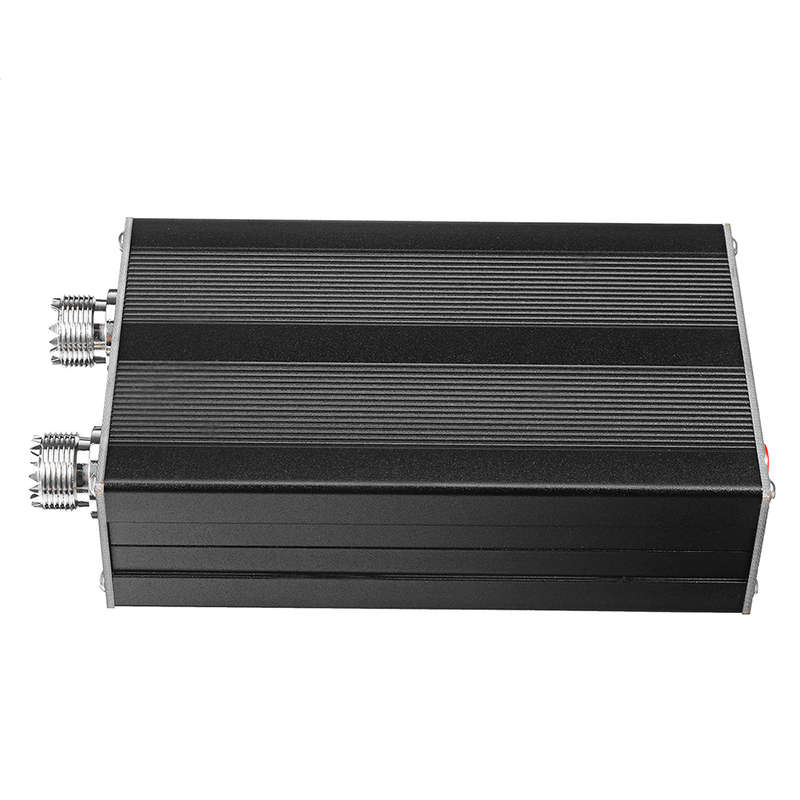

Details Picture:
