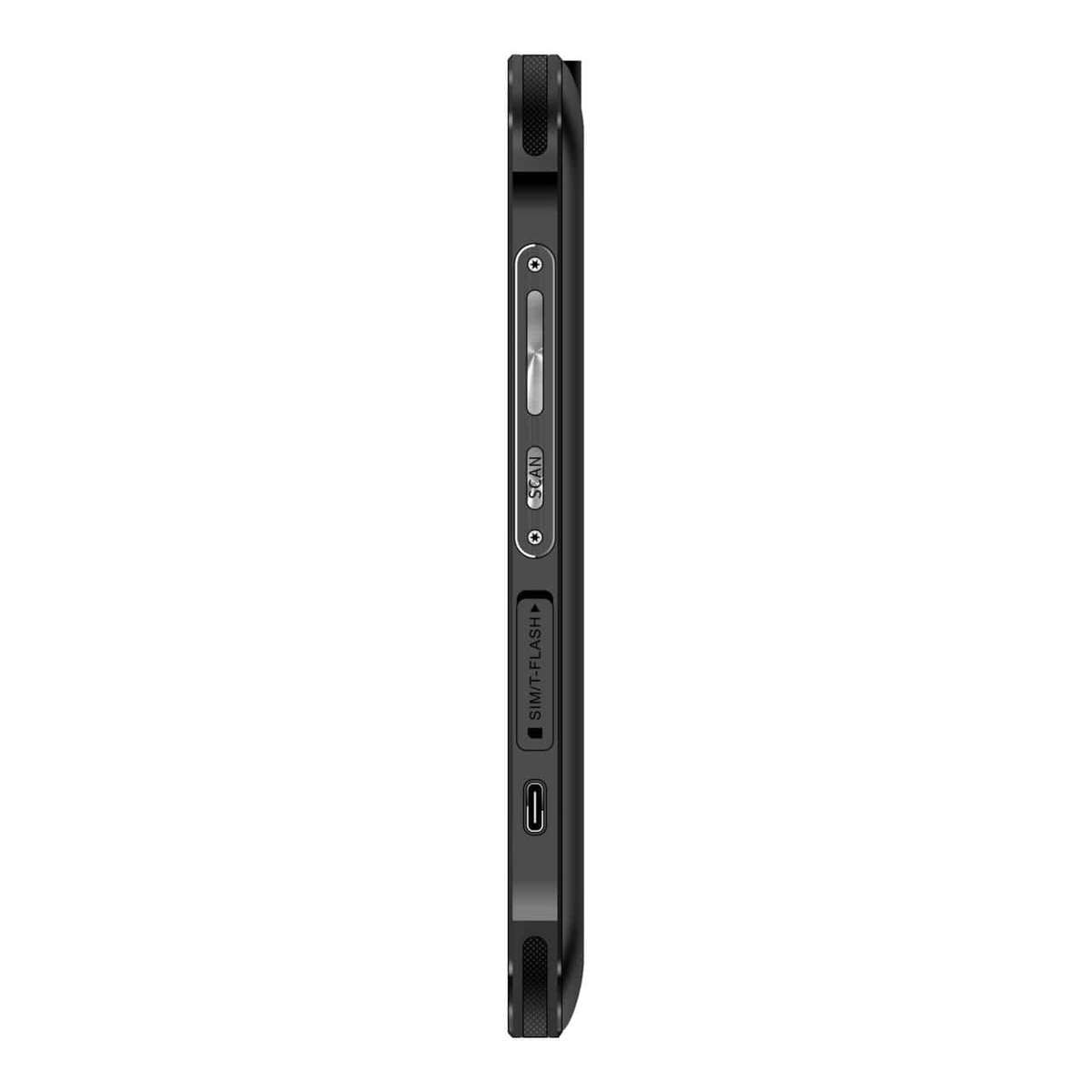

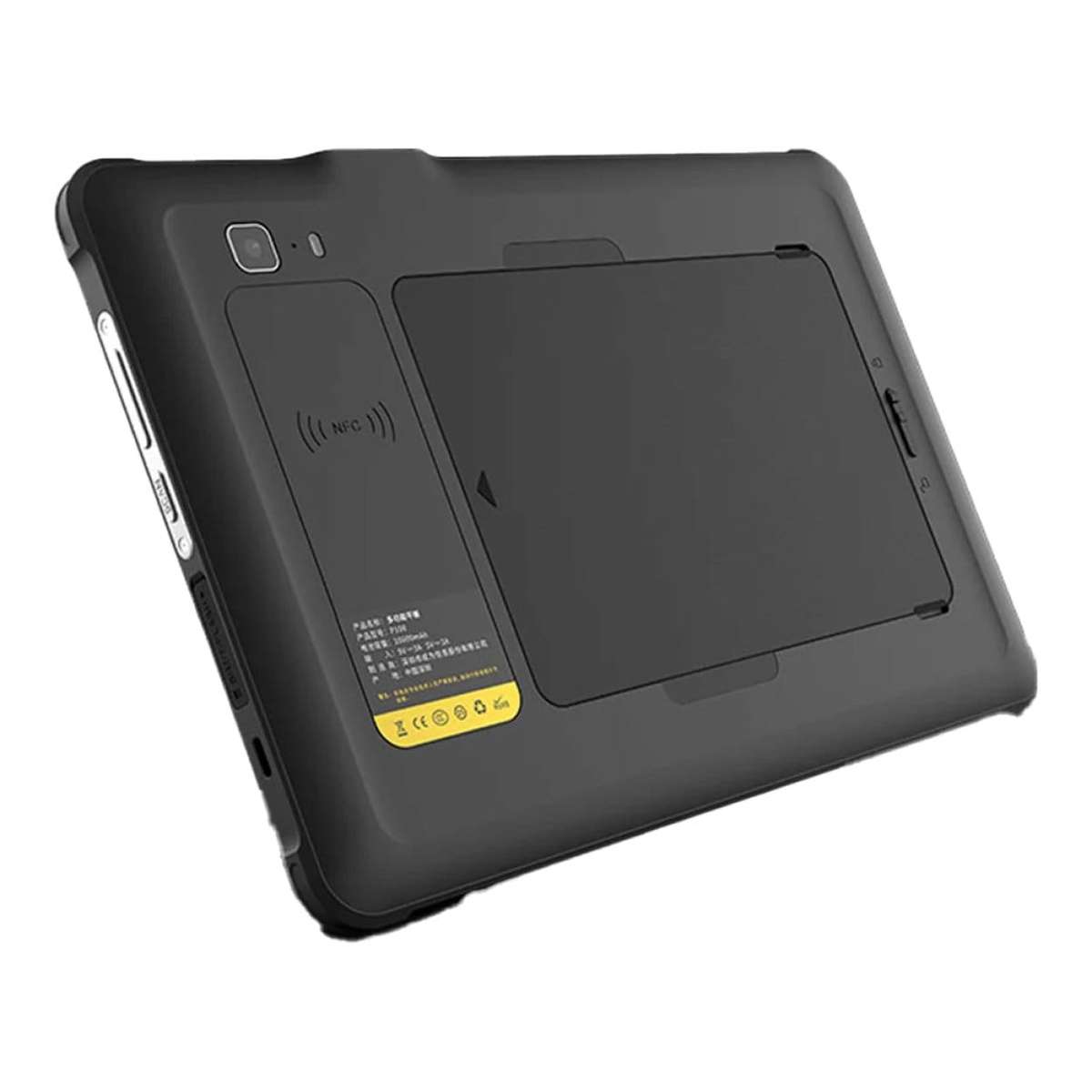

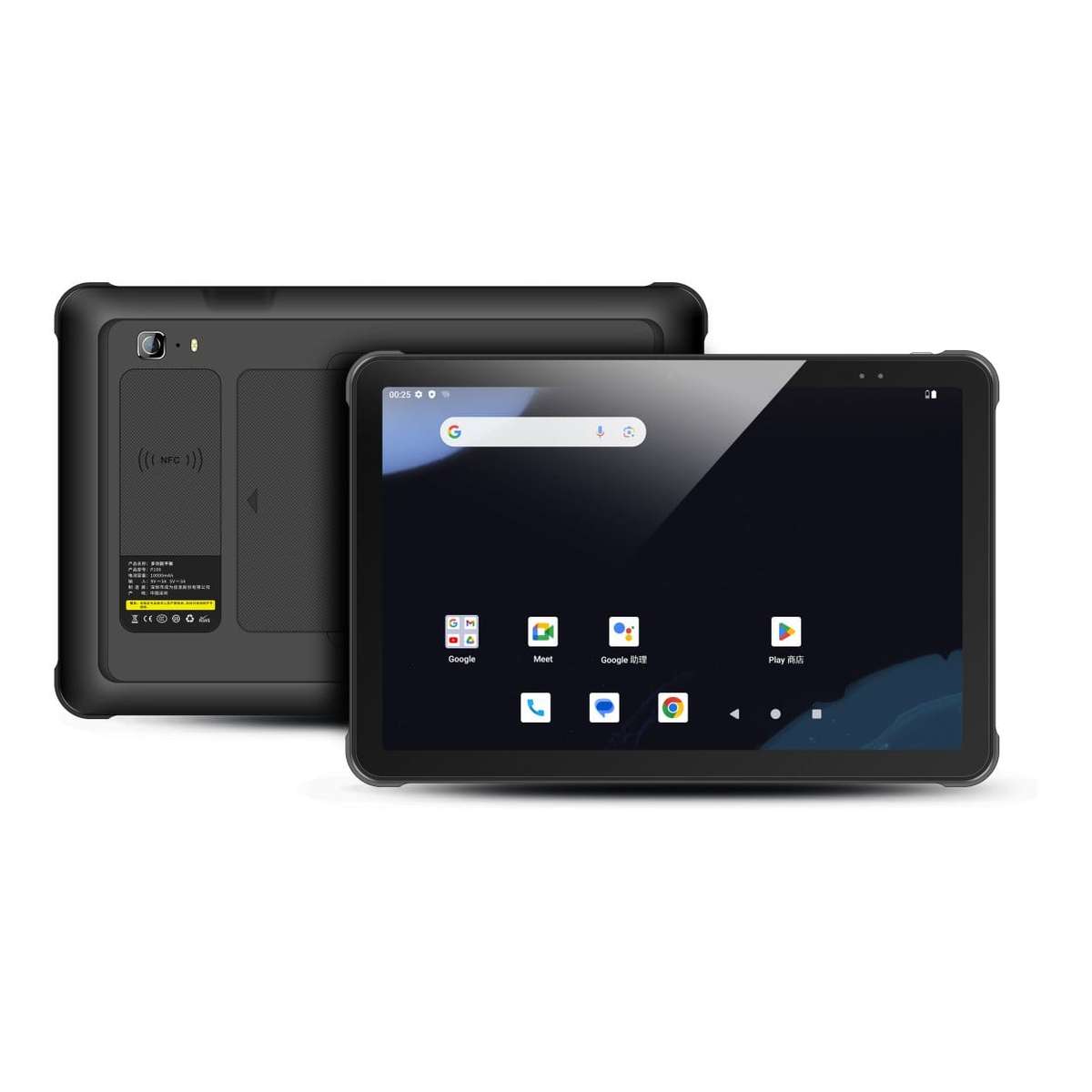

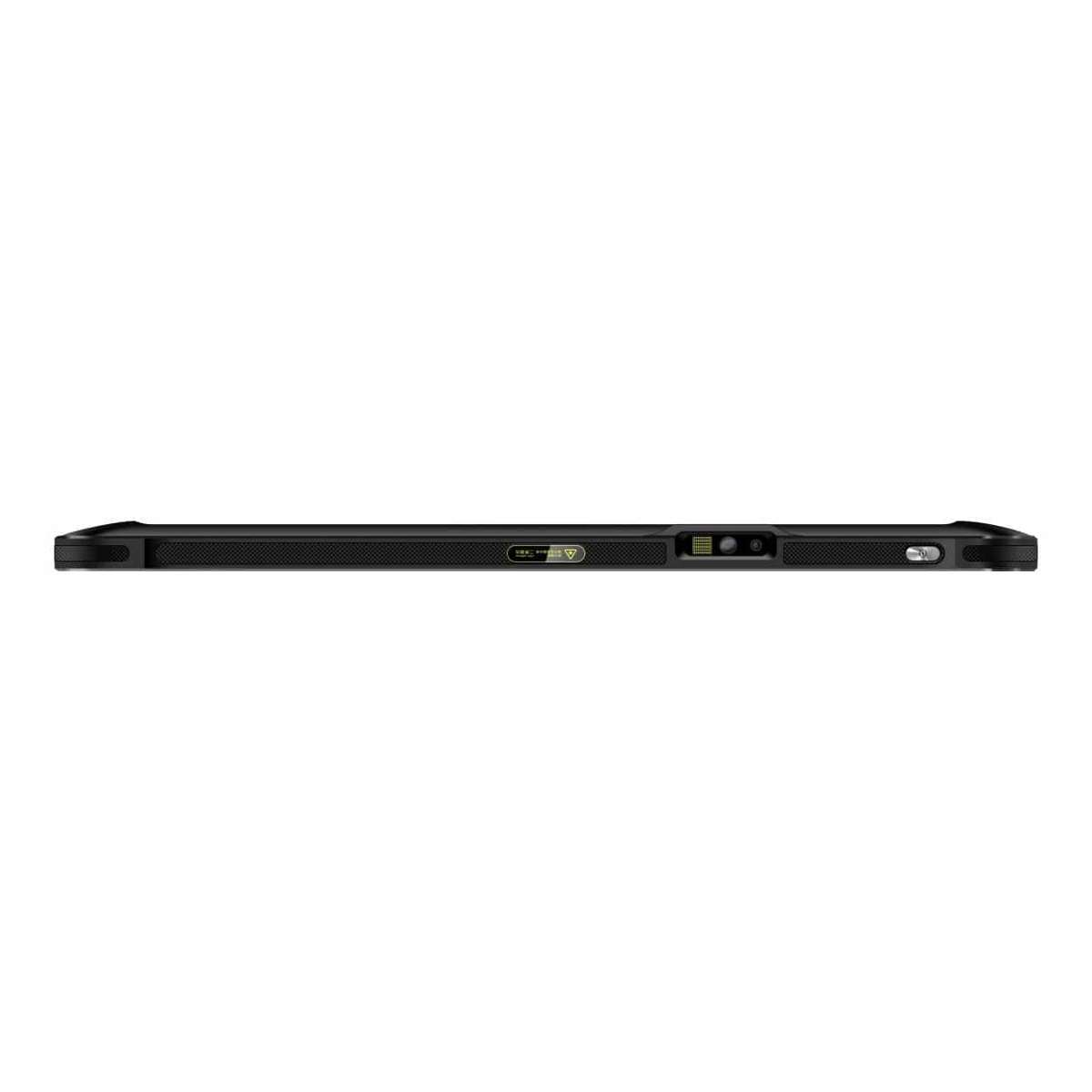

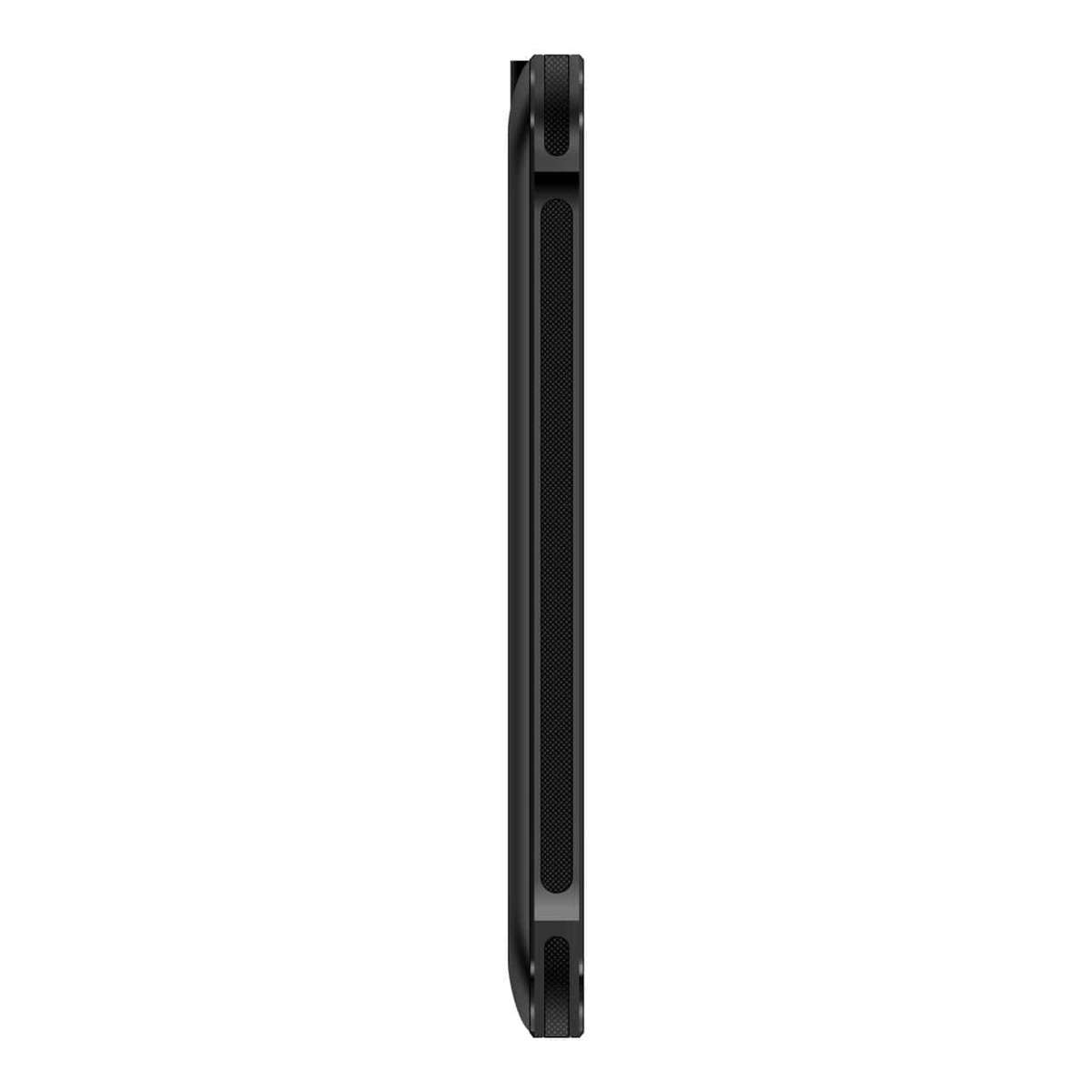

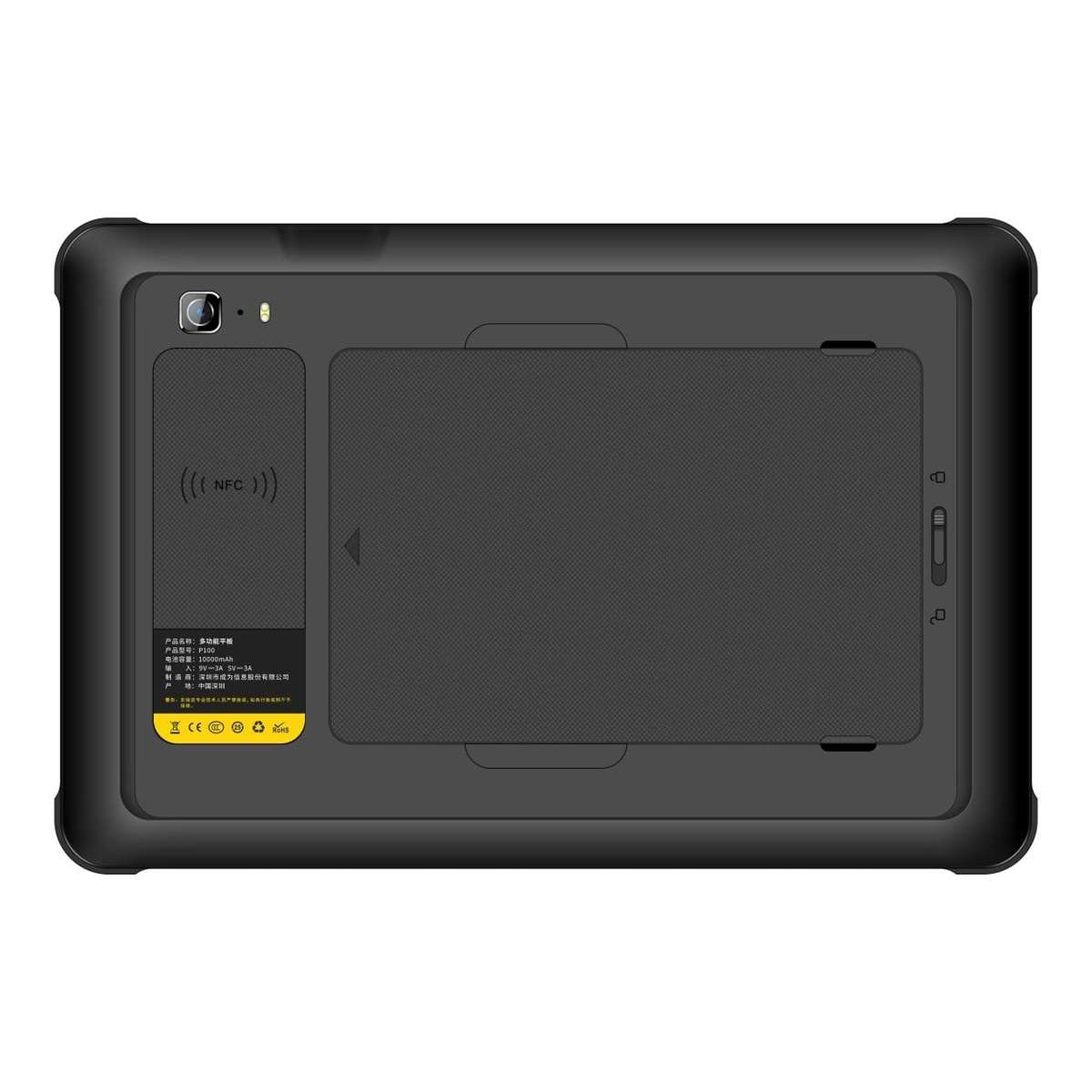

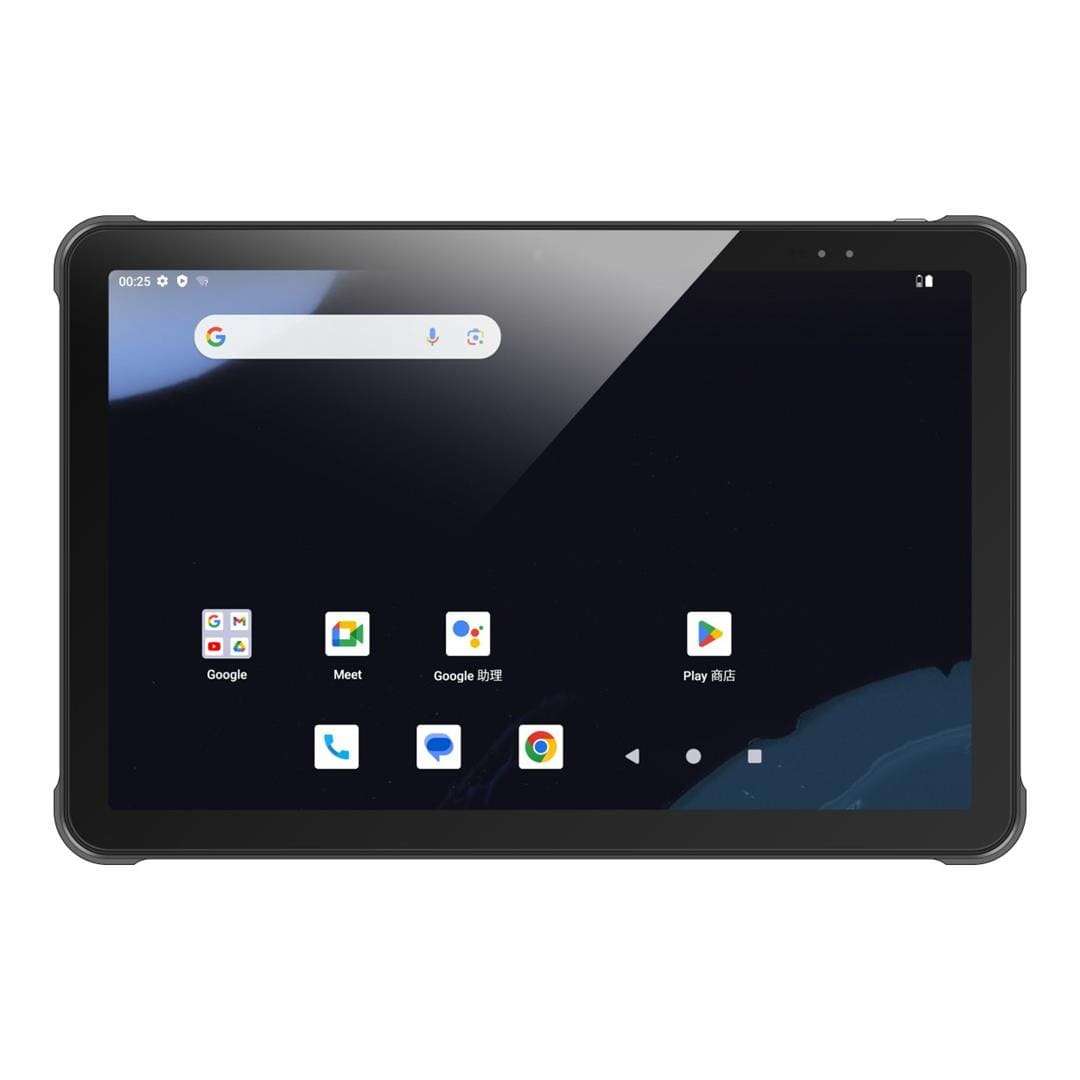

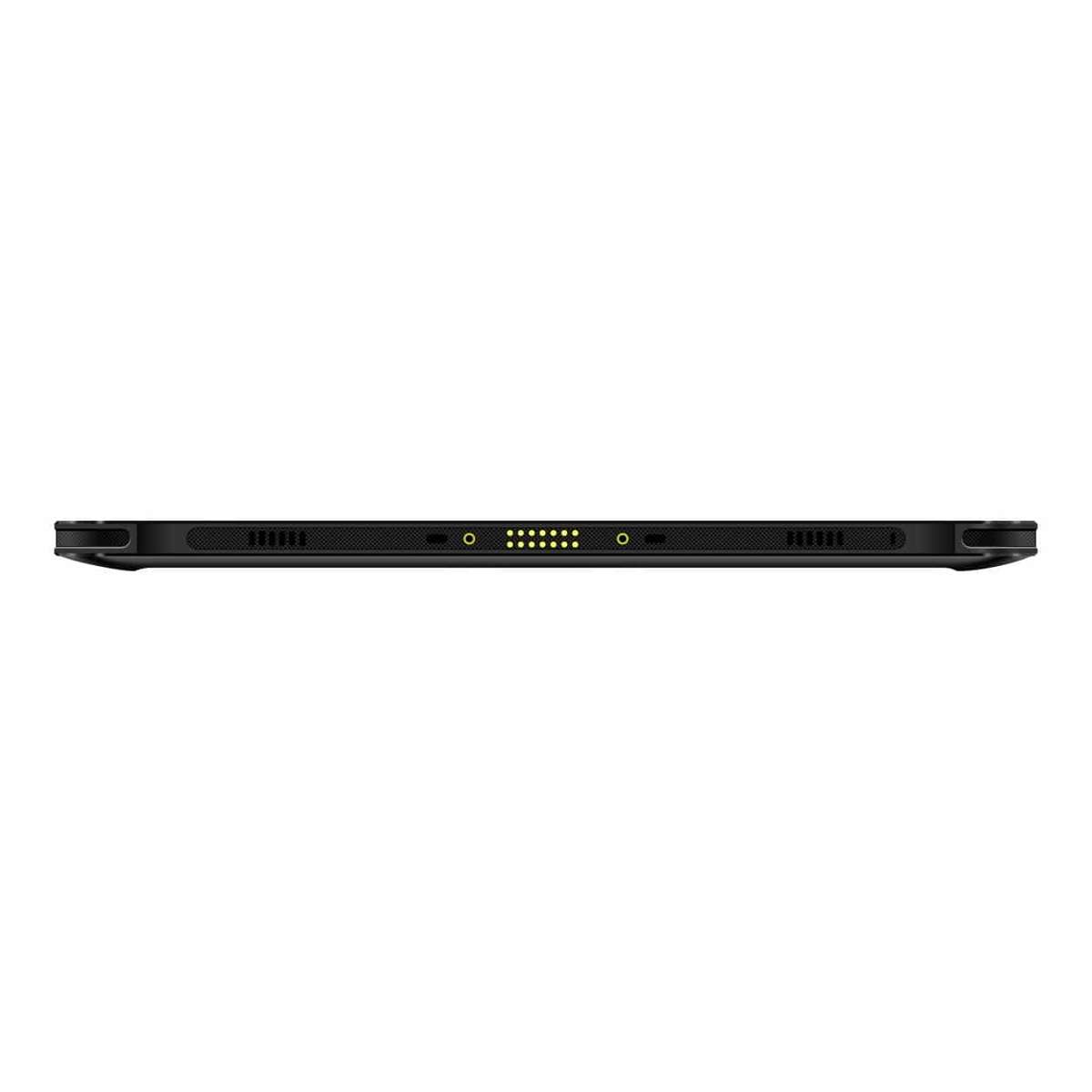

Chainway Android FHD 11-inch Tablet - Octa-core 2.6GHz 256GB ROM 8GB RAM 5G LTE Android 14 P10F4-NP-C2C8R8A14
The Chainway P100 is a cutting-edge 5G industrial tablet featuring a 10.95" high-brightness HD display and an optional 2.6GHz octa-core CPU for enhanced user experience and extended product lifecycle. The chipset integrates AI computing capabilities, unlocking the potential of artificial intelligence to improve the accuracy and efficiency of tasks like decoding, speech recognition, and image recognition. Its robust 10,000mAh removable battery ensures continuous operations, while Wi-Fi 6 with fast roaming and 2x2 MIMO antennas enables seamless data transmission.
Features:
- Octa-core 2.6GHz(Optional), AI Empowerment
- New 5G IoT Chip Platform, Hardware Support Until 2030
- Android 14 OS (AER)
- Wi-Fi 6, Fast Roaming, 2x2 MIMO Antenna
- 10.95-inch HD Display (1920x1200)
- Global Frequency Bands
- 10,000mAh Removable Battery with Embedded Smart Chip, Supporting 27W Fast Charging and Hot-swapping
- 1.2m / 4ft Drop Resistance
Functions
- Long-range Barcode Scanning
- NFC, PSAM, and More
- 13MP Rear Camera (Compatible with 16MP)
Technical Specifications:
Physical
Dimensions: 263.5 × 175.0 × 13.5 mm (Standard Version)
Weight: 802 g (Standard Version)
Touch Panel: 10.95" IPS, 1920 × 1200
Power: 10000 mAh Removable Main Battery with Meter, Supports Fast Charging
Notification: Sound, LED Indicator
Expansion Slot:
- 1 × PSAM Card Slot (Optional)
- 1 × Nano SIM Card Slot
- 1 × Nano SIM / TF Card Slot
- eSIM Compatible
Interfaces: USB 3.0 Type-C, OTG, Supports USB Type-C Digital Earphones
Audio: 2 Microphones, 2 Speakers
Keypad: - 1 × Scan Key
- 1 × Power Key
- 2 × Volume Keys (+/-)
- 2 × Virtual Keys
Sensors: - Gravity Sensor
- Light Sensor
- Proximity Sensor
- Gyroscope
- Geomagnetic Sensor
Communication
WLAN: IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz / 5 GHz Dual-Band, 2 × 2 MIMO Antennas
WWAN (Europe and Asia):
- 2G: GSM B2, B3, B5, B8; CDMA 1XEVDO BC0, BC1
- 3G: WCDMA B1, B2, B5, B8
- 4G: TDD-LTE B34, B38, B39, B40, B41 (2496—2690), B42, B43; FDD-LTE B1, B2, B3, B4, B5, B7, B8, B20, B28 Full, B66
- 5G: SA N1, N3, N5, N7, N8, N20, N28, N38, N41 (PC2), N66, N77, N78, N79
WWAN (America):
- 2G: GSM B2, B3, B5, B8; CDMA 1XEVDO BC0, BC1
- 3G: WCDMA B1, B2, B4, B5
- 4G: TDD-LTE B38, B41 (2496—2690); FDD-LTE B1, B2, B4, B5, B7, B12, B13, B17, B25, B26, B66, B71
- 5G: SA N2, N5, N7, N12, N13, N25, N26, N29, N38, N41, N48, N66, N70, N71, N77, N78
Bluetooth: Bluetooth 5.2, Supports Bluetooth Headsets
Vo-LTE: Supports Vo-LTE HD Video Voice Calls
GNSS: GPS/A-GPS, GLONASS, BeiDou, Galileo, Dual-Frequency Positioning (L1 + L5)
Development Environment
Operating System: Android 14
SDK: Chainway Software Development Kit
Language: Java
Tools: Eclipse, Android Studio
Performance
CPU:
- Octa-Core 2.4 GHz
- Octa-Core 2.6 GHz (Optional)
RAM + ROM: - 4 GB + 64 GB
- 8 GB + 256 GB (Optional)
Expansion: Supports Up to 512 GB Micro SD Card
Environmental
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 5% RH to 95% RH (Non-Condensing)
Drop Specification: MIL-STD-810H (SGS Tested), Multiple 1.2 m Drops to Concrete Across the Operating Temperature Range
Sealing: IP67 per IEC Sealing Specifications, IP68/IP69K Available Upon Request
ESD: ±15 kV Air Discharge, ±8 kV Conductive Discharge
Barcode Scanning
Scan Engine:
- Zebra SE4100
- Zebra SE55
- CM60
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR Code, Micro QR Code, Aztec, MaxiCode, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note: Barcode Scanning Function is Optional
UHF RFID
Engine: Based on Impinj E Series Chips
Frequency: 865—868 MHz, 920—925 MHz, 902—928 MHz (Custom-Designed for Frequency Band)
Impinj Gen2X: Supported
Protocol: EPCglobal Class 1 Gen 2 / ISO18000-63 RFID
Antenna: Circularly Polarized Antenna
Power: 0.5 W
Read Range: 3 m (With Impinj M750 Tag)
Note: Performance May Vary Depending on Tags and Environmental Conditions
Camera
Front Camera: 5 MP
Rear Camera: 13 MP Autofocus with Flash, Optional 16 MP
NFC
Frequency: 13.56 MHz
Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips: M1 Card (S50, S70), CPU Card, NFC Tags, etc.
Range: 2—4 cm
