Physical Characteristics | |
Dimensions | 213mm x 87mm x 151mm/ 8.39 x 3.43 x 5.94in |
Weight | 721g/ 25.43oz |
Display | 4" WVGA (480*800), 16.7M colors |
Touch Panel | Rugged capacitive touch panel |

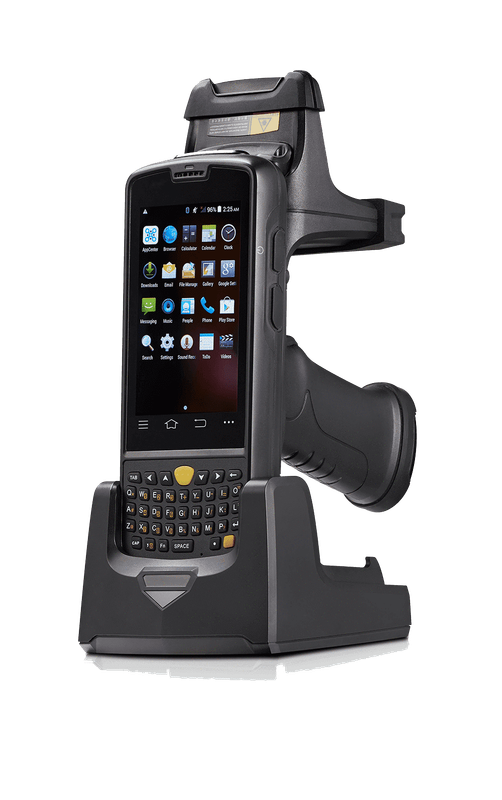

Power | Main battery: Li-ion, 3200mAh Pistol battery: Li-ion, 5200mAh |
Expansion Slot | 2 PSAM slots (maximum), 1 SIM, 1 MicroSD(TF) slot |
Interfaces | USB Micro-B |
Audio | 0.5W speaker, build-in microphone |
Keypad | Numeric / Qwerty |
Sensors | Light sensor, proximity sensor |
Performance | |
CPU1 | Qualcomm 1.3 GHz quad-core |
RAM+ROM1 | 2GB+16GB |
CPU2 | Qualcomm 1 GHz quad-core |
RAM+ROM2 | 1GB+8GB |
Expansion | Supports up to 128 GB Micro SD card |
Communication | |
WLAN | IEEE802.11 a/b/g/n |
WWAN (Europe) | 2G: GPRS(900/1800MHz) 3G: WCDMA B1 B8 4G: FDD-LTE:B1 B3 B7 B8 B20 |
WWAN (America) | 2G: GPRS(850/1900MHz) 3G: WCDMA B1 B2 B5 4G: FDD-LTE:B2 B4 B7 B17 |
WWAN (China) | 2G: GPRS(850/900/1800MHz) 3G: WCDMA:B1; CDMA EVDO: EVDO Rev.A800MHz;TD-SCDMA: B34, B39 4G: TDD-LTE: B38/B39/B40/B41;FDD-LTE: B1/B3 |
Bluetooth | Bluetooth 4.0 |
GPS | GPS, AGPS |
UHF RFID | |
Engine | CM2000-1 module based on Impinj Indy R2000 |
Frequency | 865-868MHz / 920-925MHz / 902-928MHz |
Protocol | EPC C1 GEN2 / ISO18000-6C |
Antenna | Linear polarization (1.8dBi) Circular polarization (4dBi) |
Power | 1W (30dBm, +5dBm to +30dBm adjustable) |
R/W ranges | 6m (linear polarization); 10m (circular polarization) |
Reading rates (circular polarization) | >200 tags/s (circular polarization) |
Note | *Ranges and rates depend on tags and environment |
InfraRed | |
Wavelength | 940nm |
Frequency | 38kHz |
