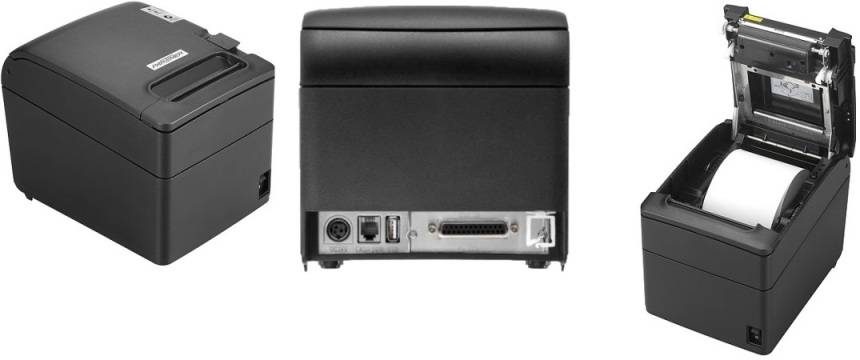

Champtek Partner RP600S Printer: Black, High Performance, 80mm Thermal Printer, Auto Cutter, Serial

Partner RP600S Printer: Black, High Performance, 80mm Thermal Printer, Auto Cutter, Serial & USB 2.0 Interface, 24V Power Adapter Retail Box 1 year Limit warranty

Product Overview
The Partner RP-600 is a fast thermal printer solution for retail and hospitality. With a paper width of 58 to 80 mm and a printing speed up to 230 mm/sec it is rather flexible.The quality of graphic printings is improved by gray scale printing. Furthermore the print direction is rotatable whereby the fonts can be printed in different directions (right and up) which makes the print design unique and helpful for the customer to read the receipt. All types of international characters are available, which can be enlarged 1-6 times horizontally and vertically. making retail shops and supermarket printings individual and recognizable. Because of the wide range of interfaces and drivers quick and easy installation is guaranteed and simple integration to POS environments is provided.

Features
¿ Paper saving option
¿ Gray scale printing
¿ Rotatable print direction
¿ Integrated wall mounting
¿ (allows multiple placement options)
¿ Printing speed up to 230 mm/s
¿ (text & graphics)
¿ Auto cutter (partial)
¿ Paper sensor (near/end

Specifications
¿ Printing Method-Direct thermal
¿ Printing Speed-230 mm/sec in text printing; 150 mm/sec in graphic printing
¿ Dot Density-180 dpi
¿ Dot Pitch-0.141 mm
¿ Effective Printing-Width: 72 mm max.
¿ Character per Line-Font A: (12 x 24)
¿ 42 columns (80mm) 30 columns (58mm)
¿ Font B: (9 x 17) 56 columns
¿ 56 columns (80 mm) 40 columns (58 mm)
¿ Paper Type: Thermal paper, black mark
¿ Width: 57.5~82.5 mm
¿ Print width: 72 mm max.
¿ Roll Ø: 83 mm
¿ Roll core inner Ø: 12.5 mm +- 0.5 mm
¿ Sensor Paper end, paper near end, cover open, print head temperatur, printer voltage detection
¿ I/O Interface Standard: USB 2.0 & Cash Drawer (2 Signals), support virtual COM port driver
¿ interfaces: Serial, USB
¿ Power supply 100~240VAC, Input,DC+24V output
¿ Dimension 143(W) x 190(D) x 143(H)
¿ Weight 2.1 kg

Environment Operating Storage
¿ Temperature 5°C~45°C -40°C~60°C
¿ Humidity 20%~90% 20%~93%
¿ Auto Cutter Type Guillotine
¿ Cutting Method Full cut, partial cut, tear-off
