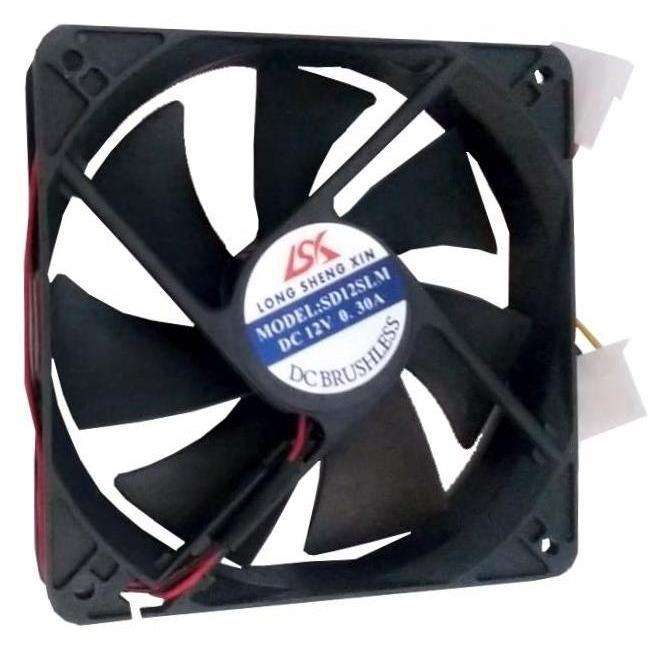

CHASSIS FAN_ 120MM BLACK

CHASSIS FAN_ 120MM BLACK - 12CMFAN-R

Refurbished - Damaged Package

 DC FAN

Chassis FAN, 120MM, BLACK

Specification

Measurement: 120 x 120 x 25mm

Rated Voltage_ 12 DCV

Operating Voltage_ 3.5 - 16 DCV

Starting Voltage_ 3 DCV (on/off)

Rated Current_ 0.25±0.01 Amp

Input Power : 3 Watts

Rated Speed_ 1400 RPM±10% (after running3 - 5minutes)

Noise Level_ 29 dB(A)

Max. Air Flow_ 28 CFM

Max. Static Pressure_ 4.2 mmAq

Life Expectancy : 20000 Hours (at 25 65%R.H.)

Operating Temperature_ -10 - +85 (66%RH)

Storage Temperature_ -40 -+70 (66%RH)

Weight: Gram

FAN HOUSING_ PBT 85%+FIBER15%

FAN BLADE_ PBT 80%+FIBER20%

INSULATOR FRAME_ PBT 100%

SHAFT: STAINLESS STEEL

BEARING: SLEEVE

PLASTIC MAGNET_ STRONTIUM FERRITE

ENAMELED WIRE_ 2 UEW

SILICON STEEL STRIP_ H23

HALL IC : 276

LEAD WIRES_ 2468 26AWG L-300mm

TERMINAL: 4P

3 Months Warranty
