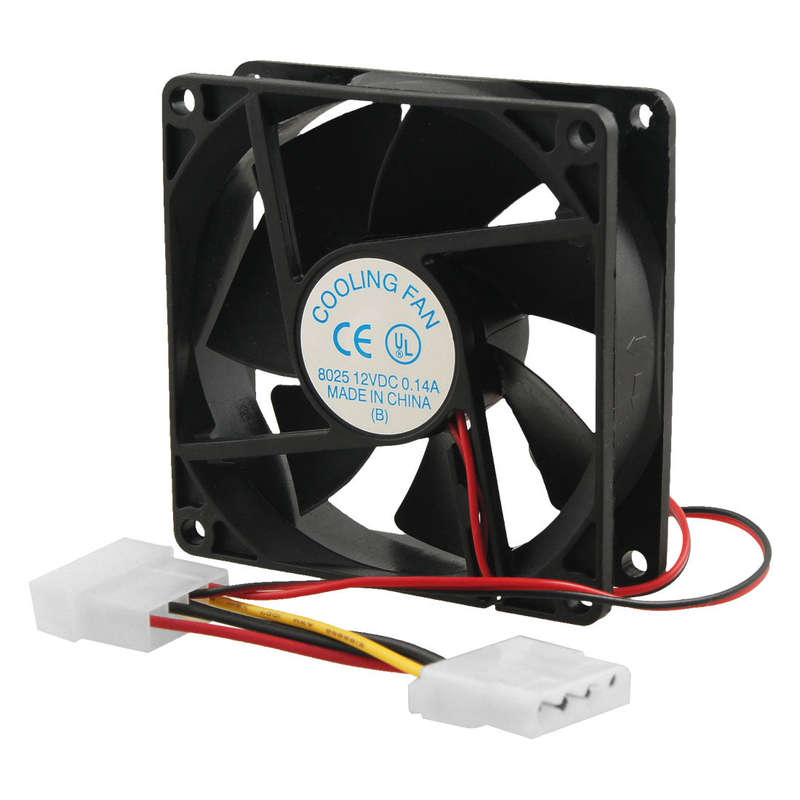

CHASSIS FAN 80MM BLACK

CHASSIS FAN 80MM BLACK - 8CMFAN DC FAN CHASSIS FAN 80MM BLACK Specification Measurement_ 80 x 80 x 25mm Rated Voltage_ 12 DCV

Operating Voltage_ 3.5 - 16 DCV

Starting Voltage_ 3 DCV (on/off)

Rated Current_ 0.20±0.01 Amp

Input Power_ 24 Watts

Rated Speed_ 1800 RPM±10% (after running3-5minutes)

Noise Level_ 35 dB(A)

Max. Air Flow_ 28 CFM

Max. Static Pressure_ 5.6 mmAq

Life Expectancy_ 30000 Hours (at 25? 65%R.H.)

Operating Temperature_ -10 - +85 ?(66%RH)

Storage Temperature_ -40-+70 ?(66%RH) Weight_ Gram

FAN HOUSING_ PBT 85%+FIBER15%

FAN BLADE_ PBT 80%+FIBER20%

INSULATOR FRAME_ PBT 100%

SHAFT: STAINLESS STEEL

BEARING: BALL

PLASTIC MAGNET_ STRONTIUM FERRITE

ENAMELED WIRE_ 2 UEW

SILICON STEEL STRIP_ H23

HALL IC_ CC6412

LEAD WIRES_ 2468 26AWG L-165mm
